56125 (7-25) - Toro Rear-Engine Riding Mower (SN: 006000001 - 006999999) (1986) REWIND STARTER NO. 590420A Parts Diagram

Rear-Engine Riding Mower

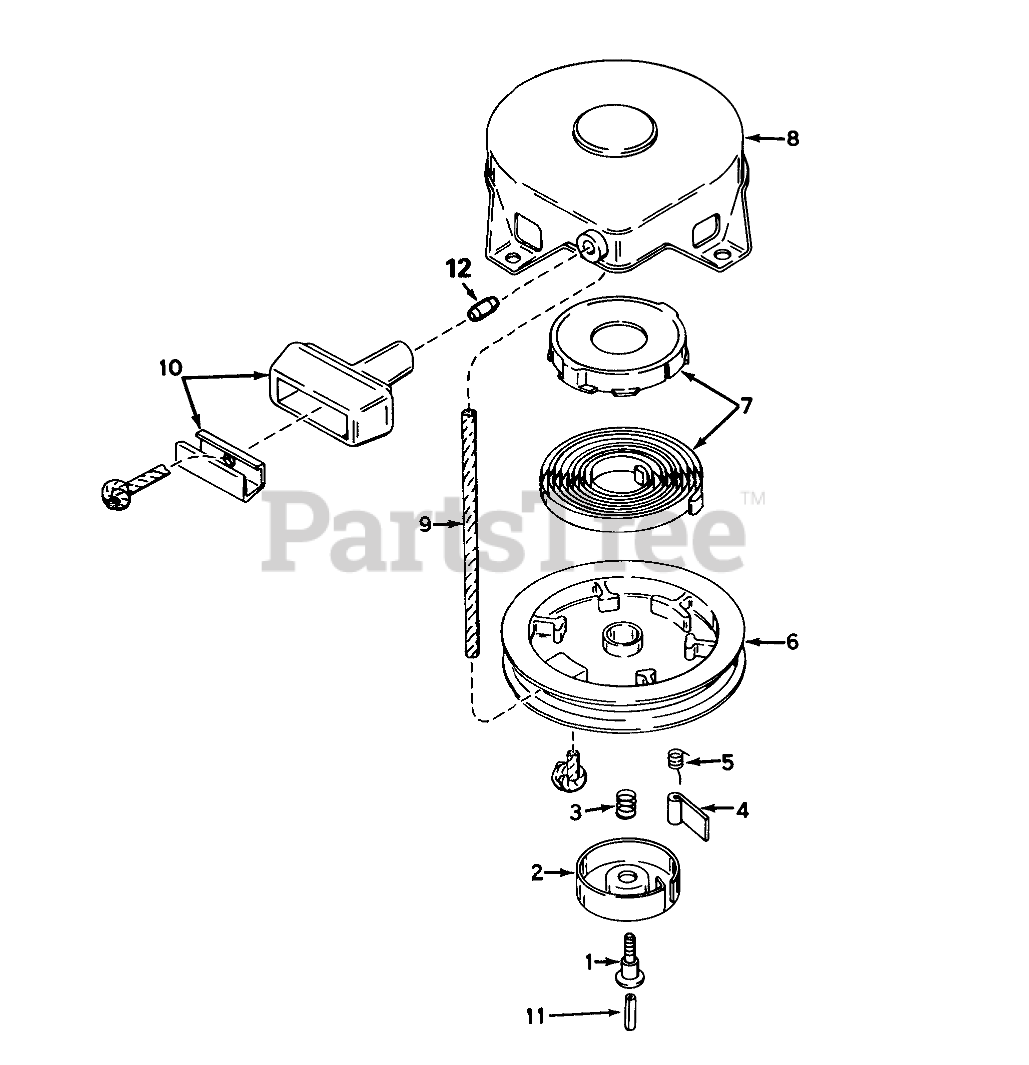

REWIND STARTER NO. 590420A Parts Diagram

  • Title

$3.99

$

In Stock, only 1 left!

0

2

Tecumseh 590410

Retainer

$7.99

$

In Stock, only 2 left!

0

3

Tecumseh 590411

Spring-Brake

$3.49

$

In Stock, only 3 left!

0

4

Tecumseh 590148

Dog-Starter

$3.49

$

In Stock, Qty 8

0

5

Tecumseh 590412

Spring-Dog

$8.49

$

In Stock, only 2 left!

0

6

$29.99

$

In Stock, only 2 left!

0

7

Tecumseh 590414

Spring & Keeper Assy

$14.99

$

Usually ships in 3-12 days

0

8

Tecumseh 590536

Housing Assembly-Starter (Incl. #1)

$

$

Not available

9

Tecumseh 590535

Rope-Starter (98 cut to length)

$9.49

$

In Stock, Qty 15

0

10

Tecumseh 590387

Assy., Starter

$3.99

$

In Stock, only 2 left!

0

11

Tecumseh 590459

Centering

$

$

Not available

12

Tecumseh 34985

Retainer-Starter Rope
(Superseded to 36412)

$1.49

$

Usually ships in 3-12 days

0
