56125 (7-25) - Toro Rear-Engine Riding Mower (SN: 006000001 - 006999999) (1986) MOWER HOUSING ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

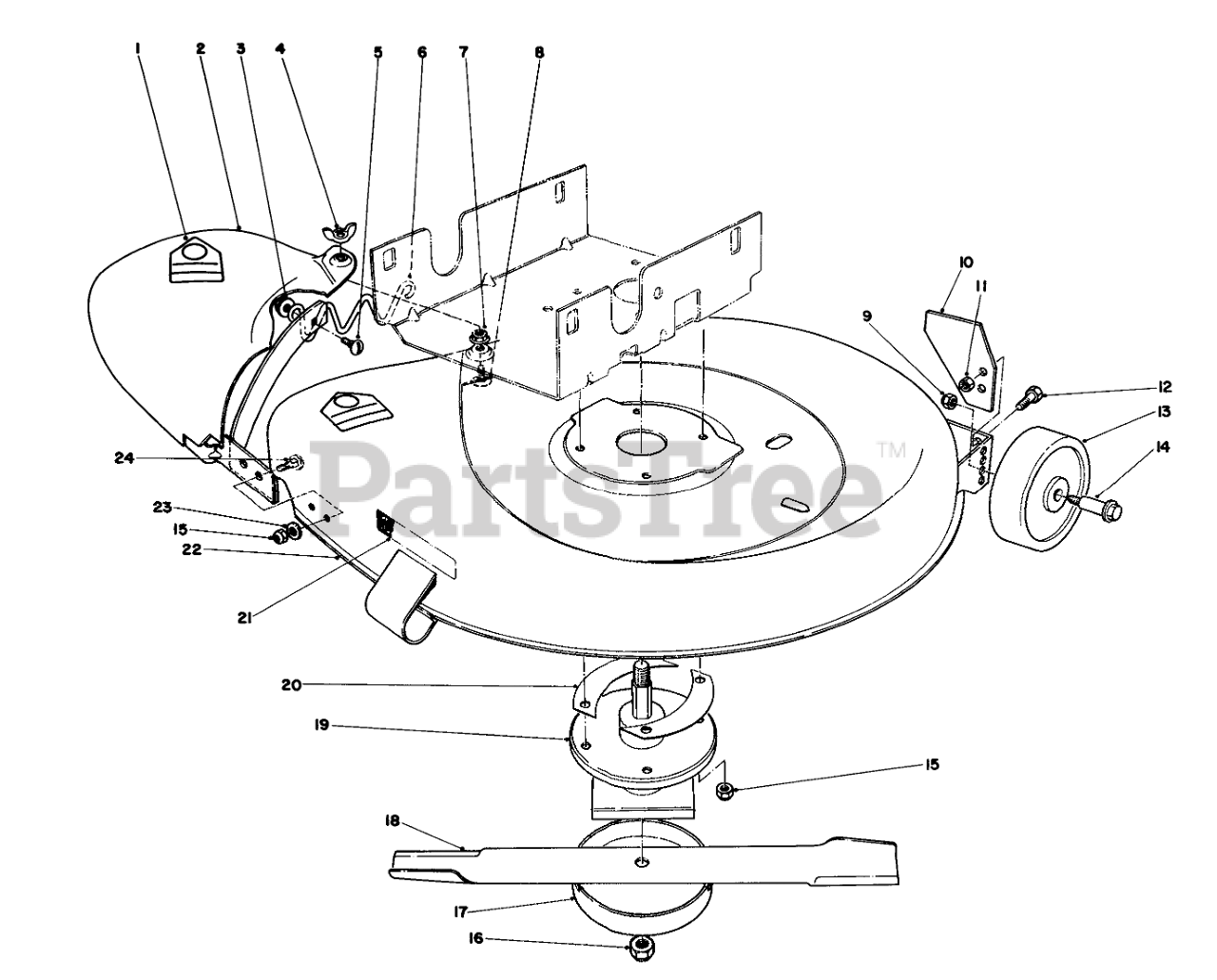

MOWER HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

2

Toro 24-6730

DEFLECTOR WA R
(Superseded to 24-6730-01)

$

$

Not available

3

Toro 32128-10

NUT-LOCK, HHF

$0.99

$

In Stock, Qty 20+

0

4

Toro 3-2625

Wing Nut

$

$

Not available

5

Toro 3229-22

SCREW-CARRIAGE
(Superseded to 3229-11)

$1.49

$

In Stock, Qty 20+

0

6

Toro 44-7370

FOOT GUARD BRKT

$

$

Not available

7

Toro 3290-147

PAL NUT

$

$

Not available

8

Toro 26-0430

Carriage Bolt

$

$

Not available

9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 39-6500

Deck Stop

$

$

Not available

11

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

12

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

13

Toro 29-6010

DECK WHEEL

$

$

Not available

14

Toro 56-6590

BOLT-WHEEL
(Superseded to 136-7198)

$1.99

$

In Stock, Qty 20+

0

15

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 11

0

16

Toro 17-0980

Nut

$11.99

$

In Stock, only 4 left!

0

17

Toro 7-3522

Cup
(Superseded to 92-6313)

$53.99

$

In Stock, only 1 left!

0

18

Toro 26-8060

Blade
(Superseded to 26-8060-03)

$56.99

$

Usually ships in 3-6 days

0

19

Toro 19-2140

Mower Spindle

$

$

Not available

20

Toro 47-5400

Shim-Deck Spindle

$

$

Not available

21

Toro 26-4820

Decal-Deck Inst.

$

$

Not available

22

Toro 24-6700

HOUSING WA R

$

$

Not available

23

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0
