56125 (7-25) - Toro Rear-Engine Riding Mower (SN: 006000001 - 006999999) (1986) BLADE DRIVE ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

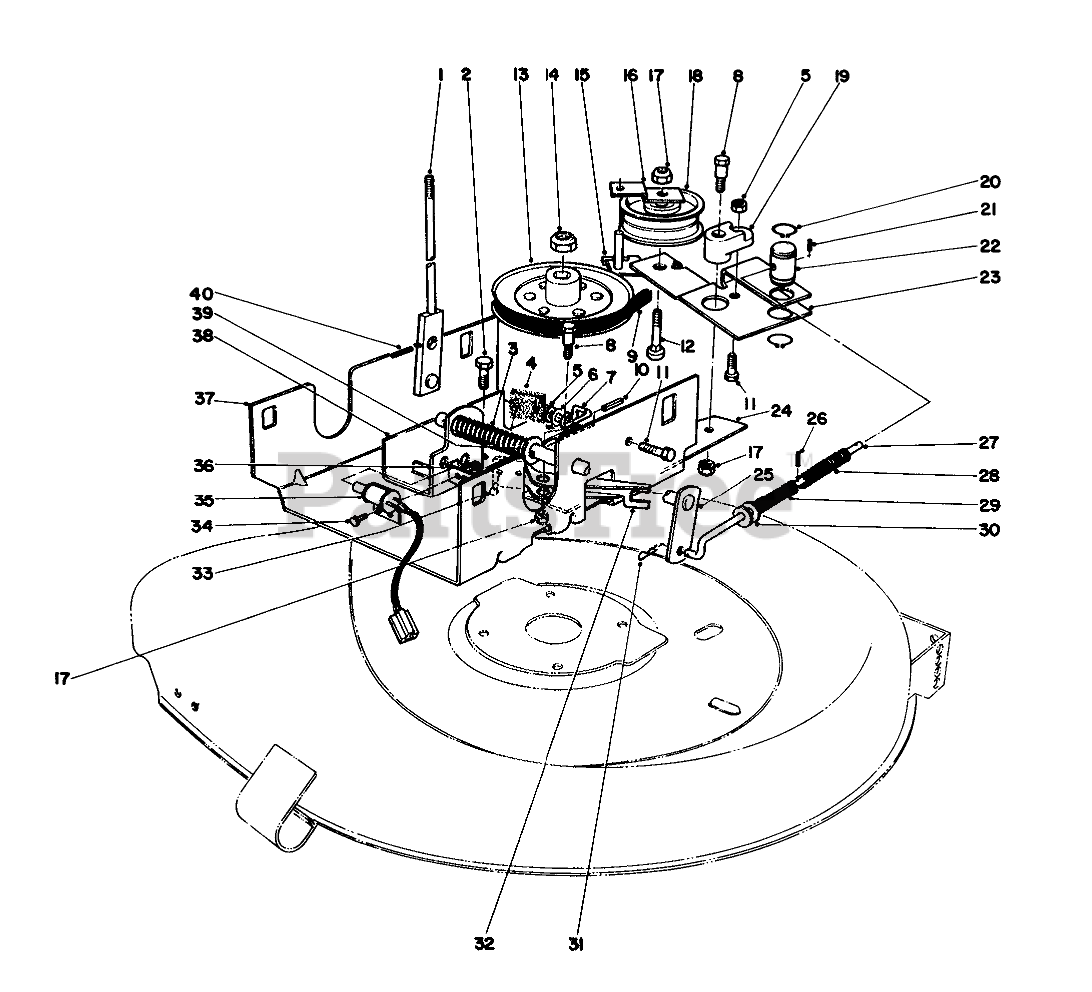

BLADE DRIVE ASSEMBLY Parts Diagram

  • Title
1

Toro 42-5320

Lever-Deck Engagement
(Superseded to 26-4460)

$

$

Not available

2

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 19-1930

COMP SPRING O

$

$

Not available

4

Toro 56-9830

PAD-BRAKE

$33.99

$

Usually ships in 3-6 days

0

5

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

6

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 56-9860

BELT GUIDE

$

$

Not available

8

Toro 7-0846

SHOULDER BOLT

$

$

Not available

9

Toro 26-2770

V-BELT

$38.99

$

Usually ships in 3-6 days

0

10

Toro 32121-45

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

11

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Toro 3231-33

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

13

Toro 56-9930

DECK PULLEY R

$

$

Not available

14

$11.99

$

In Stock, only 4 left!

0

15

Toro 56-9900

Retainer-Belt

$

$

Not available

16

Toro 56-9850

BELT RETAINER UPPER

$

$

Not available

17

Toro 3296-44

NUT-LOCK, NI

$3.49

$

Usually ships in 3-6 days

0

18

Toro 56-9870

PULLEY-IDLER

$51.99

$

In Stock, only 1 left!

0

19

Toro 56-9950

BUSHING

$

$

Not available

20

Toro 32120-93

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

21

Toro 32121-73

PIN-ROLL

$0.99

$

Usually ships in 3-6 days

0

22

Toro 26-2580

Pin-Pivot

$

$

Not available

23

Toro 56-9880

Arm-Idler

$

$

Not available

24

Toro 56-9940

Bracket-Idler Mounting

$

$

Not available

25

Toro 17-9960

Linkage

$

$

Not available

26

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

27

Toro 26-5500

BLADE ENGAGE ROD

$

$

Not available

28

Toro 26-4800

Spring Deck Idler

$

$

Not available

29

Toro 26-4810

Spring Deck Brake

$

$

Not available

30

Toro 5-1350

WASHER
(Superseded to 5-4460)

$7.99

$

In Stock, Qty 6

0

31

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

32

Toro 56-9820

Blade Brake (Incl. Ref. #4 & 33)

$

$

Not available

33

Toro 3295-25

Rivet

$

$

Not available

34

$0.99

$

In Stock, Qty 10

0

35

Toro 28-4450

DECK INTERLOCK SWITCH

$

$

Not available

36

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, only 3 left!

0

37

Toro 56-9970

Channel-Height Adjustment

$

$

Not available

38

Toro 57-0930

Mounting Bracket-Blade

$

$

Not available

39

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

40

Toro 3284-5

PIN-SPIRAL

$

$

Not available
