56125 (7-25) - Toro Rear-Engine Riding Mower (SN: 005000001 - 005999999) (1985) DIFFERENTIAL ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

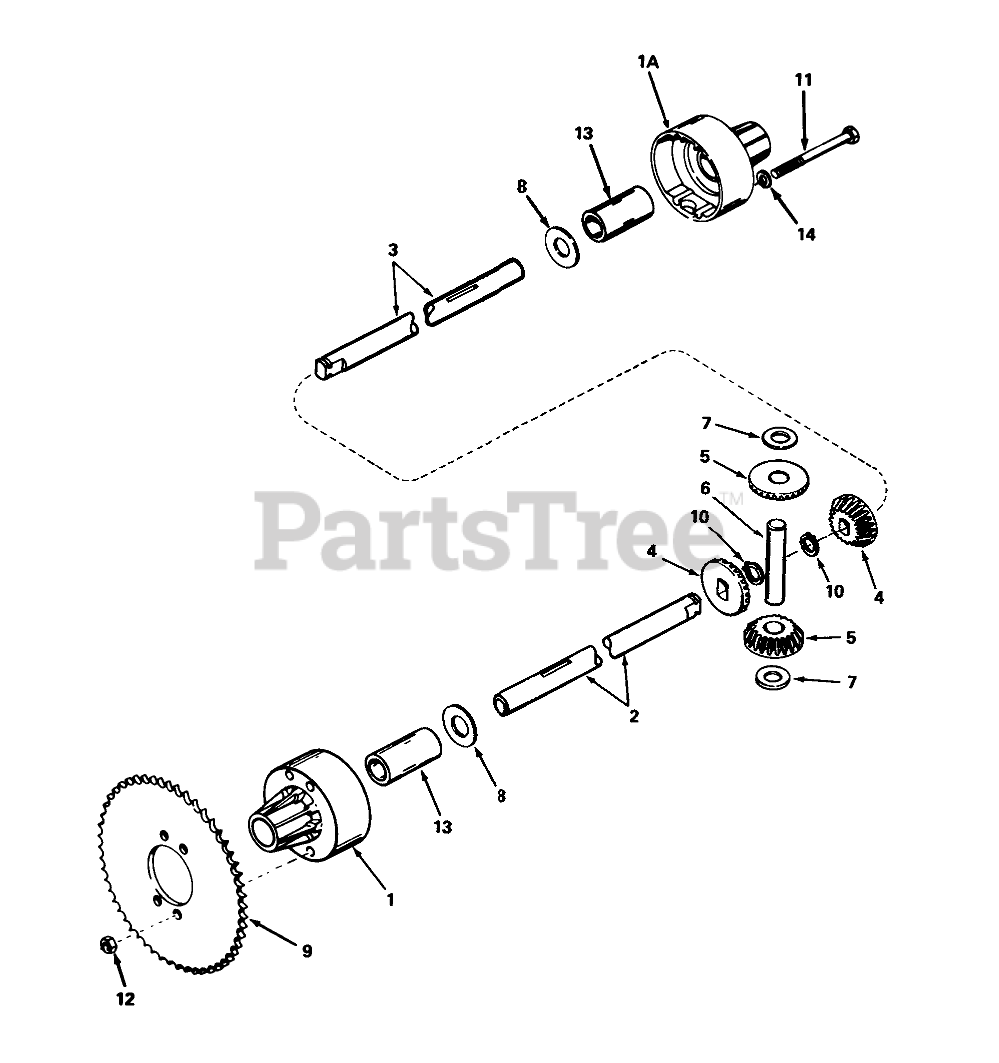

DIFFERENTIAL ASSEMBLY Parts Diagram

  • Title

1

Toro 774344

Housing, Differential Carrier (Incl. Ref. #13)

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

1A

Toro 774345

Housing, Differential Carrier (Incl. Ref. #13)

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

2

Toro 774476

Axle (9-1/8" Long)

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

3

Toro 774477

Axle (18-5/8" Long)

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

4

Toro 778067

Bevel Gear

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

5

Toro 778068

Gear Pinion

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

6

Toro 786040

Pin Drive

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

7

Toro 780096

Washer Thrust

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

8

Toro 780001

Washer

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

9

Sprocket

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Not available

10

Toro 792018

Ring-Snap

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

11

Toro 792041

Screw-Hex Hd.

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

12

Toro 792042

Nut-Lock

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

13

Toro 780077

Bushing

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

14

Toro 792061

Washer

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable
