56125 (7-25) - Toro Rear-Engine Riding Mower (SN: 004000001 - 004999999) (1984) TRANSMISSION ASSEMBLY NO. 44-7200 Parts Diagram

Rear-Engine Riding Mower

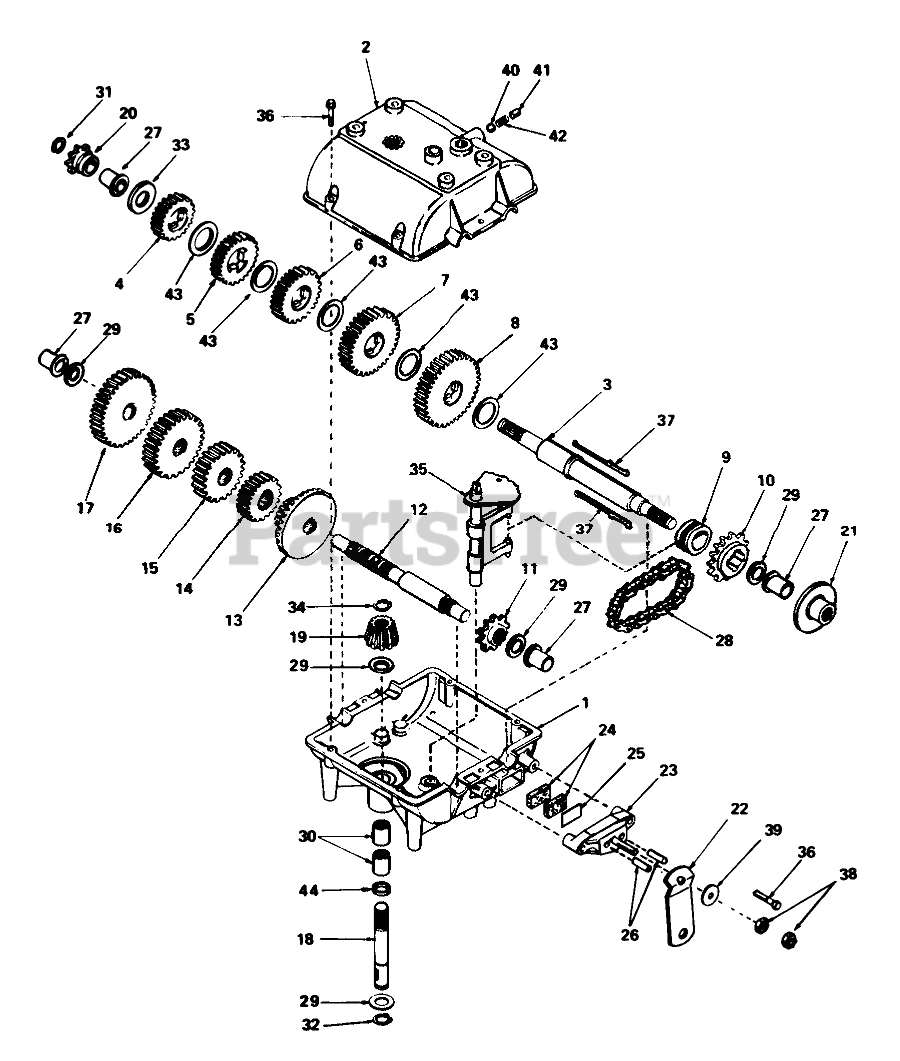

TRANSMISSION ASSEMBLY NO. 44-7200 Parts Diagram

  • Title

1

Toro 770061

Case-Transmission

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

2

Toro 772083

Cover-Transmission

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

3

Toro 776161

Shaft-Output & Brake

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

4

Toro 778121A

Gear-Spur 20 teeth

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

5

Toro 778122A

Gear-Spur (22 teeth)

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

6

Toro 778123A

Gear-Spur, 25 Teeth

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

7

Toro 778124A

Gear-Spur, 30 Teeth

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

8

Toro 778125

Gear-Spur, 35 Teeth

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

9

Toro 784266

Collar-Shift

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

10

Toro 786083

Sprocket-18 Teeth

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

11

Toro 786082

Sprocket-9 Teeth

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

12

Toro 776134

Countershaft

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

13

Toro 778109

Gear-Bevel (42 tooth & 15 tooth spur gear)

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

14

Toro 778126A

Gear-Spur, 20 Teeth

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

15

Toro 778127A

Gear-Spur, 25 Teeth

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

16

Toro 778128A

Gear-Spur (28 teeth)

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

17

Toro 778129A

Gear-Spur (30 teeth)

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

18

Toro 776135

Shaft-Input

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

19

Toro 778113A

Bevel Pinion-Input

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

20

Toro 786047

Sprocket (8Teeth)

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

21

Toro 790003

Disk

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

22

Toro 790029

Lever Brake

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

23

Toro 790005

Holder-Brake Pad

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

24

Toro 790006

Brake Pad

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

25

Toro 790007

Brake Pad Plate

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

26

Toro 786026

Dowel Pin

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

27

Toro 780105

Bushing, Flanged

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

28

Toro 786081

Chain-Roller #41

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

29

Toro 780072

Washer

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

30

Toro 780086

Bearing-Needle

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

31

Toro 792072

Piston Asm (.020 O S)

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

32

Toro 792035

Ring-Snap

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

33

Toro 780109

Washer

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

34

Toro 788040

Ring-Retainer

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

35

Toro 784267

Rod and Fork ASM

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

36

Toro 792073

Ring Set (.020 O S)

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

37

Toro 792089A

Key

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

38

Toro 792075

Locknut

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

39

Toro 792076

Washer

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

40

Toro 792077

Ball-Steel

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

41

Toro 792078

Screw-Set

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

42

Toro 792079

Spring

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

43

Toro 780108

Washer

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable

44

Toro 792001

O Ring

Note: Note: Obtain piece parts from your local Peerless Dealer.

$

$

Currently unavailable
