56125 (7-25) - Toro Rear-Engine Riding Mower (SN: 003000001 - 003999999) (1983) MAGNETO NO. 611043 Parts Diagram

Rear-Engine Riding Mower

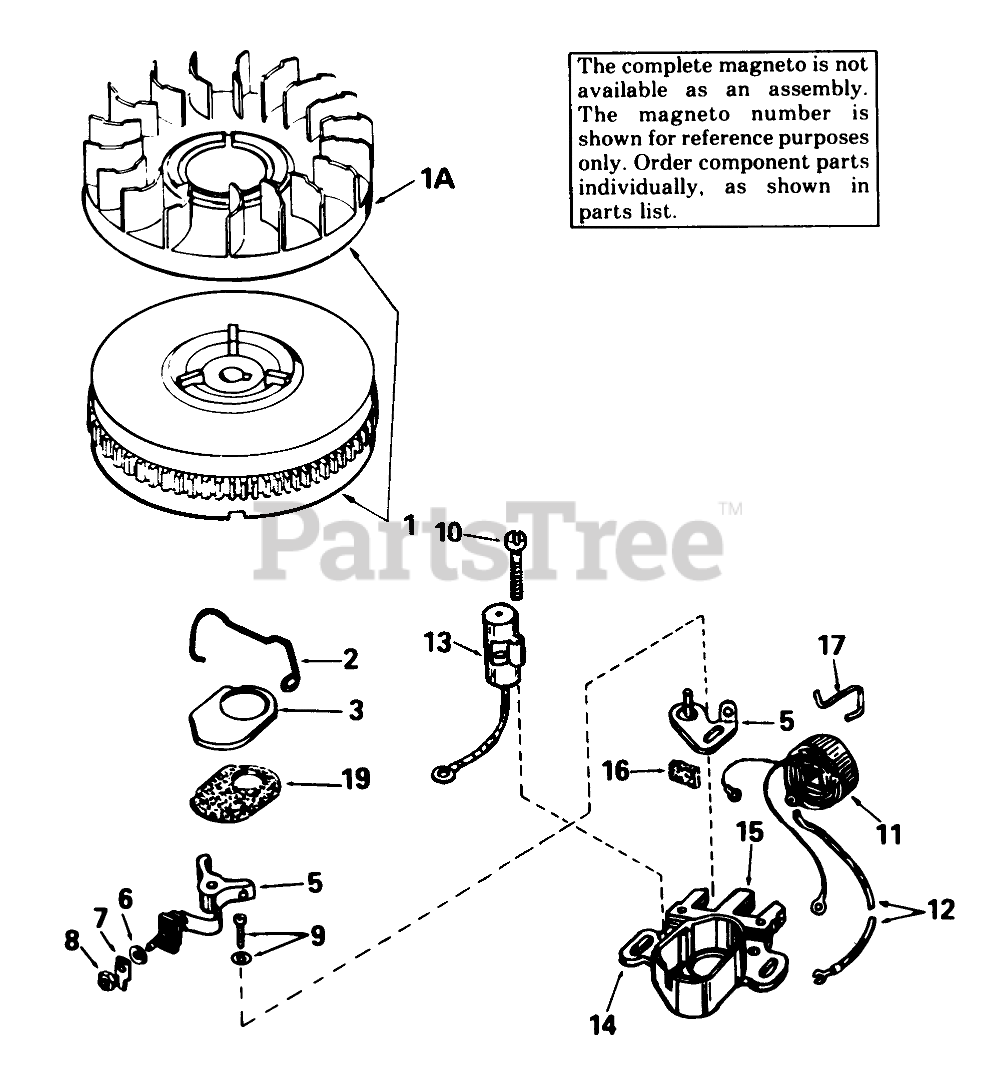

MAGNETO NO. 611043 Parts Diagram

  • Title

1

Tecumseh 611042

Flywheel (Incl. Ref. #1A)

$

$

Not available

1A

Tecumseh 610933

Fan

$

$

Not available

2

Tecumseh 30551

Spring Breaker Box

$

$

Not available

3

Tecumseh 610947

Cover-Dust

$3.99

$

Usually ships in 3-12 days

0

5

Tecumseh 30547A

Breaker Assy.

$18.99

$

In Stock, only 2 left!

0

6

Tecumseh 610385

Washer

$

$

Not available

7

Tecumseh 33356

Terminal, Ground

$1.99

$

In Stock, only 4 left!

0

8

Tecumseh 610408

DECAL

$

$

Currently unavailable

9

Tecumseh 29181

Breaker Screw

$

$

Not available

10

Tecumseh 610593

Condenser Screw

$1.99

$

Usually ships in 3-12 days

0

11

Tecumseh 30560A

Coil Assy. (Incl. Ref. #12)

$48.99

$

Usually ships in 3-12 days

0

12

Tecumseh 30554

Wire, Lead

$

$

Not available

13

Tecumseh 30548B

Condenser

$13.99

$

In Stock, Qty 6

0

14

Tecumseh 30545

Core & Plate

$

$

Not available

15

Tecumseh 30561B

Stator Assy. (Incl. Ref. #2 thru 11, 13, 14, 16, 17 & 19)

$

$

Not available

16

Tecumseh 30549

Felt,Cam Wiper

$1.99

$

In Stock, only 3 left!

0

17

Tecumseh 31311

Clip, Coil

$

$

Not available

19

Tecumseh 610957

Gasket, Dust Cover

$

$

Not available
