56125 (7-25) - Toro Rear-Engine Riding Mower (SN: 003000001 - 003999999) (1983) FRONT AXLE ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

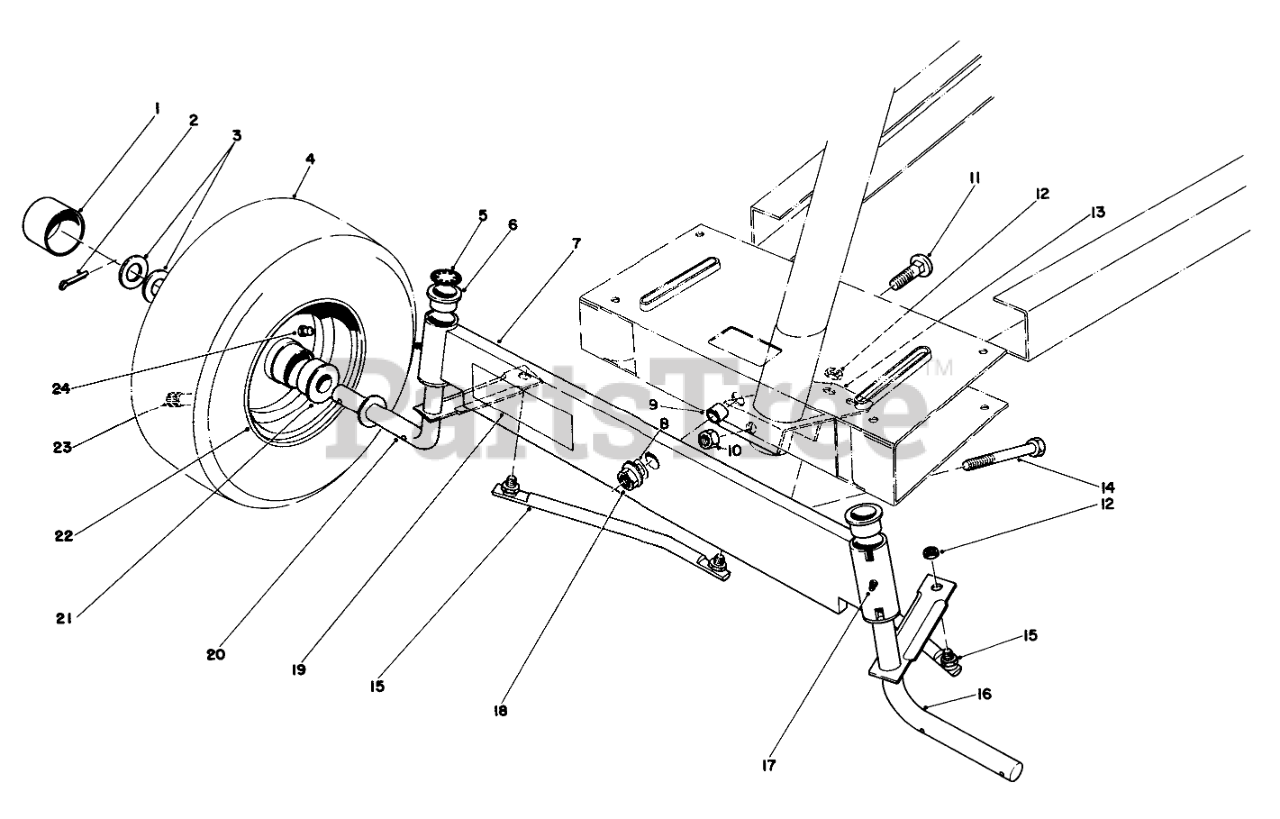

FRONT AXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 285-18

Hub Cap
(Superseded to 2410-53)

$

$

Not available

2

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

3

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 5

0

4

Toro 231-108

Tire
(Superseded to 231-116)

$

$

Not available

5

Toro 32151-40

RING-RETAINING

$7.49

$

In Stock, Qty 6

0

6

Toro 19-1890

BUSHING

$

$

Not available

7

Toro 25-2330

Front Axle

$

$

Not available

8

Toro 18-9810

WASHER-THRUST

$9.49

$

In Stock, only 2 left!

0

9

Toro 19-1520

FRONT AXLE SPACER

$

$

Not available

10

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

11

Toro 3233-2

SCREW-CARR

$7.99

$

Usually ships in 3-6 days

0

12

Toro 3296-20

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

13

Toro 21-9840

Lever Steering

$

$

Not available

14

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

15

Toro 21-9860

TIE ROD ASM

$252.99

$

Usually ships in 3-6 days

0

16

Toro 21-9820

Spindle L.H.

$

$

Not available

17

Toro 302-49

GREASE FITTING

$3.49

$

Usually ships in 3-6 days

0

18

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

19

Toro 26-4830

Decal-Warning

$

$

Not available

20

Toro 21-9830

SPINDLE WA RH

$

$

Not available

21

Toro 256-170

BUSHING

$

$

Not available

22

Toro 217-80

RIM

$192.99

$

Usually ships in 3-6 days

0

23

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 17

0

24

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0
