56125 (7-25) - Toro Rear-Engine Riding Mower (SN: 003000001 - 003999999) (1983) FRAME ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

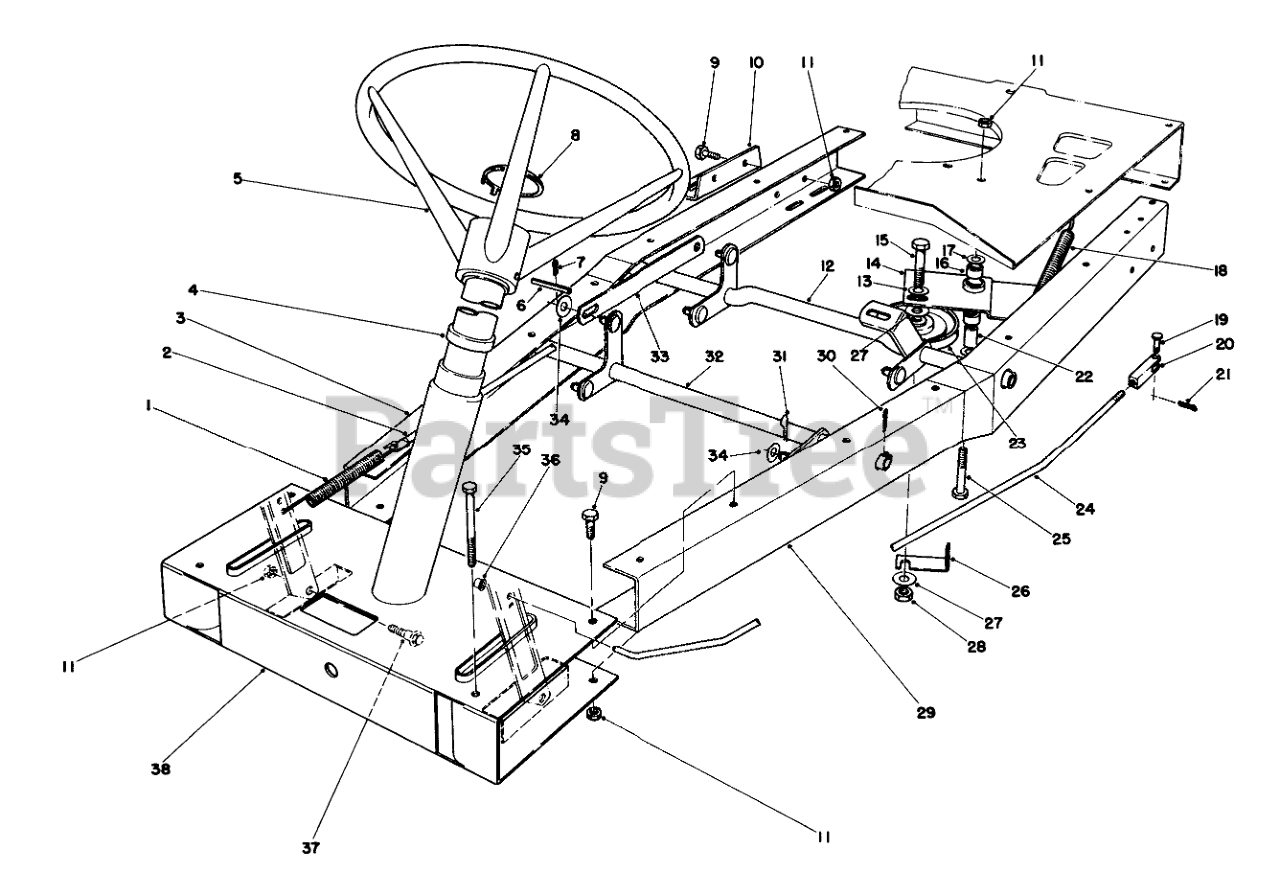

FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro 26-2740

BRAKE TENSION SPRG O

$

$

Not available

2

Toro 26-5290

Brake Rod

$

$

Not available

3

Toro 44-7120

Frame-Channel R.H.

$

$

Not available

4

Toro 47-5050

STEERING TUBE WA BO

$

$

Not available

5

Toro 38-0830

Steering Wheel
(Superseded to 49-3240)

$200.99

$

Usually ships in 3-6 days

0

6

Toro 32121-78

PIN-ROLL

$3.49

$

In Stock, Qty 7

0

7

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

8

Toro 44-7070

Insert-Steering Wheel

$

$

Not available

9

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

10

Toro 44-7140

Mount-Axle Brg.
(Superseded to 44-7140-01)

$

$

Not available

11

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

12

Toro 28-5690

REAR HT ADJ WA B

$

$

Not available

13

Toro 3256-46

WASHER-FLAT

$7.99

$

Usually ships in 3-6 days

0

14

Toro 26-2830

Traction Idler (Incl. Ref. #16)

$

$

Not available

15

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Toro 47-2890

BUSHING

$3.99

$

Usually ships in 3-6 days

0

17

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

18

Toro 19-5340

Clutch Tension Spring

$

$

Not available

19

Toro 283-3

PIN-CLEVIS

$0.99

$

In Stock, only 1 left!

0

20

$42.99

$

Usually ships in 3-6 days

0

21

Toro 3272-4

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

22

Toro 26-2610

PIVOT SPACER

$

$

Not available

23

Toro 12-5820

PULLEY-IDLER

$29.99

$

In Stock, Qty 6

0

24

Toro 28-4550

Clutch Rod

$

$

Not available

25

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

26

Toro 12-9020

RETAINER-BELT

$

$

Not available

27

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 12

0

28

Toro 32153-2

NUT-LOCK, SIDE
(Superseded to 603773)

$2.99

$

In Stock, Qty 6

0

29

Toro 26-2640

LH FRAME CHANNEL B

$

$

Not available

30

Toro 3272-23

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

31

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

32

Toro 17-9890

FRONT LIFT WA B

$

$

Not available

33

Toro 17-9530

Linkage-Height Adj.

$

$

Not available

34

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

35

Toro 322-14

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

36

Toro 3290-363

PUSH ON SPEED NUT 1/4

$

$

Not available

37

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 5

0

38

Toro 24-7420

Front Frame

$

$

Not available
