56125 (7-25) - Toro Rear-Engine Riding Mower (SN: 003000001 - 003999999) (1983) ELECTRICAL SCHEMATIC Parts Diagram

Rear-Engine Riding Mower

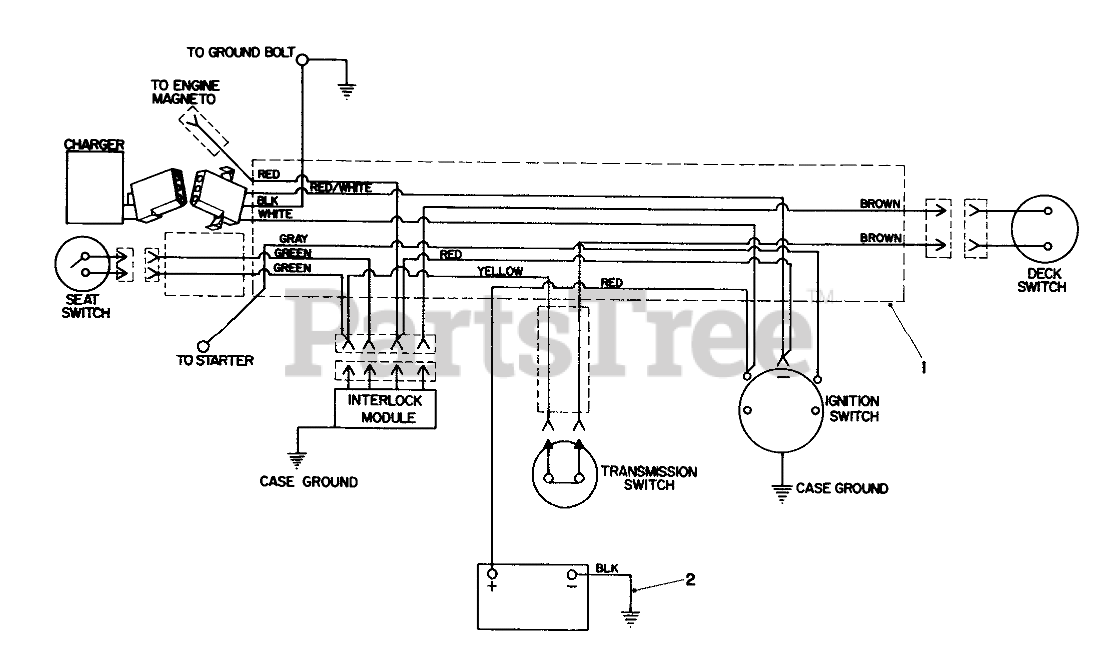

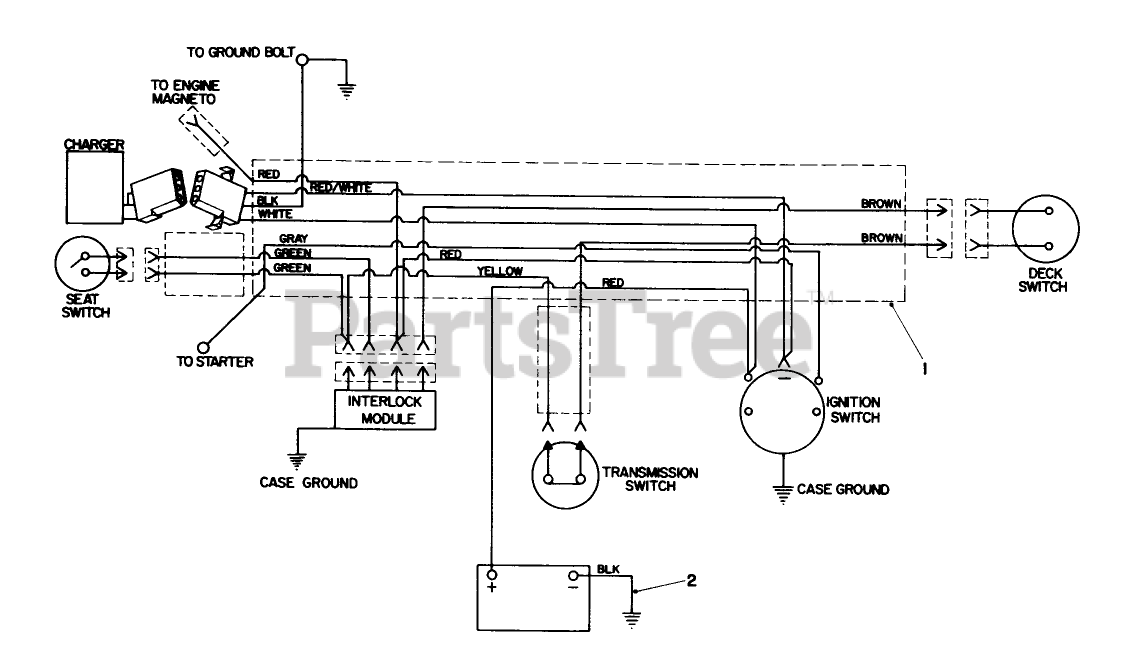

ELECTRICAL SCHEMATIC Parts Diagram

  • Title
1

Toro 47-5030

WIRE HARNESS

$

$

Not available

2

Toro 7-7630

ENG-GROUND WIRE ASM

$23.99

$

Usually ships in 3-6 days

0

Toro 44-7250

BATTERY CHARGER

Note: Not illustrated

$182.99

$

Usually ships in 3-6 days

0
