56125 (7-25) - Toro Rear-Engine Riding Mower (SN: 003000001 - 003999999) (1983) BLADE DRIVE ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

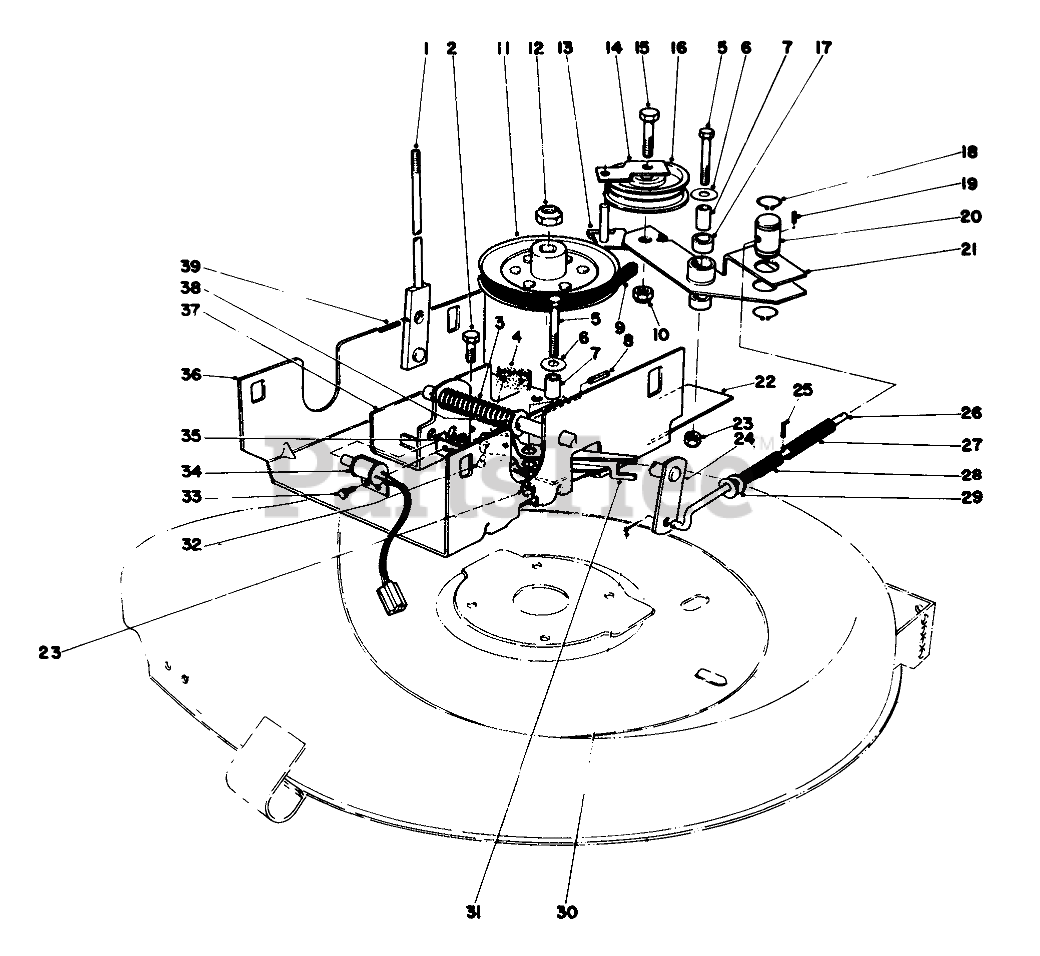

BLADE DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 42-5320

Lever-Deck Engagement
(Superseded to 26-4460)

$

$

Not available

2

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 19-1930

COMP SPRING O

$

$

Not available

4

Toro 7-0643

BLADE BRAKE LINING

$

$

Not available

5

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Toro 26-2610

PIVOT SPACER

$26.99

$

Usually ships in 3-6 days

0

8

Toro 32121-45

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

9

Toro 26-2770

V-BELT

$34.99

$

Usually ships in 3-6 days

0

10

Toro 32153-2

NUT-LOCK, SIDE

$0.99

$

In Stock, Qty 14

0

11

Toro 26-4020

DECK PULLEY R

$

$

Not available

12

Toro 17-0980

Nut

$9.99

$

In Stock, only 4 left!

0

13

Toro 28-4460

Belt Retainer

$

$

Not available

14

Toro 28-4480

BELT RETAINER UPPER

$

$

Not available

15

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Toro 7-4660

Flat Idler
(Superseded to 62-4540)

$92.99

$

In Stock, only 1 left!

0

17

Toro 47-2890

BUSHING

$3.99

$

Usually ships in 3-6 days

0

18

Toro 32120-93

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

19

Toro 32121-73

PIN-ROLL

$0.99

$

Usually ships in 3-6 days

0

20

Toro 26-2580

Pin-Pivot

$

$

Not available

21

Toro 28-6450

Idler Arm (Incl. Ref. #17)
(Superseded to 53-4330)

$287.99

$

Usually ships in 3-6 days

0

22

Toro 17-9540

Bracket Idler Mounting

$

$

Not available

23

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

24

Toro 17-9960

Linkage

$

$

Not available

25

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

26

Toro 26-5500

BLADE ENGAGE ROD

$

$

Not available

27

Toro 26-4800

Spring Deck Idler

$

$

Not available

28

Toro 26-4810

Spring Deck Brake

$

$

Not available

29

Toro 5-1350

WASHER
(Superseded to 5-4460)

$7.99

$

In Stock, Qty 9

0

30

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

31

Toro 19-5980

Blade Brake (Incl. Ref. #4 & 32)
(Superseded to 53-4340)

$

$

Not available

32

Toro 3295-25

Rivet

$

$

Not available

33

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 10

0

34

Toro 28-4450

DECK INTERLOCK SWITCH

$

$

Not available

35

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, only 3 left!

0

36

Toro 18-8210

CHANNEL HT ADJ R

$226.99

$

Usually ships in 3-6 days

0

37

Toro 42-5270

Mounting Bracket Blade

$

$

Not available

38

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

39

Toro 32121-93

PIN-SPIRAL

$5.49

$

Usually ships in 3-6 days

0
