56125 (7-25) - Toro Rear-Engine Riding Mower (SN: 002000001 - 002999999) (1982) FRAME ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

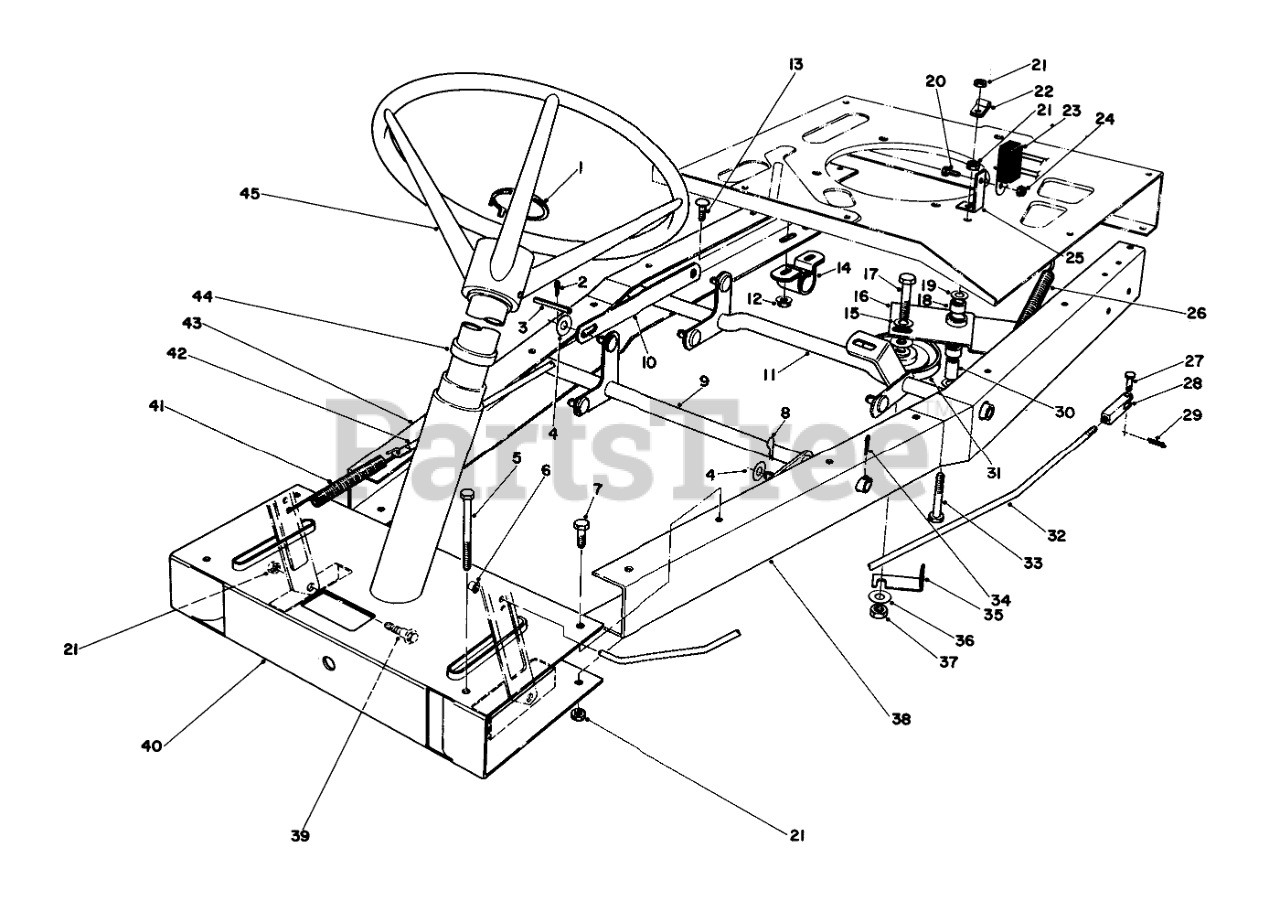

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 44-7070

Insert-Steering Wheel

$

$

Not available

2

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

3

Toro 32121-78

PIN-ROLL

$3.49

$

In Stock, Qty 7

0

4

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 322-14

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

6

Toro 3290-363

PUSH ON SPEED NUT 1/4

$

$

Not available

7

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

8

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

9

Toro 17-9890

FRONT LIFT WA B

$

$

Not available

10

Toro 17-9530

Linkage-Height Adj.

$

$

Not available

11

Toro 28-5690

REAR HT ADJ WA B

$

$

Not available

12

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

13

Toro 3231-30

SCREW-CARR

$4.99

$

In Stock, only 1 left!

0

14

Toro 12-3340

PILLOW BLOCK

$

$

Not available

15

Toro 3256-46

WASHER-FLAT

$7.99

$

Usually ships in 3-6 days

0

16

Toro 26-2830

Traction Idler Assembly (Incl . Ref. #18)

$

$

Not available

17

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 256-110

Bushing
(Superseded to 47-2890)

$3.99

$

Usually ships in 3-6 days

0

19

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

20

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

21

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

22

Toro 18-2970

CLIP-FUEL LINE

$9.99

$

In Stock, only 4 left!

0

23

Toro 39-6530

Control Module
(Superseded to 98-5008)

$148.99

$

Usually ships in 3-6 days

0

24

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

25

Toro 44-7360

Mount-Module

$

$

Not available

26

Toro 19-5340

Clutch Tension Spring

$

$

Not available

27

Toro 283-3

PIN-CLEVIS

$0.99

$

In Stock, only 1 left!

0

28

Toro 282-17

YOKE

$42.99

$

Usually ships in 3-6 days

0

29

Toro 3272-4

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

30

Toro 26-2610

PIVOT SPACER

$

$

Not available

31

Toro 12-5820

PULLEY-IDLER

$29.99

$

In Stock, Qty 6

0

32

Toro 28-4550

Clutch Rod

$

$

Not available

33

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

34

Toro 3272-23

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

35

Toro 12-9020

RETAINER-BELT

$

$

Not available

36

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 12

0

37

Toro 32153-2

NUT-LOCK, SIDE
(Superseded to 603773)

$2.99

$

In Stock, Qty 6

0

38

Toro 26-2640

LH FRAME CHANNEL B

$

$

Not available

39

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 5

0

40

Toro 24-7420

Front Frame

$

$

Not available

41

Toro 26-2740

BRAKE TENSION SPRG O

$

$

Not available

42

Toro 26-5290

Brake Rod

$

$

Not available

43

Toro 44-7120

Frame-Channel R.H.

$

$

Not available

44

Toro 44-7100

Steering Tube
(Superseded to 47-5050)

$

$

Not available

45

Toro 38-0830

Steering Wheel
(Superseded to 49-3240)

$200.99

$

Usually ships in 3-6 days

0
