56125 (7-25) - Toro Rear-Engine Riding Mower (SN: 002000001 - 002999999) (1982) ENGINE PLATE AND SHIFT ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

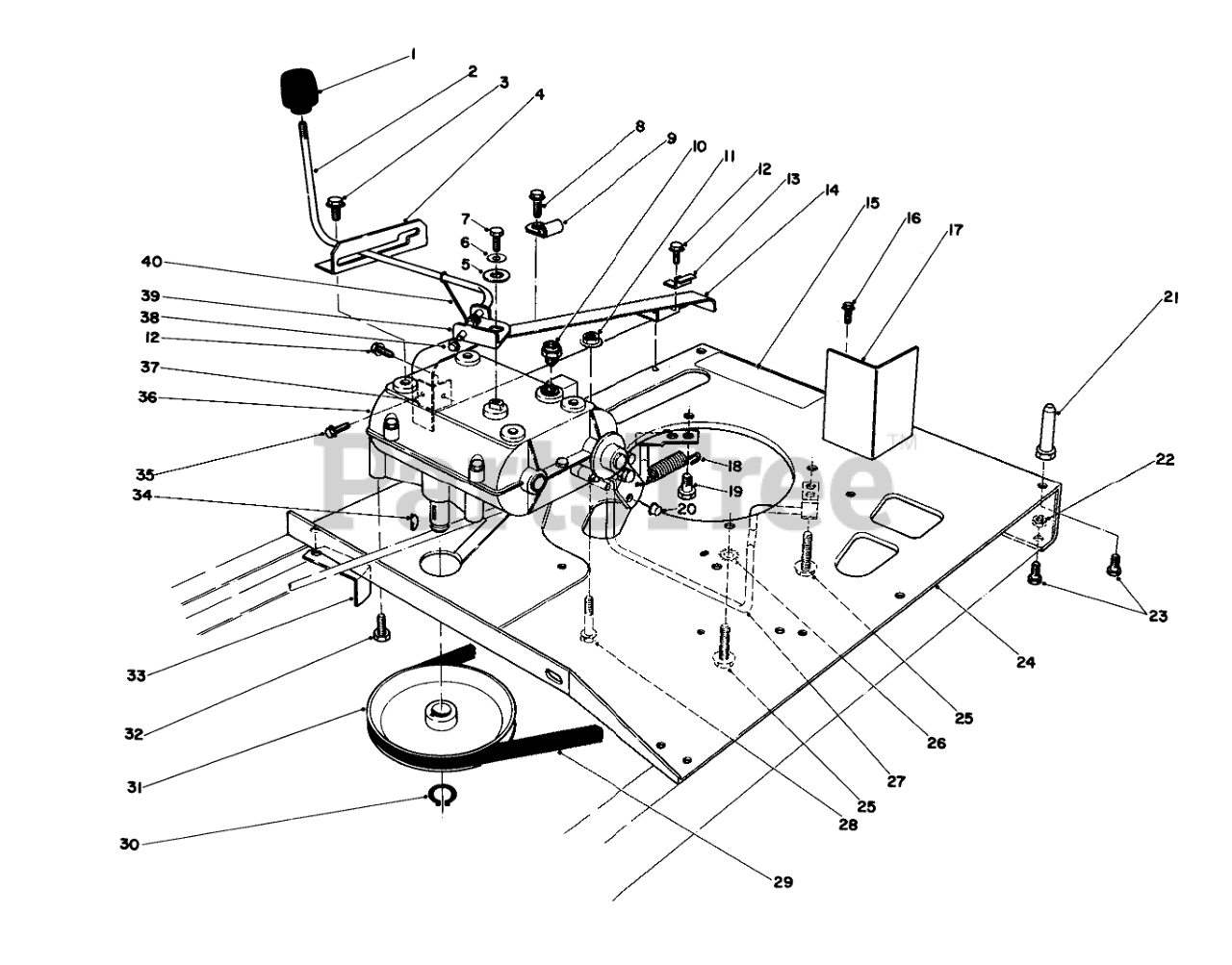

ENGINE PLATE AND SHIFT ASSEMBLY Parts Diagram

  • Title
1

$33.99

$

Usually ships in 3-6 days

0

2

Toro 44-7180

SHIFT LEVER

$297.99

$

Usually ships in 3-6 days

0

3

Toro 32104-82

SCREW-HHF

$4.99

$

Usually ships in 3-6 days

0

4

Toro 44-7190

SHIFT LEVER GATE

$

$

Not available

5

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 3290-436

WASHER-BELLEVILLE

$3.99

$

In Stock, only 1 left!

0

7

Toro 329-3

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

8

Toro 32144-15

SCREW-HHFTF

$9.49

$

Usually ships in 3-6 days

0

9

Toro 18-2970

CLIP-FUEL LINE

$9.99

$

In Stock, only 4 left!

0

10

Toro 28-4250

NEUTRAL SWITCH

$46.99

$

Usually ships in 3-6 days

0

11

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

12

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

13

Toro 44-7350

Clamp-Cable

$

$

Not available

14

Toro 44-7230

Chain Guard

$

$

Not available

15

Toro 19-5850

Decal

$

$

Not available

16

Toro 32104-110

SCREW-HH

$

$

Not available

17

Toro 19-9880

Baffle-Carb

$

$

Not available

18

Toro 26-6700

SPRING-RETURN, BRAKE

$24.99

$

Usually ships in 3-6 days

0

19

Toro 32140-45

Screw-HH

$

$

Not available

20

Toro 3290-363

PUSH ON SPEED NUT 1/4

$

$

Not available

21

Toro 25-1530

PIN-MOUNTING, LOWER

$34.99

$

Usually ships in 3-6 days

0

22

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

23

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

24

Toro 39-6750

Plate-Engine

$

$

Not available

25

Toro 11-0590

SCREW-HWHTF
(Superseded to 32144-102)

$3.49

$

Usually ships in 3-6 days

0

26

Toro 3255-9

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

27

Toro 26-5740

Belt Guide

$

$

Not available

28

Toro 322-17

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

29

Toro 19-2650

V-BELT

$19.99

$

In Stock, only 1 left!

0

30

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, only 2 left!

0

31

Toro 7-4085

PULLEY

$186.99

$

In Stock, only 3 left!

0

32

Toro 32140-61

5/16-18 X 5/8 SEMS SC

$

$

Not available

33

Toro 17-2230

TRANS BELT RET B

$

$

Not available

34

Toro 3257-5

KEY-WOODRUFF

$5.99

$

Usually ships in 3-6 days

0

35

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

36

Toro 44-7200

TRANSMISSION

$

$

Not available

37

Toro 44-7210

CHAIN GUARD BRKT B

$

$

Not available

38

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

39

Toro 44-7170

SHIFT LEVER CLAMP

$

$

Not available

40

Toro 44-7160

Spring-Shift Rod

$

$

Not available
