56123 (8-25) - Toro Rear-Engine Riding Mower (SN: 009000001 - 009999999) (1989) CUTTING UNIT ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

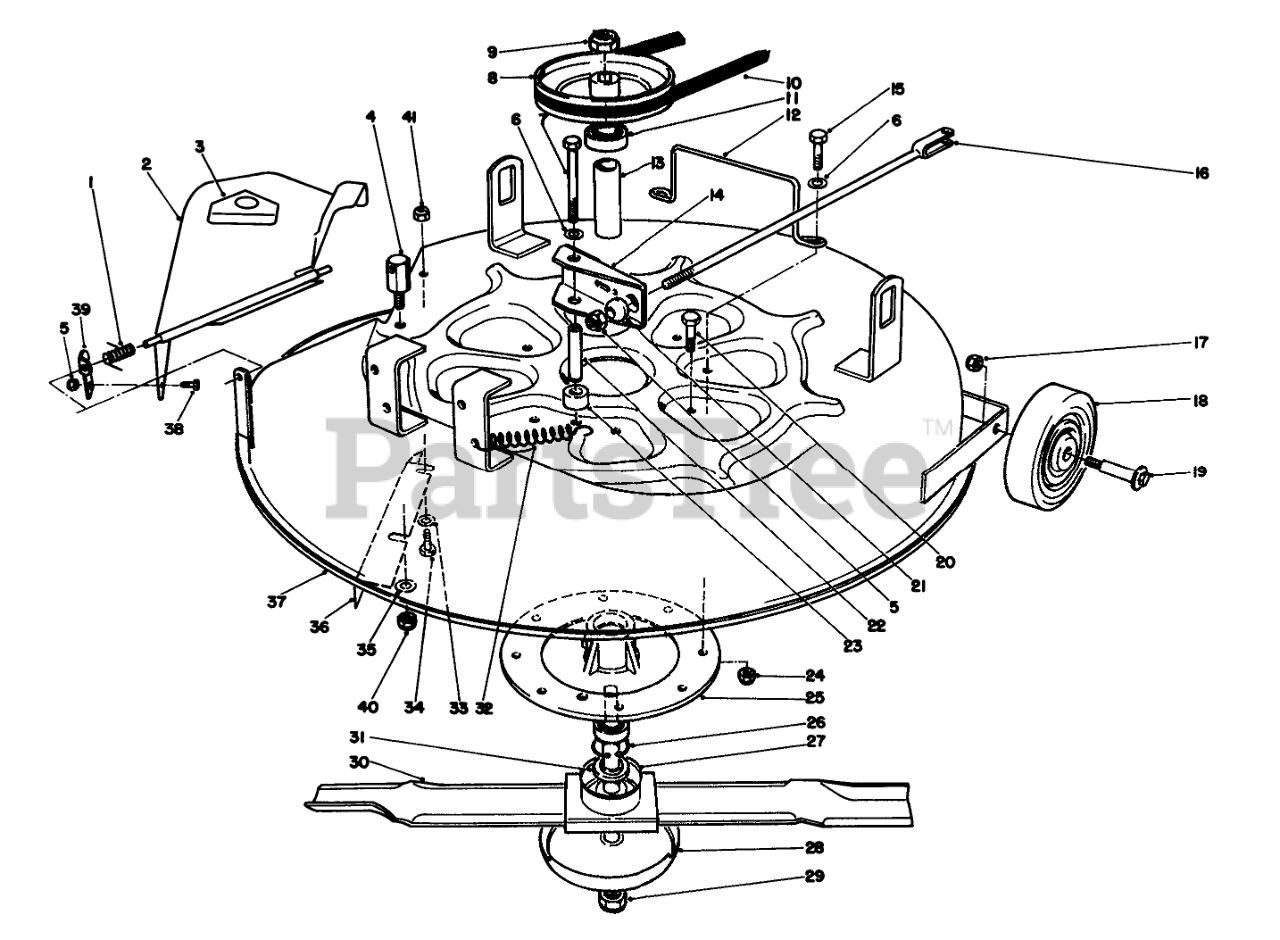

CUTTING UNIT ASSEMBLY Parts Diagram

  • Title

1

Toro 28-8010

SPRING

$20.99

$

Usually ships in 3-6 days

0

2

Toro 67-1150

Deflector (Incl. Ref. #3)

$

$

Not available

3

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$8.99

$

In Stock, Qty 12

0

4

Toro 67-0140

POST-PIVOT

$26.99

$

Usually ships in 3-6 days

0

5

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Toro 322-20

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

8

Toro 67-0720

DECK PULLEY

$

$

Not available

9

Toro 3296-25

NUT-LOCK, NI

$1.99

$

In Stock, only 2 left!

0

10

Toro 67-1390

V-Belt
(Superseded to 98-0710)

$34.99

$

In Stock, only 2 left!

0

11

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

12

Toro 67-1380

DECK BELT GUIDE

$

$

Not available

13

Toro 62-3660

SPACER-BEARING

$24.99

$

Usually ships in 3-6 days

0

14

Toro 67-1370

DECK BRAKE ASSEMBLY

$

$

Not available

15

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

16

Toro 67-0570

DECK BRAKE ROD WA

$46.99

$

Usually ships in 3-6 days

0

17

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

18

Toro 61-9760

WHEEL-DECK

$44.99

$

In Stock, only 2 left!

0

19

Toro 56-6590

BOLT-WHEEL
(Superseded to 136-7198)

$1.99

$

In Stock, Qty 20+

0

20

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Toro 67-0710

BALL-SWIVEL, STOP

$3.99

$

In Stock, only 2 left!

0

22

Toro 67-0730

POST-BRAKE MTG

$

$

Not available

23

Toro 67-0740

SPACER-DECK BRAKE

$

$

Not available

24

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

25

Toro 67-0970

CASTING-SPINDLE

$240.99

$

Usually ships in 3-6 days

0

26

Toro 32120-42

RING-RETAINING

$1.49

$

In Stock, Qty 12

0

27

Toro 62-3690

Shaft-Spindle
(Superseded to 62-3690-03)

$

$

Not available

28

Toro 7-3522

Cup
(Superseded to 92-6313)

$45.99

$

In Stock, only 1 left!

0

29

Toro 17-0980

Nut

$9.99

$

In Stock, Qty 5

0

30

Toro 67-0200

Blade
(Superseded to 67-0200-03)

$50.99

$

Usually ships in 3-6 days

0

31

Toro 62-3670

SPINDLE SPACER

$

$

Not available

32

Toro 67-1440

SPRING-EXTENSION

$17.99

$

Usually ships in 3-6 days

0

33

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

34

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

35

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

36

Toro 67-0130

Baffle
(Superseded to 67-0130-01)

$28.99

$

Usually ships in 3-6 days

0

37

Toro 67-0110

Deck
(Superseded to 95-7484)

$

$

Not available

38

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

39

Toro 67-1600

Bracket-Detector
(Superseded to 67-1600-01)

$

$

Not available

40

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 18

0

41

Toro 3296-8

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0
