56123 (8-25) - Toro Rear-Engine Riding Mower (SN: 009000001 - 009999999) (1989) CARBURETOR NO. 632238 (MODELS 56123 & 56127) Parts Diagram

Rear-Engine Riding Mower

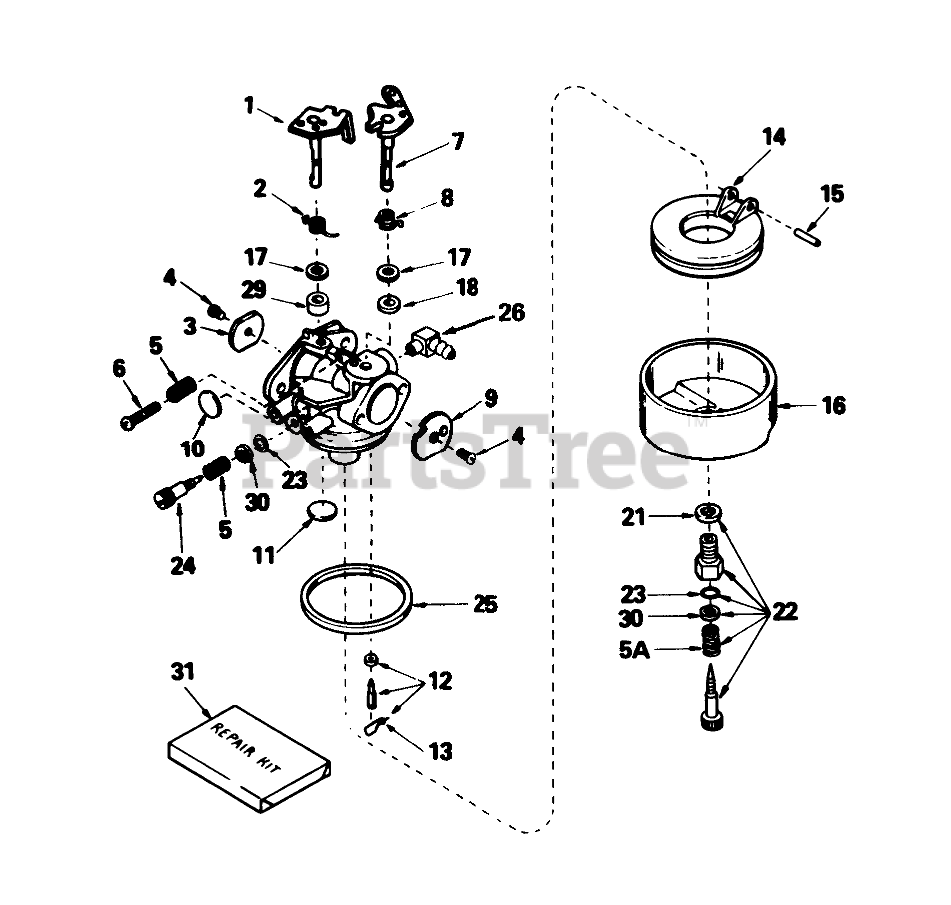

CARBURETOR NO. 632238 (MODELS 56123 & 56127) Parts Diagram

  • Title
1

Tecumseh 631776

Shaft/Lever-Throttle
(Superseded to 631776A)

$16.99

$

Usually ships in 3-12 days

0

2

Tecumseh 631970

Spring-Return, Throttle

$4.49

$

Usually ships in 3-12 days

0

3

Tecumseh 631778

Shutter-Throttle

$1.99

$

In Stock, only 3 left!

0

4

Tecumseh 650506

Screw-Shutter

$1.49

$

In Stock, Qty 16

0

5

Tecumseh 630766

Spring-Tension

$1.99

$

In Stock, only 2 left!

0

5A

$1.99

$

In Stock, Qty 8

0

6

Tecumseh 650417

Screw-Throttle Crack Screw / Idle Speed
(Superseded to 651025)

$1.99

$

In Stock, Qty 5

0

7

Tecumseh 631779

Shaft & Lever Assy., Choke

$7.49

$

In Stock, only 2 left!

0

8

Tecumseh 631780A

Spring, Choke Return
(Superseded to 631780B)

$1.99

$

In Stock, Qty 6

0

9

Tecumseh 631753

Choke Shutter

$1.99

$

In Stock, only 4 left!

0

10

Tecumseh 630748

Plug-Welch, Idle Mixture Well

$1.99

$

In Stock, only 3 left!

0

11

Tecumseh 631027

Plug-Welch, Atmospheric Vent

$1.99

$

In Stock, Qty 5

0

12

Tecumseh 631021

Inlet Needle, Seat & Clip Assy. (Incl. Ref. #13)
(Superseded to 631021B)

$6.99

$

In Stock, Qty 20+

0

13

Tecumseh 631022

Clip-Spring

$1.99

$

In Stock, only 4 left!

0

14

Tecumseh 632019

Float
(Superseded to 632019A)

$7.49

$

In Stock, Qty 10

0

15

Tecumseh 631024

Shaft-Float

$1.99

$

In Stock, Qty 11

0

16

Tecumseh 631867

Bowl-Float (no drain)

$3.49

$

In Stock, Qty 12

0

17

Tecumseh 631184

Washer-Seal, Dust

$1.99

$

In Stock, Qty 17

0

18

Tecumseh 631183

Seal-Dust

$1.99

$

In Stock, Qty 12

0

21

Tecumseh 27110

Washer-Bowl Nut
(Superseded to 27110A)

$2.49

$

Usually ships in 3-12 days

0

22

Tecumseh 632239

Adjustment Screw Assy.,Main (Incl. Ref. #5A,21,23 & 30)

$14.99

$

In Stock, only 1 left!

0

23

Tecumseh 630740

"O"Ring

$2.49

$

In Stock, only 2 left!

0

24

Tecumseh 630898

Screw Main Adjustment

$2.49

$

In Stock, Qty 8

0

25

Tecumseh 631028

O Ring-Bowl, Float
(Superseded to 631028A)

$2.49

$

In Stock, Qty 9

0

26

Tecumseh 631775

Fitting-Fuel
(Superseded to 632527)

$8.49

$

In Stock, only 2 left!

0

29

Tecumseh 631971

Seal-Dust
(Superseded to 631183)

$1.99

$

In Stock, Qty 12

0

30

$1.99

$

In Stock, Qty 6

0

31

Tecumseh 632240

Repair Kit

$13.99

$

In Stock, only 1 left!

0
