5611 - Troy-Bilt Junior IV Rear-Tine Tiller (SN: M0075090 - M0100969) WHEEL TILLER SHAFT ASSEMBLIES Parts Diagram

Junior IV Rear-Tine Tiller

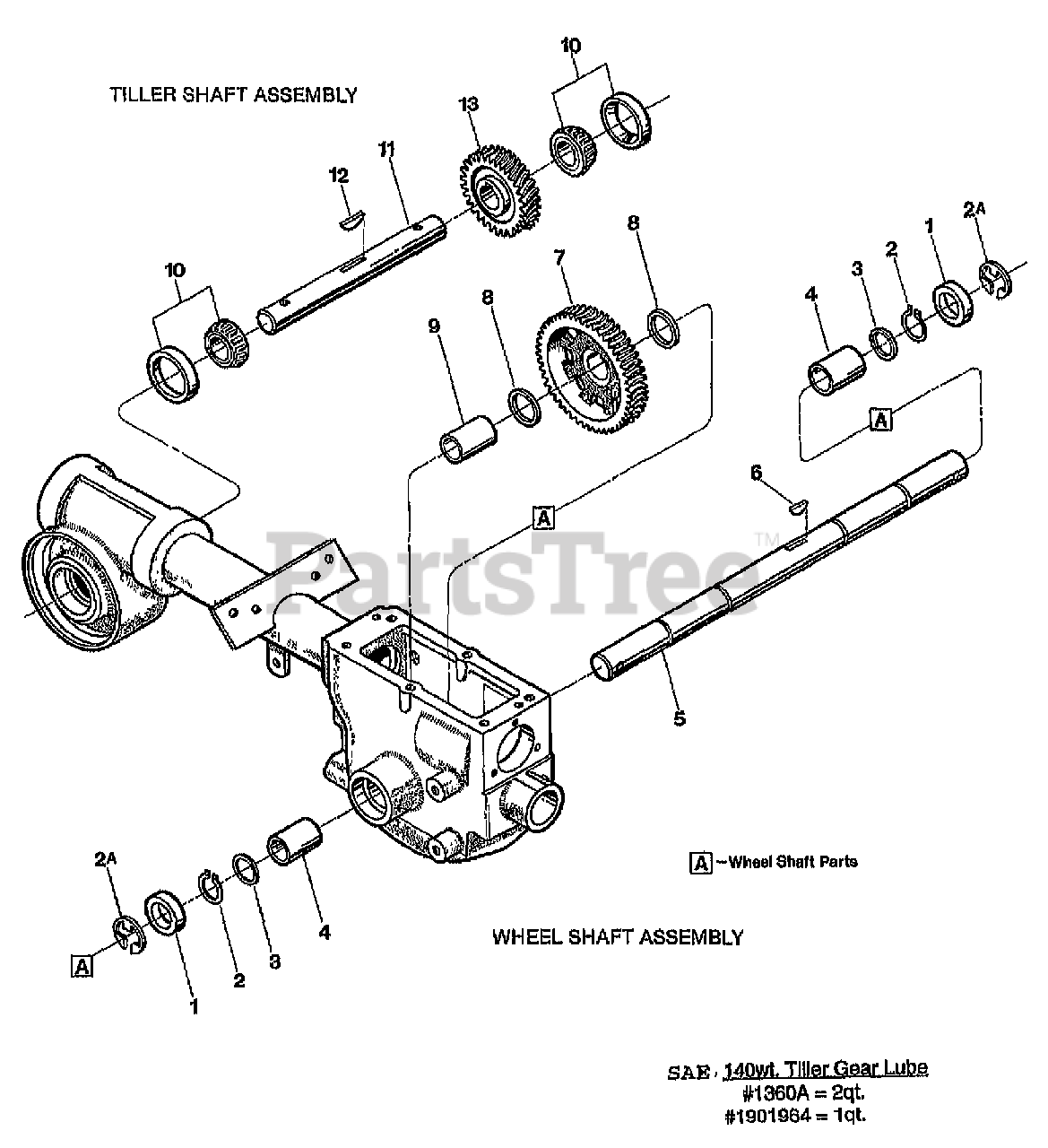

WHEEL TILLER SHAFT ASSEMBLIES Parts Diagram

  • Title
1

Troy-Bilt 9621

SEAL-OIL WHEELSHAFT (LT & RT SIDES)
(Superseded to 921-04031)

$10.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 9511

RING-HEAVY EXT .906 ID
(Superseded to 716-04104)

$4.49

$

In Stock, Qty 20+

0

2A

Troy-Bilt 9512

RING-RETAINING 5133-989
(Superseded to GW-9512)

$3.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 1166-1

SHIM-1.375X1.015X.062
(Superseded to 736-04309)

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 1166-2

SHIM-1.375X1.015X.03
(Superseded to 736-04260)

$6.99

$

In Stock, only 2 left!

0

3

Troy-Bilt 1166-3

SHIM-1.375X1.015X.015
(Superseded to 736-04259)

$6.99

$

In Stock, Qty 5

0

3

Troy-Bilt 1166-4

SHIM-1.375X1.015X.01
(Superseded to 736-04258)

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 1086

BUSHING-1.25X1.005X1.5
(Superseded to 941-04300)

$16.99

$

In Stock, Qty 8

0

5

Troy-Bilt 50230

ASSM-WHEELSHAFT (INCL KEY #9097)

$

$

Currently unavailable

6

Troy-Bilt 9097

KEY-HI PRO .25X.938

$

$

Currently unavailable

7

Troy-Bilt 50217

GEAR-MACH

$

$

Currently unavailable

8

Troy-Bilt 1132-3

SHIM-1.234X1.015X.01
(Superseded to GW-1132-3)

$6.99

$

In Stock, Qty 5

0

9

Troy-Bilt 50216

SPACER-WHEEL SHAFT

$

$

Currently unavailable

10

Troy-Bilt 10805

BEARING CUP & CONE (W/ RACE)

$

$

Currently unavailable

11

Troy-Bilt 20798

SHAFT W/KEY (TILLER)

$

$

Currently unavailable

12

Troy-Bilt 1104

KEY-WOODRUFF .25X1.12
(Superseded to GW-1104)

$9.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 20776

GEAR-TILLER MACH (BRONZE)

$

$

Currently unavailable

Troy-Bilt 1360A

OIL (SAE 140WT. TILLER GEAR LUBE, 2 QT.)

$

$

Currently unavailable

Troy-Bilt 1901964

OIL-(SAE 140WT. TILLER GEAR LUBE, 1 QT.)

$

$

Currently unavailable
