56108 - Toro 32" Sportsman Rear-Engine Riding Mower, Recoil (SN: 003000001 - 003999999) (1973) REAR AXLE ASSEMBLY Parts Diagram

32" Sportsman Rear-Engine Riding Mower, Recoil

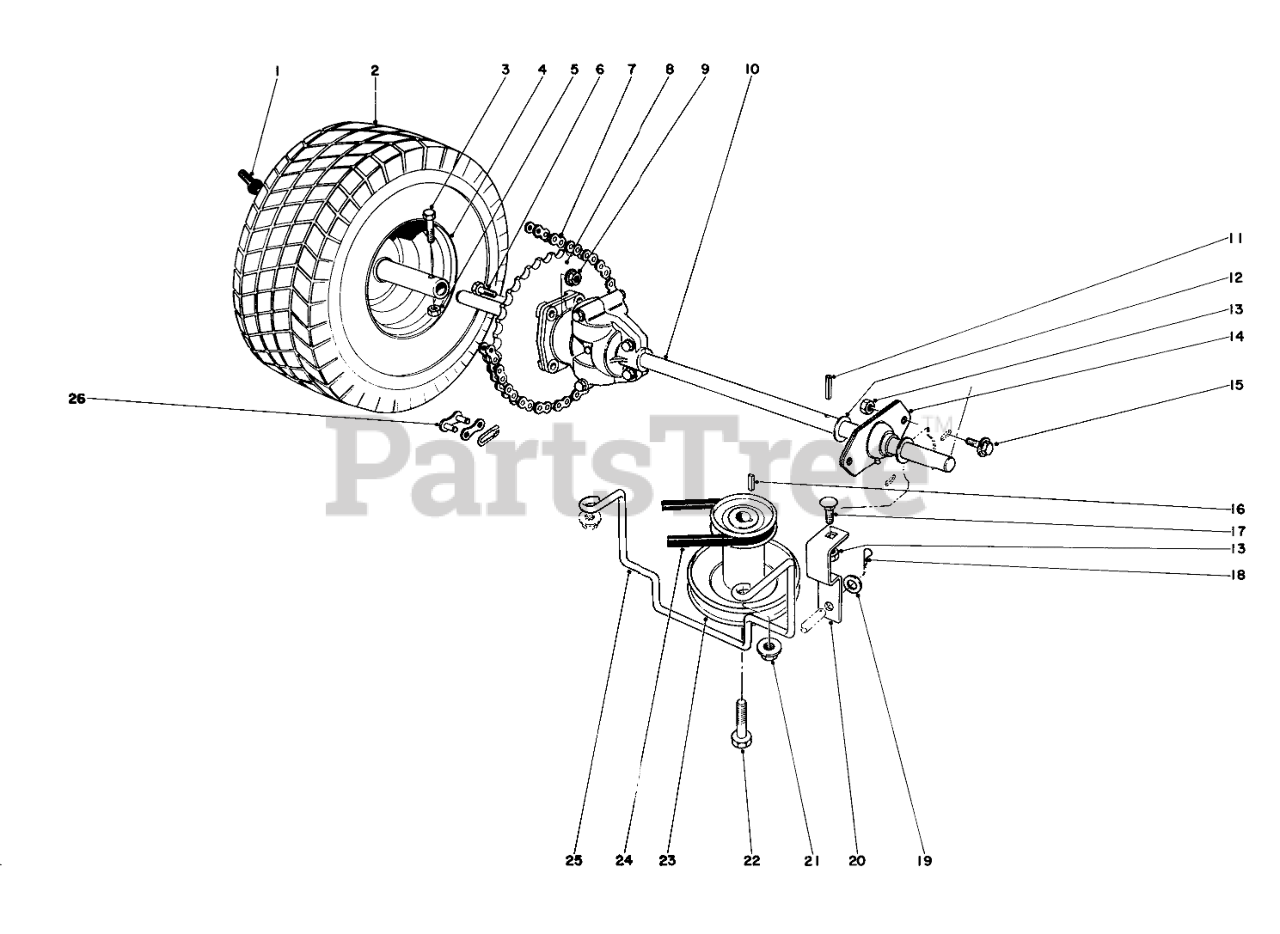

REAR AXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

2

Toro 231-68

Tire Turf King

$

$

Currently unavailable

Toro 231-56

Tire

Note: Not illustrated

$

$

Currently unavailable

3

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 241-116

Rim

$

$

Currently unavailable

5

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

6

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

7

Toro 12-3670

Chain

$

$

Currently unavailable

8

Toro 12-1930

Differential Sprocket

$

$

Currently unavailable

9

Toro 32128-2

Locknut
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

10

Toro 12-4970

Differential Ass-y.

$

$

Currently unavailable

11

Toro 32121-6

PIN-ROLL, SLOTTED

$0.99

$

In Stock, only 1 left!

0

12

Toro 12-4980

Washer

$

$

Currently unavailable

13

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

14

Toro 11-1880

Rear Axle Bearing

$

$

Not available

15

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

16

Toro 5-1336

KEY-SQUARE

$10.99

$

In Stock, Qty 5

0

17

Toro 3230-15

SCREW-CARR

$1.99

$

In Stock, only 4 left!

0

18

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

19

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

20

Toro 11-1500

Bracket

$

$

Currently unavailable

21

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

22

Toro 3212-8

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

23

Toro 11-2320

Pulley

$

$

Not available

24

Toro 19-6960

V-BELT

$

$

Not available

25

Toro 11-2330

Belt Retainer

$

$

Currently unavailable

26

Toro 2710-6

LINK-CONNECTING

$19.99

$

Usually ships in 3-6 days

0
