56108 - Toro 32" Sportsman Rear-Engine Riding Mower, Recoil (SN: 003000001 - 003999999) (1973) FRONT AXLE AND WHEEL ASSEMBLY Parts Diagram

32" Sportsman Rear-Engine Riding Mower, Recoil

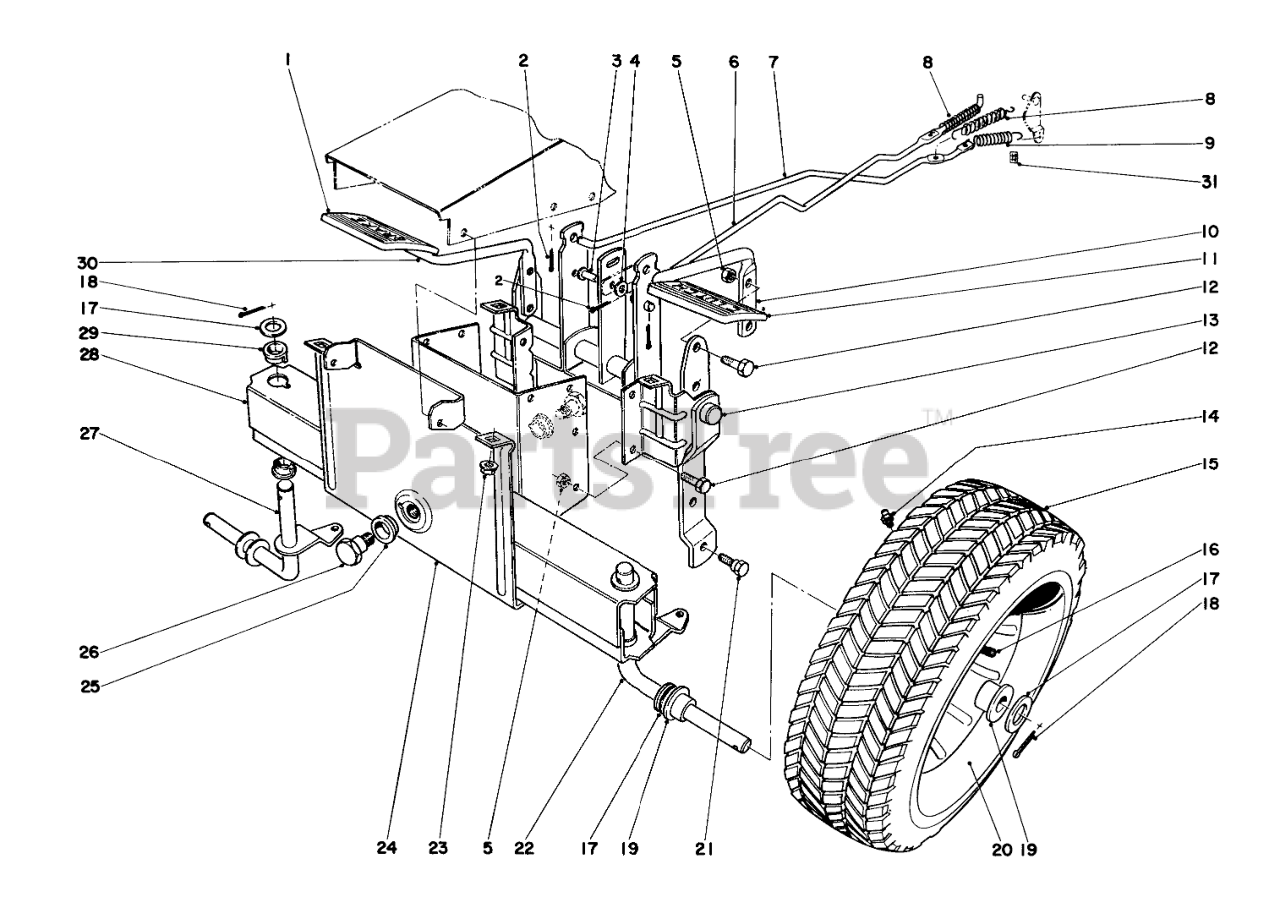

FRONT AXLE AND WHEEL ASSEMBLY Parts Diagram

  • Title
1

Toro 7-3900

PAD-BRAKE

$32.99

$

In Stock, only 3 left!

0

2

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

3

Toro 283-30

PIN-CLEVIS

$0.99

$

Usually ships in 3-6 days

0

4

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

5

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

6

Toro 12-6670

Clutch Rod

$

$

Currently unavailable

7

Toro 12-6660

Rod Brake

$

$

Currently unavailable

8

Toro 11-1700

Spring

$

$

Currently unavailable

9

Toro 11-1680

Spring, Brake

$

$

Not available

10

Toro 11-2100

Clutch Pedal

$

$

Currently unavailable

11

Toro 7-3901

CLUTCH PAD

$

$

Currently unavailable

12

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 12-6610

Control Shaft

$

$

Currently unavailable

14

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

15

Toro 231-77

Tire Turf King
(Superseded to 231-116)

$

$

Not available

Toro 231-55

Tire

Note: Not illustrated

$

$

Not available

16

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 14

0

17

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 15

0

18

Toro 3272-17

PIN-COTTER

$2.99

$

In Stock, Qty 5

0

19

Toro 256-170

BUSHING

$

$

Not available

20

$218.99

$

Usually ships in 3-6 days

0

21

Toro 12-1450

Screw

$

$

Currently unavailable

22

Toro 11-1770

Spindle L.H.

$

$

Currently unavailable

23

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

24

Toro 12-1730

Frame Lower Front

$

$

Currently unavailable

25

Toro 11-1340

Bushing

$

$

Currently unavailable

26

$

$

Currently unavailable

27

Toro 11-2700

Spindle R.H.

$

$

Not available

28

Toro 11-2540

Front Axle

$

$

Currently unavailable

29

Toro 11-1510

Bushing
(Superseded to 19-1890)

$

$

Not available

30

Toro 11-2110

Brake Pedal

$

$

Currently unavailable

31

Toro 3290-353

Push on Speed Nut

$

$

Currently unavailable
