56108 - Toro 32" Sportsman Rear-Engine Riding Mower, Recoil (SN: 003000001 - 003999999) (1973) FRAME ASSEMBLY Parts Diagram

32" Sportsman Rear-Engine Riding Mower, Recoil

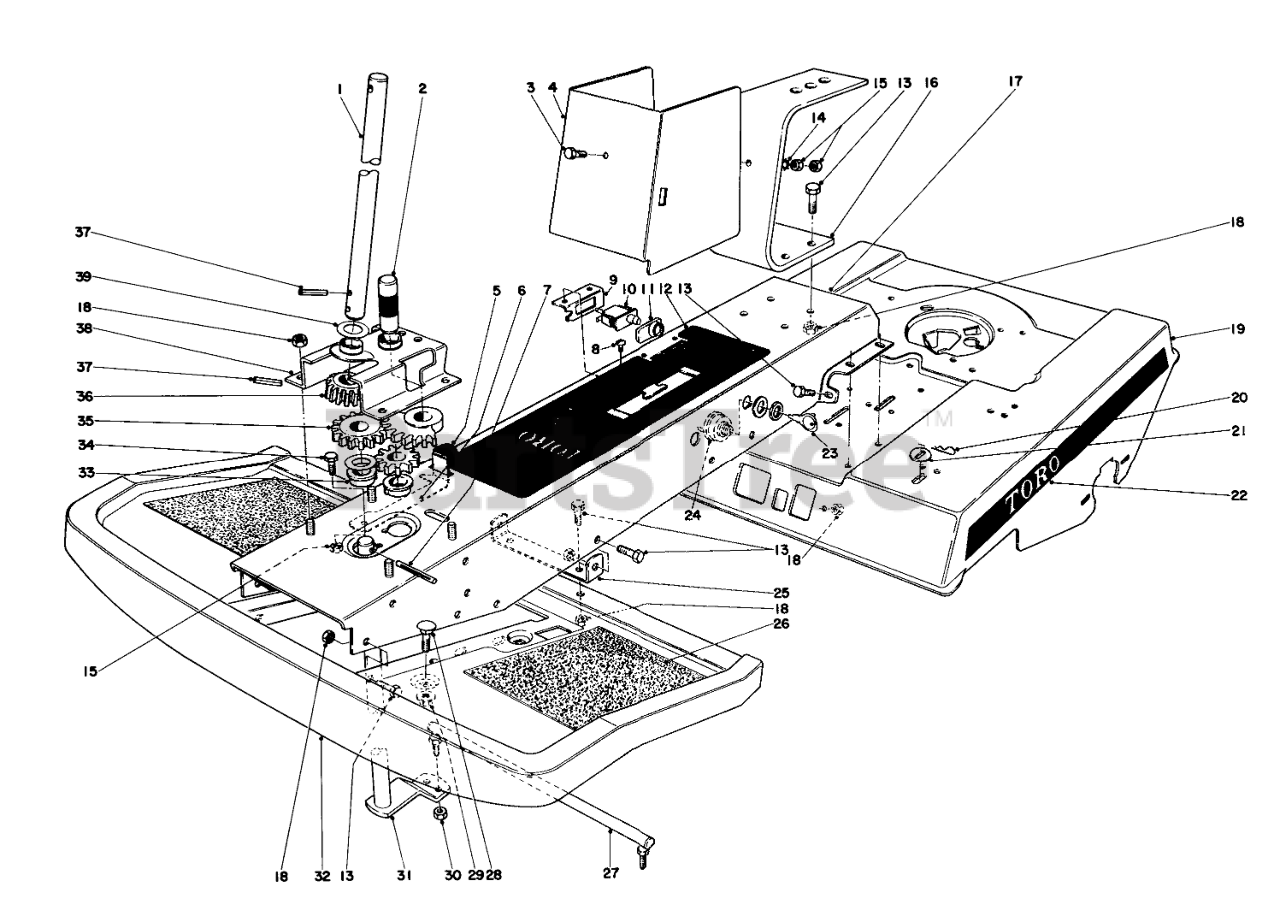

FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro 11-2670

Shaft Upper

$

$

Not available

2

Toro 11-1860

Steering Idler Ass-y.

$

$

Not available

3

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Toro 11-2940

Cover Seat

$

$

Currently unavailable

5

Toro 11-3560

Parking Brake Tip

$

$

Currently unavailable

6

Toro 11-2210

Parking Brake Spring

$

$

Currently unavailable

7

Toro 3285-17

3/16 X 1-1/2 GRVE PIN

$

$

Not available

8

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

9

Toro 12-2800

Switch Bracket

$

$

Currently unavailable

10

Toro 8-5510

Switch

$

$

Currently unavailable

11

Toro 11-3070

Boot Switch

$

$

Not available

12

Toro 12-5120

Throttle Control Decal

$

$

Currently unavailable

13

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

14

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

Usually ships in 3-6 days

0

15

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 2 left!

0

16

Toro 11-2380

Seat Spring

$

$

Currently unavailable

17

Toro 12-7980

Center Frame Member

$

$

Currently unavailable

18

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

19

Toro 12-1760

Engine Mounting Frame

$

$

Currently unavailable

20

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

21

Toro 11-1310

Washer

$

$

Currently unavailable

22

Toro 12-2920

Decal L.H.

$

$

Currently unavailable

Toro 12-2870

Decal R.H.

Note: Not illustrated

$

$

Currently unavailable

23

Toro 218-412

Key
(Superseded to 62-7770)

$4.99

$

In Stock, only 1 left!

0

24

Toro 12-2810

Switch

$

$

Not available

25

Toro 11-1590

Support

$

$

Currently unavailable

26

Toro 12-2070

Foot Tread

$

$

Currently unavailable

27

Toro 11-1870

Ball Joint

$

$

Currently unavailable

28

Toro 3230-15

SCREW-CARR

$1.99

$

In Stock, only 4 left!

0

29

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

30

Toro 3296-13

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

31

Toro 11-2020

Shaft

$

$

Not available

32

Toro 11-2650

Foot Rest

$

$

Currently unavailable

33

Toro 11-1510

Bushing
(Superseded to 19-1890)

$

$

Not available

34

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

35

$

$

Currently unavailable

36

Toro 11-2060

STEERING PINION

$

$

Not available

37

Toro 32121-4

PIN-ROLL, SLOTTED

$3.99

$

Usually ships in 3-6 days

0

38

Toro 11-2290

Bracket Steering Support

$

$

Not available

39

Toro 11-1330

Washer

$

$

Currently unavailable

Toro 5-5449

Loose Parts

Note: Not illustrated

$

$

Currently unavailable
