56108 - Toro 32" Sportsman Rear-Engine Riding Mower, Recoil (SN: 003000001 - 003999999) (1973) CUTTER HOUSING LINKAGE Parts Diagram

32" Sportsman Rear-Engine Riding Mower, Recoil

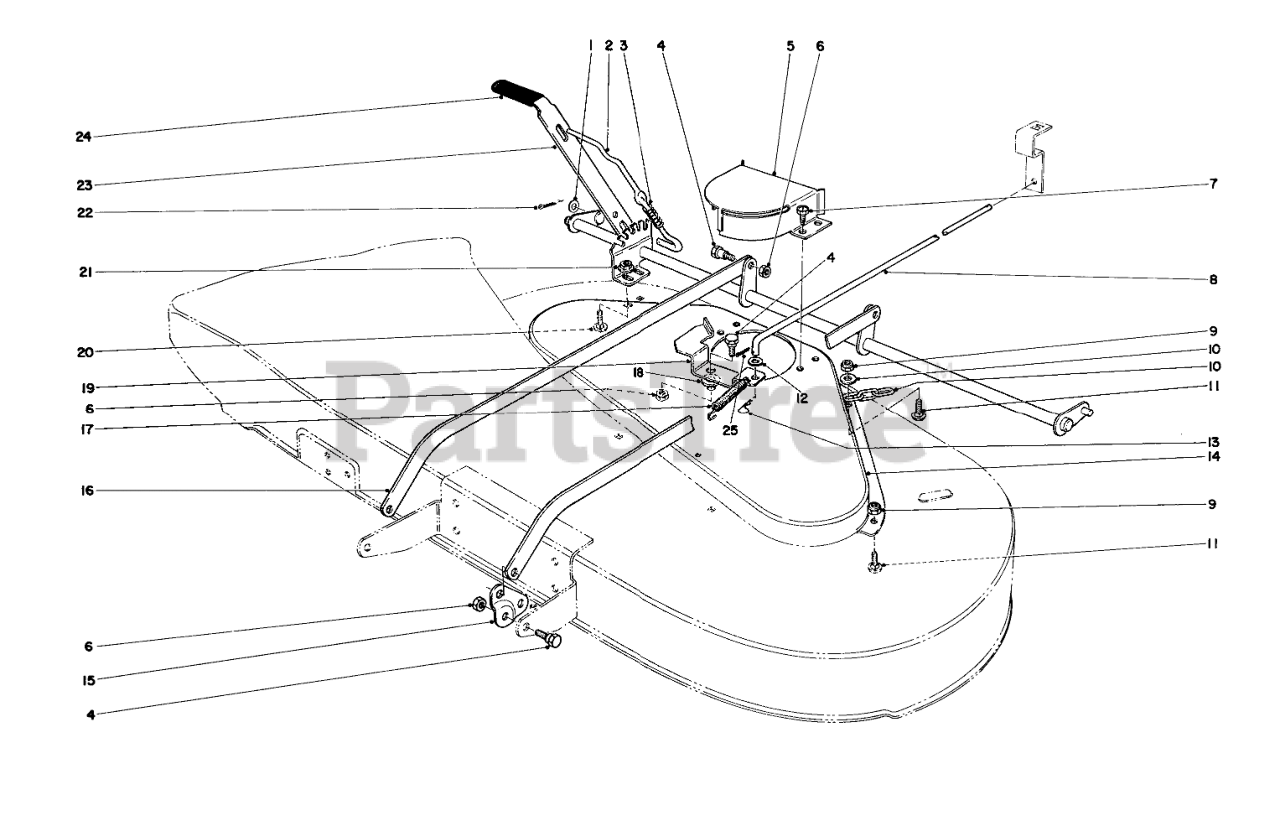

CUTTER HOUSING LINKAGE Parts Diagram

  • Title
1

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

2

Toro 11-2050

Latch Slide

$

$

Currently unavailable

3

Toro 11-1670

Spring

$

$

Currently unavailable

4

Toro 12-1450

Screw

$

$

Currently unavailable

5

Toro 12-3310

Cover Pulley

$

$

Currently unavailable

6

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

7

Toro 32104-17

SCREW-HWH

$1.49

$

In Stock, only 4 left!

0

8

Toro 19-2700

Blade Brake Rod

$

$

Currently unavailable

9

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 2 left!

0

10

Toro 11-1280

Chain

$

$

Currently unavailable

11

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

12

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

13

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

14

Toro 19-2730

Pulley Cover

$

$

Currently unavailable

15

Toro 12-1700

Blade Housing Pivot

$

$

Currently unavailable

16

Toro 19-5570

Parallel Bar

$

$

Currently unavailable

17

Toro 11-1700

Spring

$

$

Currently unavailable

18

Toro 19-2780

Washer

$

$

Currently unavailable

19

Toro 19-2690

Blade Brake Lever

$

$

Currently unavailable

20

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

21

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

22

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

23

Toro 12-1810

Shaft Assembly

$

$

Currently unavailable

24

Toro 11-3550

Grip Handle

$

$

Currently unavailable

25

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0
