56108 - Toro 32" Sportsman Rear-Engine Riding Mower, Recoil (SN: 003000001 - 003999999) (1973) CARBURETOR AND FUEL TANK ASSEMBLY Parts Diagram

32" Sportsman Rear-Engine Riding Mower, Recoil

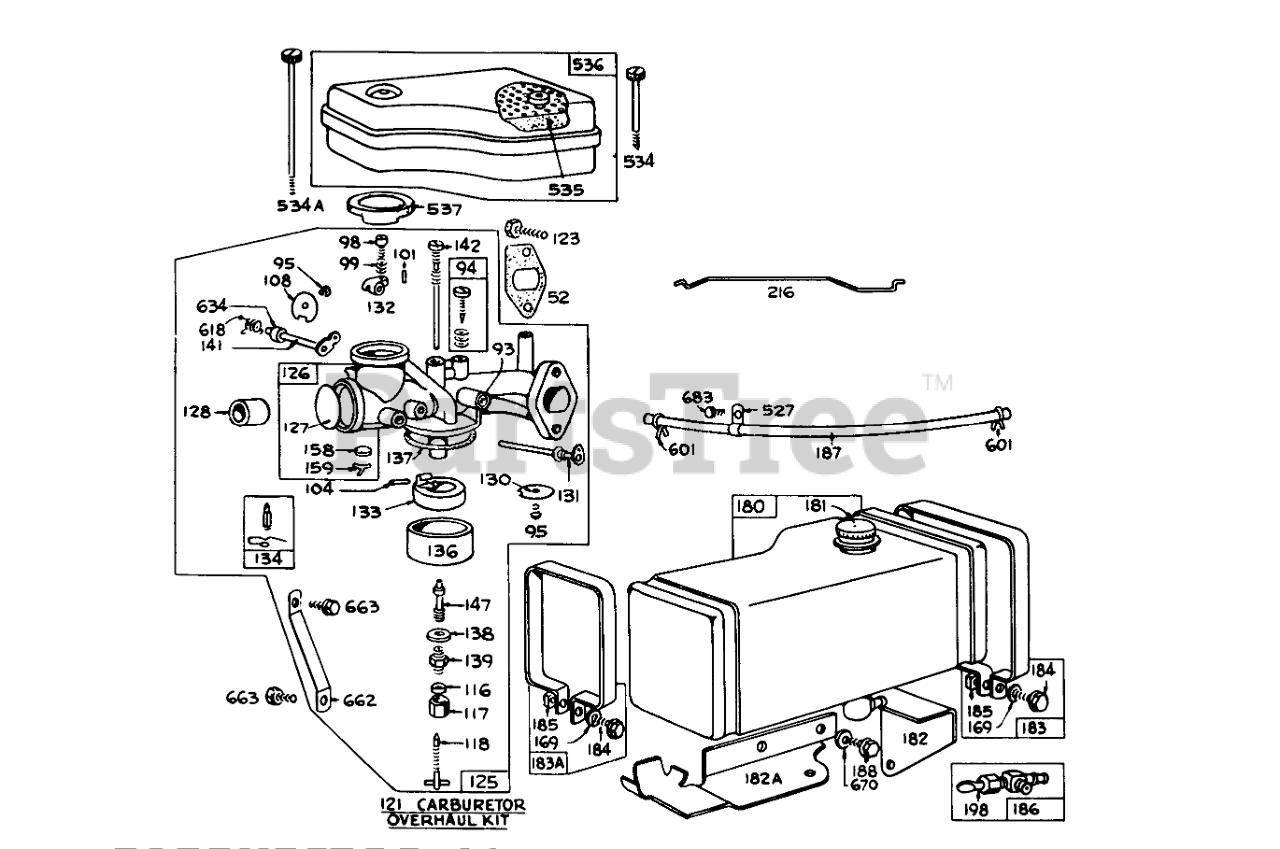

CARBURETOR AND FUEL TANK ASSEMBLY Parts Diagram

  • Title

52

Briggs & Stratton 270538

Gasket-Carburetor Mtg.
(Superseded to 692915)

Note: Included in Gasket Set-Part No. 299577

$5.49

$

In Stock, only 1 left!

0

93

Briggs & Stratton 23108

Bushing-Throttle Shaft
(Superseded to 691769)

$9.49

$

In Stock, only 2 left!

0

94

Briggs & Stratton 292681

Valve Assembly

Note: Included in Gasket Set-Part No. 299577

$11.99

$

In Stock, only 1 left!

0

94

Briggs & Stratton 292681

Valve Assembly

Note: Included in Carburetor Overhaul Kit-Part No. 299852

$11.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 93038

Screw, Throttle Valve Mtg. Sem
(Superseded to 691437)

$3.99

$

In Stock, only 3 left!

0

98

Briggs & Stratton 91920

Screw
(Superseded to 691615)

$3.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 26157

Spring
(Superseded to 693942)

$8.99

$

Usually ships in 2-12 days

0

101

Briggs & Stratton 93043

Pin
(Superseded to 691616)

$4.49

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 230896

Pin-Float
(Superseded to 691775)

Note: Included in Carburetor Overhaul Kit-Part No. 299852

$3.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 230896

Pin-Float
(Superseded to 691775)

Note: Included in Gasket Set-Part No. 299577

$3.99

$

In Stock, only 1 left!

0

108

Briggs & Stratton 222010

Valve

$7.99

$

Usually ships in 2-12 days

0

116

Briggs & Stratton 68677

Latch Bar

Note: Included in Carburetor Overhaul Kit-Part No. 299852

$3.49

$

Usually ships in 2-12 days

0

116

Briggs & Stratton 68677

Latch Bar

Note: Included in Gasket Set-Part No. 299577

$3.49

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 23118

Nut-Needle Valve Pkng.
(Superseded to 5023118)

Note: Included in Gasket Set-Part No. 299577

$7.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 23118

Nut-Needle Valve Pkng.
(Superseded to 5023118)

Note: Included in Carburetor Overhaul Kit-Part No. 299852

$7.99

$

Usually ships in 2-12 days

0

118

Toro 299762

Valve-Needle

Note: Included in Gasket Set-Part No. 299577

$

$

Currently unavailable

118

Toro 299762

Valve-Needle

Note: Included in Carburetor Overhaul Kit-Part No. 299852

$

$

Currently unavailable

121

Briggs & Stratton 299852

Carburetor OverhauI Kit

$

$

Not available

123

Briggs & Stratton 93357

Screw
(Superseded to 690953)

$5.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 390811

Carburetor Assembly
(Superseded to 491590)

$249.99

$

Usually ships in 2-12 days

0

126

Toro 390812

Body Assy.-Lower Carb.

$

$

Currently unavailable

127

Briggs & Stratton 221997

Plug

$4.99

$

In Stock, only 1 left!

0

128

Briggs & Stratton 211682

Venturi-Carburetor

$4.99

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 221986

Valve-Throltle

$7.99

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 299650

Shaft & Lever, Throttle
(Superseded to 491006)

$21.99

$

In Stock, only 2 left!

0

132

Briggs & Stratton 211712

Stop-Thottle

$8.49

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 299707

Float-Carburetor

$13.99

$

Usually ships in 2-12 days

0

134

Briggs & Stratton 299096

Valve-FuelInlet
(Superseded to 394681)

Note: Included in Carburetor Overhaul Kit-Part No. 299852

$7.99

$

In Stock, only 1 left!

0

134

Briggs & Stratton 299096

Valve-FuelInlet
(Superseded to 394681)

Note: Included in Gasket Set-Part No. 299577

$7.99

$

In Stock, only 1 left!

0

136

Briggs & Stratton 221995

Bowl-Float

$8.99

$

In Stock, Qty 6

0

137

Briggs & Stratton 270511

Gasket-Bowl

Note: Included in Gasket Set-Part No. 299577

$3.49

$

In Stock, Qty 20+

0

137

Briggs & Stratton 270511

Gasket-Bowl

Note: Included in Carburetor Overhaul Kit-Part No. 299852

$3.49

$

In Stock, Qty 20+

0

138

Briggs & Stratton 222014

Washer-Bowl
(Superseded to 690618)

Note: Included in Carburetor Overhaul Kit-Part No. 299852

$4.99

$

In Stock, Qty 11

0

138

Briggs & Stratton 222014

Washer-Bowl
(Superseded to 690618)

Note: Included in Gasket Set-Part No. 299577

$4.99

$

In Stock, Qty 11

0

139

Toro 230935

Retainer-Jet Needle

Note: Included in Gasket Set-Part No. 299577

$

$

Currently unavailable

139

Toro 230935

Retainer-Jet Needle

Note: Included in Carburetor Overhaul Kit-Part No. 299852

$

$

Currently unavailable

141

Briggs & Stratton 390684

Shaft and Lever

$16.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 299740

Nozzle-Carburator

Note: Included in Gasket Set-Part No. 299577

$15.99

$

In Stock, only 2 left!

0

142

Briggs & Stratton 299740

Nozzle-Carburator

Note: Included in Carburetor Overhaul Kit-Part No. 299852

$15.99

$

In Stock, only 2 left!

0

147

Briggs & Stratton 230932

Screw-Nozzle

Note: Included in Carburetor Overhaul Kit-Part No. 299852

$

$

Not available

147

Briggs & Stratton 230932

Screw-Nozzle

Note: Included in Gasket Set-Part No. 299577

$

$

Not available

158

Briggs & Stratton 27590

Filter-Carburetor Drain

$6.49

$

In Stock, only 1 left!

0

159

Briggs & Stratton 220521

Retainer, Carb. Drain Filter

$

$

Not available

169

Briggs & Stratton 90832

Washer-Lock
(Superseded to 22097GS)

$3.49

$

Usually ships in 2-12 days

0

180

Briggs & Stratton 390225

Tank Assy.-Fuel

$

$

Not available

181

Briggs & Stratton 293270

Cap Fuel Tank
(Superseded to 493982S)

$

$

Not available

182

Toro 222098

Bracket-Fuel Tank, R.H.

$

$

Currently unavailable

182A

Briggs & Stratton 222112

Bracket-Tank (L.H.)
(Superseded to 692867)

$23.99

$

Usually ships in 2-12 days

0

183

Briggs & Stratton 390406

Strap Assy.-Fuel Tank (RH.)
(Superseded to 698459)

$17.99

$

Usually ships in 2-12 days

0

183A

Briggs & Stratton 390405

Strap Assy.-Fuel Tank (LH.)
(Superseded to 692030)

$16.99

$

Usually ships in 2-12 days

0

184

Toro 93614

Screw, Hex Hd.

$

$

Currently unavailable

185

Briggs & Stratton 90970

Nut-Square
(Superseded to 690279)

$3.99

$

Usually ships in 2-12 days

0

186

Briggs & Stratton 390303

Outlet-Fuel Tank
(Superseded to 492649)

$

$

Not available

187

Briggs & Stratton 296004

Fuel-Hose
(Superseded to 791745)

$10.99

$

In Stock, Qty 20+

0

188

Briggs & Stratton 93535

Crew
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

198

Briggs & Stratton 293934

Valve-Shut Off
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

216

Briggs & Stratton 261117

Link-Choke

$6.99

$

Usually ships in 2-12 days

0

527

Briggs & Stratton 221428

Clamp
(Superseded to 690394)

$4.99

$

Usually ships in 2-12 days

0

534

Briggs & Stratton 93323

Screw-AirCleaner

$7.49

$

In Stock, only 1 left!

0

534A

Briggs & Stratton 93622

Screw Air Cleaner

$6.49

$

In Stock, Qty 10

0

535

Briggs & Stratton 270528

Element-Air Cleaner
(Superseded to 270528S)

$15.99

$

In Stock, Qty 13

0

536

Briggs & Stratton 390379

Cleaner Assy.-Air

$

$

Not available

537

Briggs & Stratton 270539

Gasket-Air Cleaner

$8.99

$

In Stock, only 1 left!

0

601

Briggs & Stratton 93053

Clamp-Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

618

Briggs & Stratton 261116

Spring Choke

$

$

Not available

634

Briggs & Stratton 270382

Washer
(Superseded to 691869)

$3.99

$

In Stock, only 3 left!

0

662

Briggs & Stratton 222027

Bracket-Carburetor
(Superseded to 224440)

$4.49

$

In Stock, only 1 left!

0

663

Briggs & Stratton 93572

Screw
(Superseded to 690664)

$5.49

$

In Stock, only 1 left!

0

670

Toro 93682

Spacer-Fuel Tank

$

$

Currently unavailable

683

Briggs & Stratton 93351

Screw
(Superseded to 691082)

$4.99

$

In Stock, only 1 left!

0
