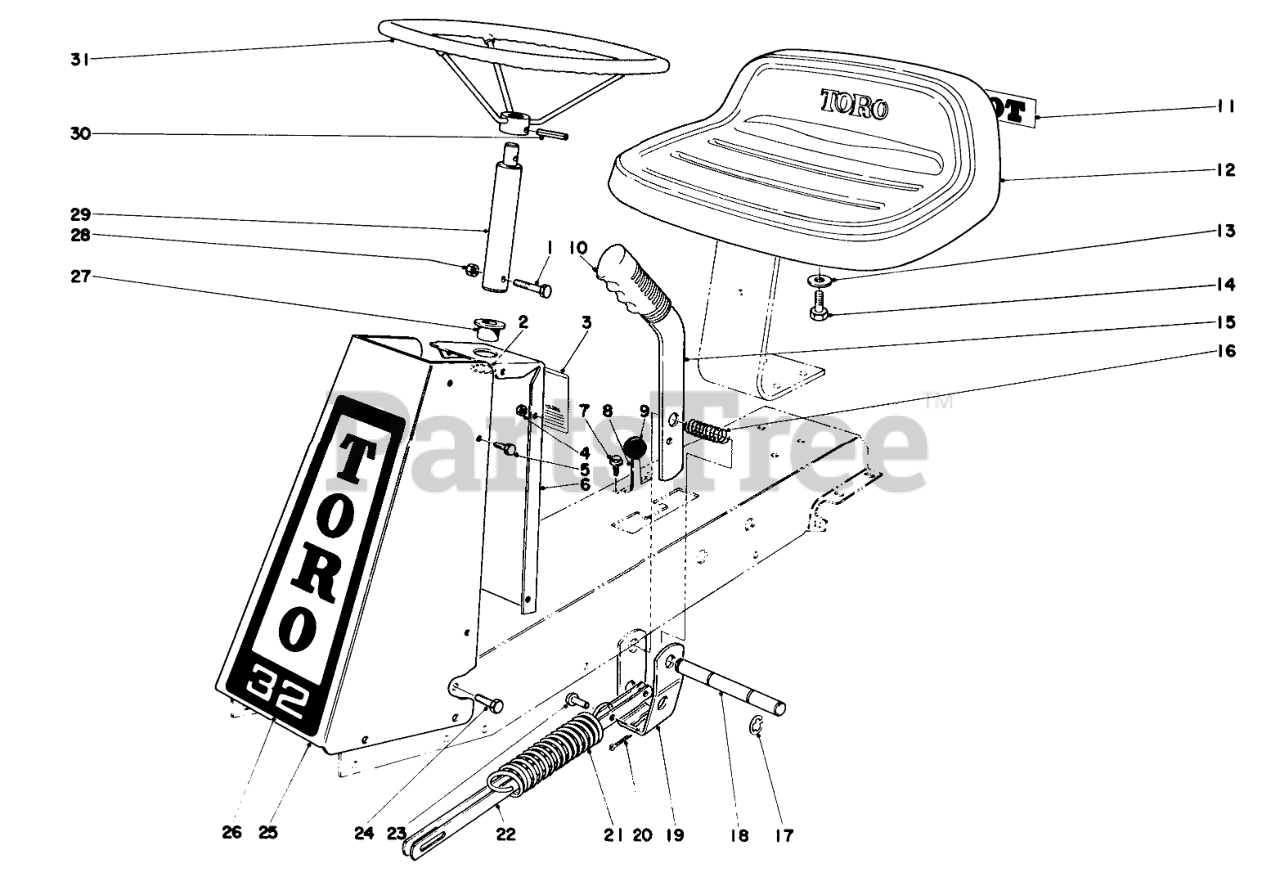

56108 - Toro 32" Sportsman Rear-Engine Riding Mower, Recoil (SN: 003000001 - 003999999) (1973) BLADE CLUTCH AND STEERING WHEEL ASSEMBLY Parts Diagram

32" Sportsman Rear-Engine Riding Mower, Recoil

BLADE CLUTCH AND STEERING WHEEL ASSEMBLY Parts Diagram

  • Title
1

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

2

Toro 32151-37

Retaining Ring

$

$

Currently unavailable

3

Toro 12-2900

Decal-Caution

$

$

Currently unavailable

4

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 2 left!

0

5

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro 12-5480

Panel Assem. (Incl. Ref. Nos. 2 & 27)

$

$

Currently unavailable

7

Toro 32140-76

Screw
(Superseded to 32144-8)

$6.99

$

Usually ships in 3-6 days

0

8

Toro 11-3570

Throttle Control

$

$

Not available

9

Toro 233-25

KNOB-CONTROL

$5.49

$

In Stock, only 1 left!

0

10

Toro 11-3580

Grip Handle

$

$

Currently unavailable

11

Toro 12-2940

Decal

$

$

Currently unavailable

12

$

$

Currently unavailable

13

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 3235-7

HEX HD CAPSCREW

$

$

Not available

15

Toro 12-6620

Blade Clutch Handle

$

$

Currently unavailable

16

Toro 11-1650

Spring

$

$

Currently unavailable

17

Toro 32120-19

E-RING

$2.99

$

In Stock, Qty 14

0

18

Toro 12-6640

Blade Handle Shaft

$

$

Currently unavailable

19

Toro 12-6630

Clutch Handle Pivot

$

$

Currently unavailable

20

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

21

Toro 11-1620

Spring

$

$

Not available

22

Toro 12-6650

Tie Bar Blade Clutch

$

$

Currently unavailable

23

Toro 283-30

PIN-CLEVIS

$0.99

$

Usually ships in 3-6 days

0

24

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

25

Toro 11-2610

Cover, Steering Column

$

$

Currently unavailable

26

Toro 12-4990

Decal

$

$

Currently unavailable

27

Toro 12-5470

Bushing

$

$

Not available

28

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

29

Toro 12-1460

Shaft Steering

$

$

Currently unavailable

30

Toro 32121-15

PIN-ROLL

$1.99

$

In Stock, Qty 7

0

31

Toro 7-3722

Steering Wheel

$

$

Currently unavailable
