56108 - Toro 32" Sportsman Rear-Engine Riding Mower, Recoil (SN: 002000001 - 002999999) (1972) ENGINE ASSEMBLY Parts Diagram

32" Sportsman Rear-Engine Riding Mower, Recoil

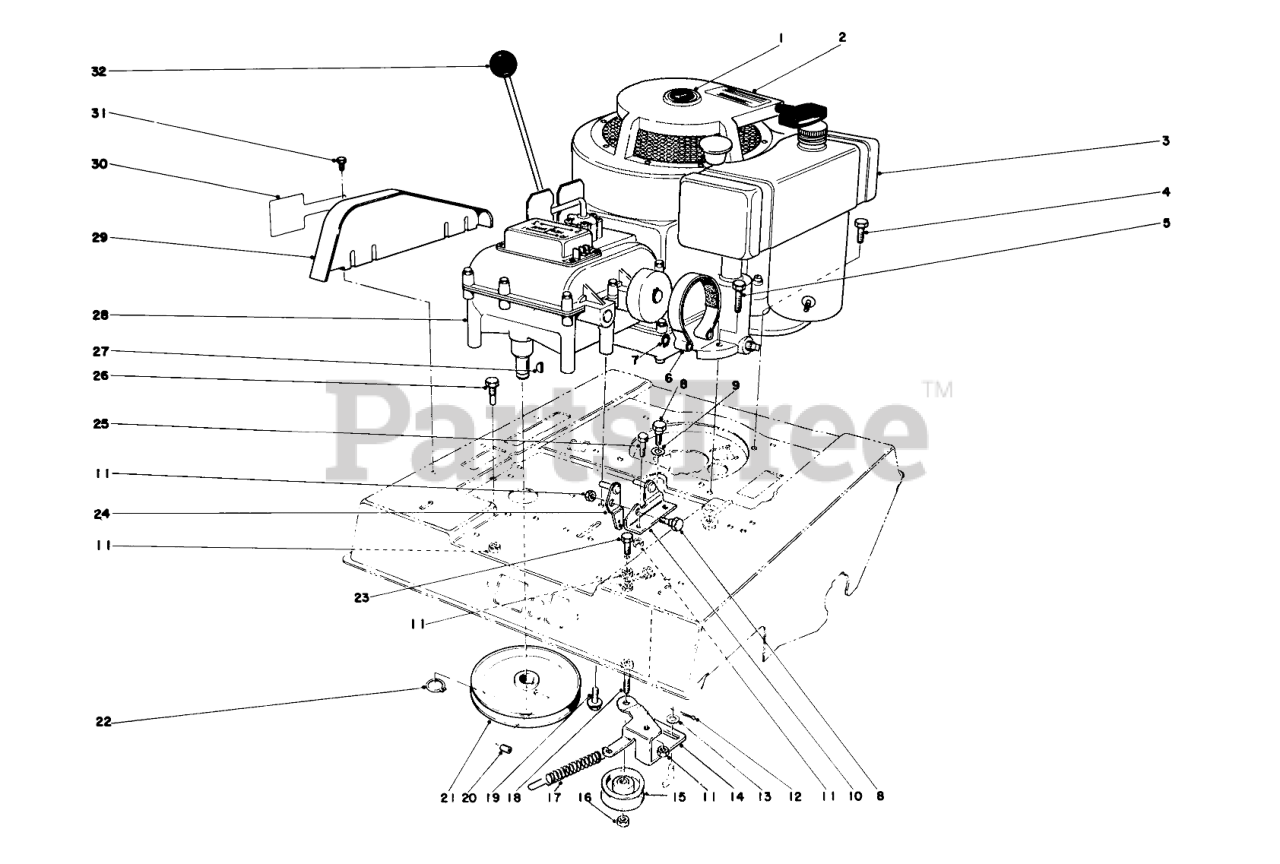

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 11-3410

Decal

$

$

Currently unavailable

2

Toro 11-3450

Caution Decal

$

$

Currently unavailable

3

Toro 221-412

Engine

$

$

Currently unavailable

Toro 221-411

Engine for (Model 56173)

Note: Not illustrated

$

$

Currently unavailable

4

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

5

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

6

Toro 11-1890

Brake Band

$

$

Currently unavailable

7

Toro 32151-3

RING-GRIP

$6.99

$

In Stock, only 3 left!

0

8

Toro 12-1450

Screw

$

$

Currently unavailable

9

Toro 11-5180

Washer
(Superseded to 92-4075)

$421.99

$

Usually ships in 3-6 days

0

10

Toro 11-1910

Bracket

$

$

Currently unavailable

11

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

12

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

13

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

14

Toro 12-6680

Idler Lever

$

$

Not available

15

Toro 7-0056

PULLEY IDLER

$

$

Not available

16

Toro 32152-2

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 17

0

17

Toro 11-1690

Clutch Spring

$

$

Not available

18

Toro 3274-45

Capscrew

$

$

Currently unavailable

19

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

20

Toro 3246-1

SCREW-SET

$8.49

$

Usually ships in 3-6 days

0

21

Toro 11-2270

Pulley

$

$

Currently unavailable

22

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, Qty 20+

0

23

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

24

Toro 12-6360

Pivot

$

$

Currently unavailable

25

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

26

Toro 11-3900

Screw

$

$

Currently unavailable

27

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, Qty 20+

0

28

Toro 12-2760

Transmission

$

$

Currently unavailable

29

Toro 11-2280

Chain Guard

$

$

Not available

30

Toro 11-3430

Decal Shift Pattern

$

$

Currently unavailable

31

Toro 32104-95

SCREW-HWH

$0.99

$

Usually ships in 3-6 days

0

32

$13.99

$

Usually ships in 3-6 days

0
