56100 (732) - Toro Sportsman Rear-Engine Riding Mower (SN: 005000001 - 005999999) (1975) FRAME ASSEMBLY Parts Diagram

Sportsman Rear-Engine Riding Mower

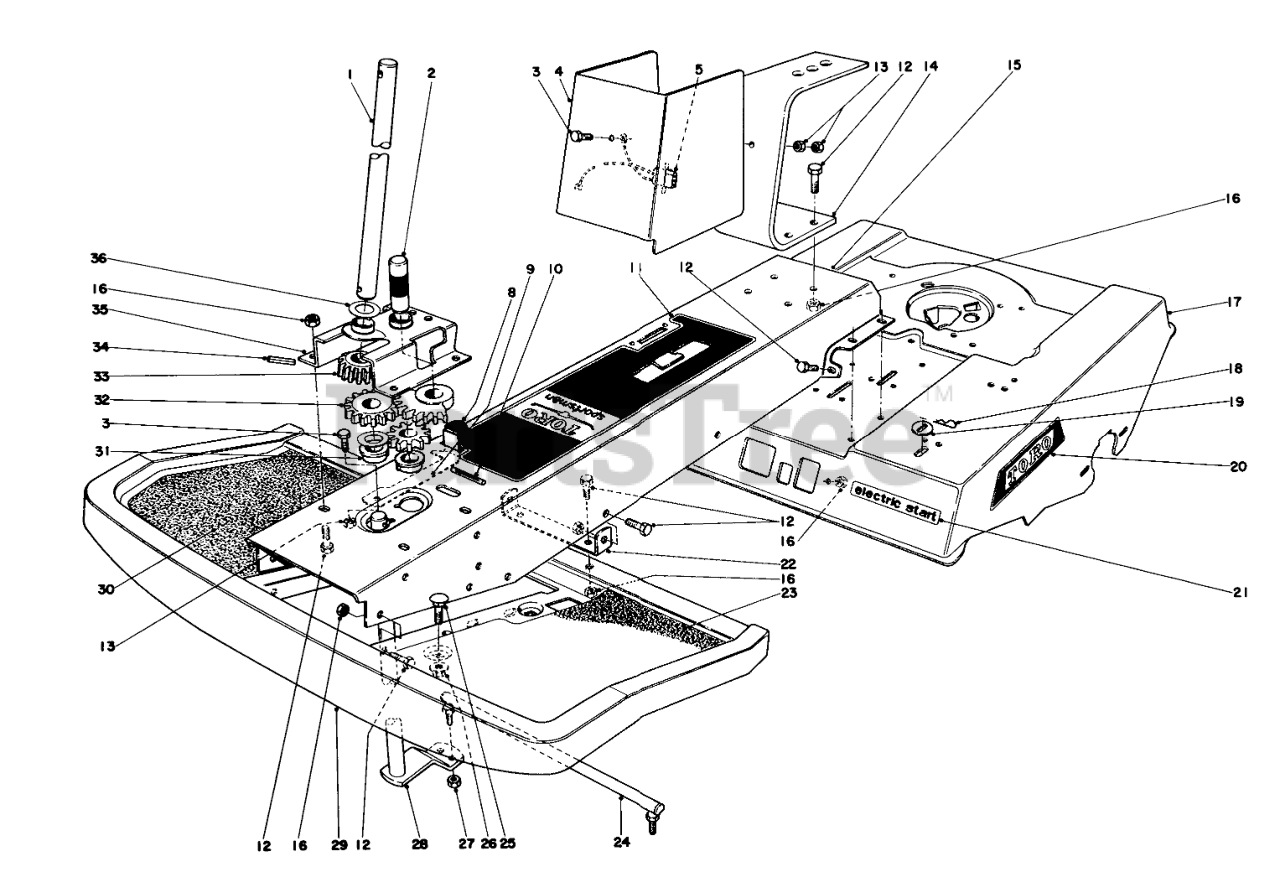

FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro 11-2670

Shaft Upper

$

$

Not available

2

Toro 11-1860

Steering Idler Ass-y.

$

$

Not available

3

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 11-2940

Cover Seat

$

$

Currently unavailable

5

Toro 11-2750

Wire (Model 56150)

$

$

Currently unavailable

8

Toro 11-3560

Parking Brake Tip

$

$

Currently unavailable

9

Toro 11-2210

Parking Brake Spring

$

$

Currently unavailable

10

Toro 32121-85

Groove Pin
(Superseded to 3285-17)

$

$

Not available

11

Toro 11-3480

Decal (Model 56100)

$

$

Currently unavailable

Toro 11-5250

Decal (Model 56150)

$

$

Currently unavailable

12

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

13

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 12

0

14

Toro 11-2380

Seat Spring

$

$

Currently unavailable

15

Toro 11-2570

Center Frame

$

$

Currently unavailable

16

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

17

Toro 11-1810

Frame

$

$

Currently unavailable

18

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

19

Toro 11-1310

Washer

$

$

Currently unavailable

20

Toro 11-3440

Decal

$

$

Currently unavailable

21

Toro 11-3400

Decal (Model 56150)

$

$

Currently unavailable

22

Toro 11-1590

Support

$

$

Currently unavailable

23

Toro 11-3390

Foot Pad L. H.

$

$

Currently unavailable

24

Toro 11-1870

Ball Joint

$

$

Currently unavailable

25

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 5

0

26

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

27

Toro 32127-21

Nut
(Superseded to 3296-13)

$4.49

$

In Stock, Qty 20+

0

28

Toro 11-2020

Shaft

$

$

Not available

29

Toro 11-2650

Foot Rest

$

$

Currently unavailable

30

Toro 11-3380

Foot Pad R. H.

$

$

Currently unavailable

31

Toro 11-1510

Bushing
(Superseded to 19-1890)

$

$

Not available

32

$

$

Currently unavailable

33

Toro 11-2060

STEERING PINION

$

$

Not available

34

Toro 32121-4

PIN-ROLL, SLOTTED

$3.99

$

Usually ships in 3-6 days

0

35

Toro 11-2290

Bracket Steering Support

$

$

Not available

36

Toro 11-1330

Washer

$

$

Currently unavailable
