56100 (732) - Toro Sportsman Rear-Engine Riding Mower (SN: 003000001 - 003999999) (1973) TRANSMISSION ASSEMBLY Parts Diagram

Sportsman Rear-Engine Riding Mower

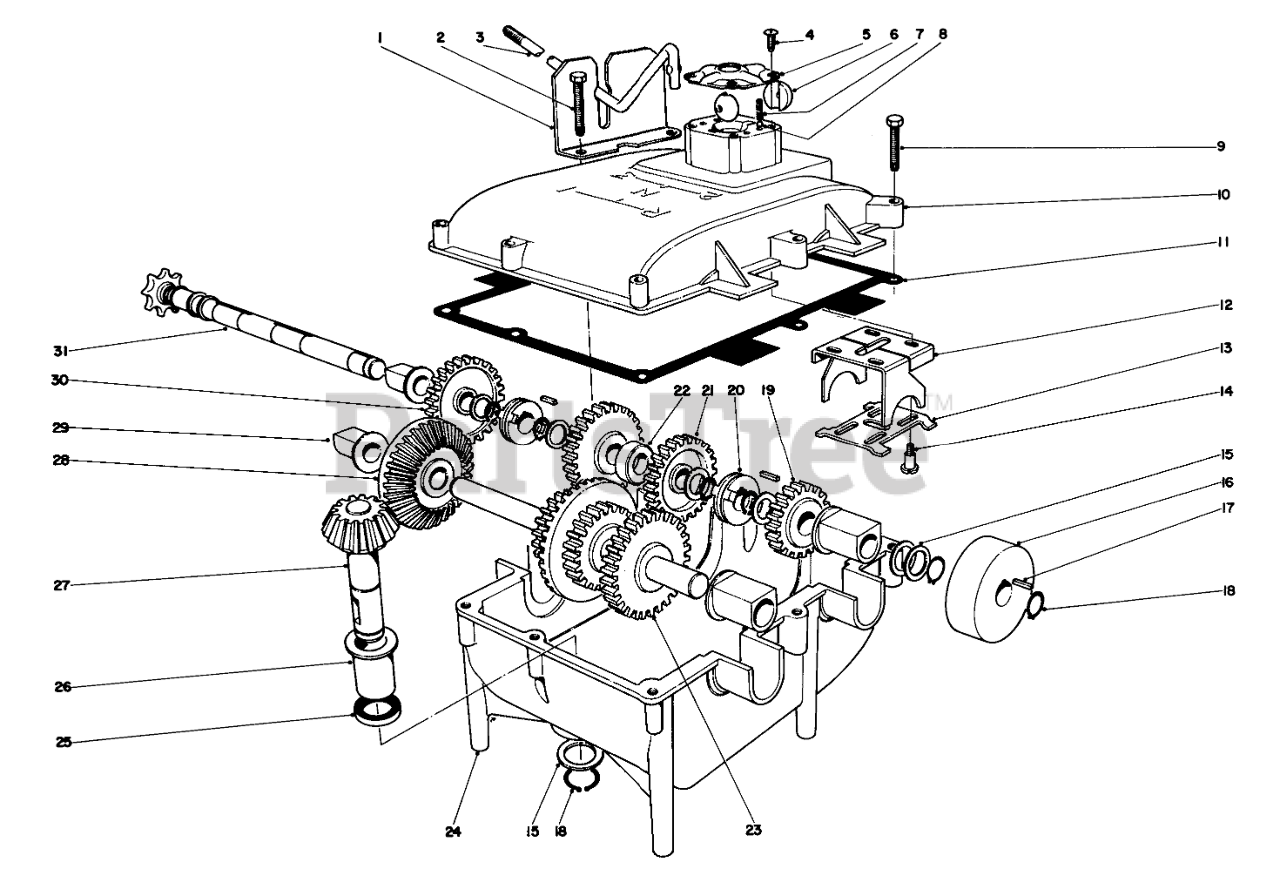

TRANSMISSION ASSEMBLY Parts Diagram

  • Title

1

Toro 2119-503

Bracket Shift

$

$

Not available

2

Toro 32140-84

Screw

$

$

Currently unavailable

3

Toro 2119-519

Shift Rod
(Superseded to 57-9970)

$

$

Not available

4

Toro 2119-528

Screw

$

$

Currently unavailable

5

Toro 2119-518

Cap Shift

$

$

Currently unavailable

6

Toro 233-21

KNOB

$13.99

$

Usually ships in 3-6 days

0

7

Toro 2119-508

Spring

$

$

Not available

8

Toro 2119-507

Ball-Detent

$

$

Not available

9

Toro 32140-83

Screw

$

$

Currently unavailable

10

Toro 2119-515

Upper Gear Cover Housing

$

$

Currently unavailable

11

Toro 2119-514

Gasket

$

$

Currently unavailable

12

Toro 2119-509

Yoke Shift

$

$

Currently unavailable

13

Toro 2119-516

Backing Plate

$

$

Currently unavailable

14

Toro 2119-529

Screw Shoulder

$

$

Not available

15

Toro 2119-512

Flat Washer

$

$

Currently unavailable

16

Toro 2119-502

Brake Drum

$

$

Not available

17

Toro 2119-526

Square Key

$

$

Currently unavailable

18

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, Qty 20+

0

19

Toro 2119-520

Gear-24 Teeth

$

$

Currently unavailable

20

Toro 2119-523

Dog Driving

$

$

Currently unavailable

21

Toro 2119-521

Gear-30 Teeth

$

$

Not available

22

Toro 2119-522

Spacer

$

$

Currently unavailable

23

Toro 2119-511

Assembly-Drive Shaft

$

$

Currently unavailable

24

Toro 2119-513

Housing Gear

$

$

Currently unavailable

25

Toro 2119-505

Grease Seal

$

$

Not available

26

Toro 2119-506

Bushing

$

$

Not available

27

Toro 2119-504

Assembly-Pinion Shaft

$

$

Currently unavailable

28

Toro 2119-510

Bevel Gear

$

$

Not available

29

Toro 2119-527

Bearing

$

$

Currently unavailable

30

Toro 2119-524

Gear 36 Tooth

$

$

Currently unavailable

31

Toro 2119-525

Shaft Sprocket

$

$

Not available
