56100 (732) - Toro Sportsman Rear-Engine Riding Mower (SN: 003000001 - 003999999) (1973) CUTTER HOUSING LINKAGE Parts Diagram

Sportsman Rear-Engine Riding Mower

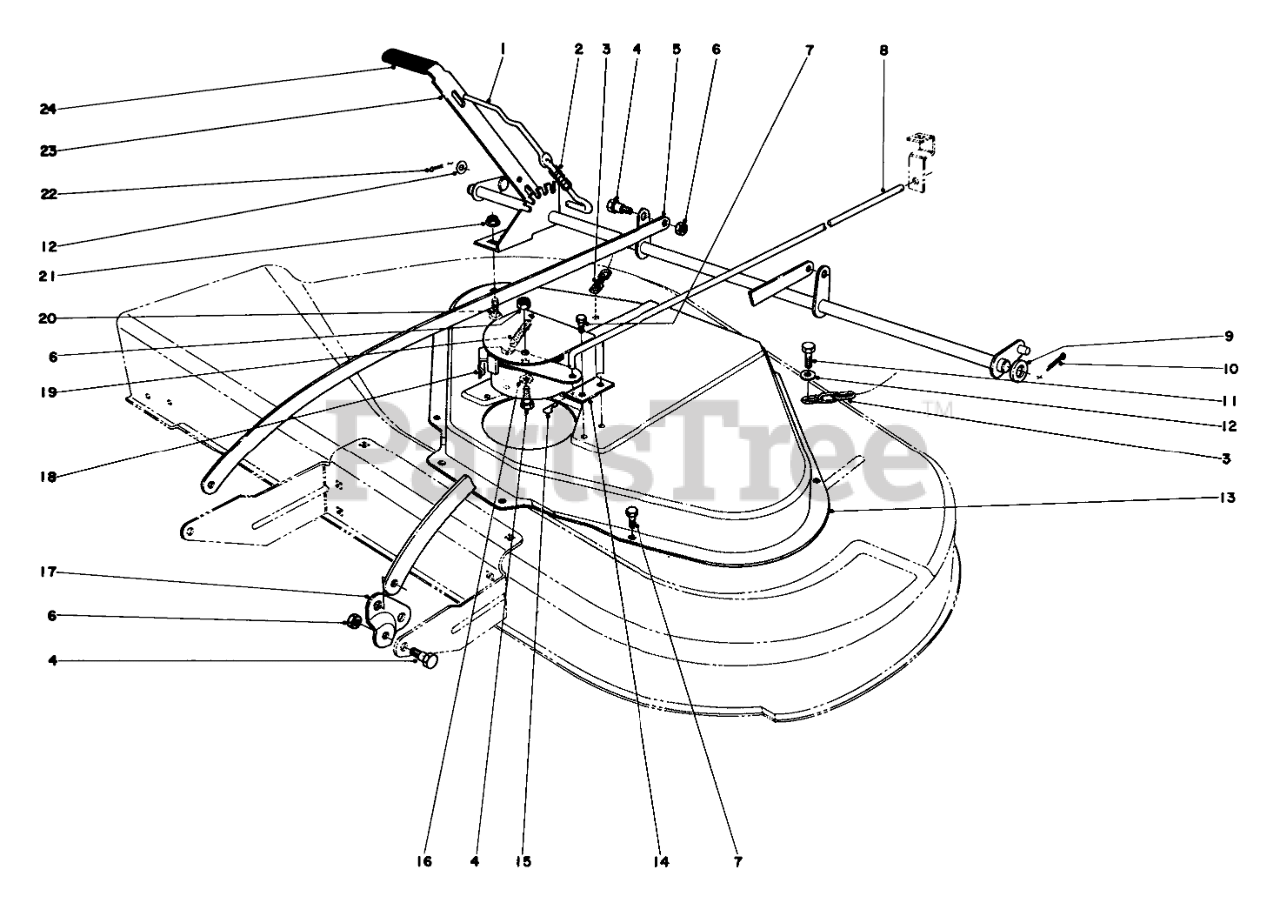

CUTTER HOUSING LINKAGE Parts Diagram

  • Title
1

Toro 11-2050

Latch Slide

$

$

Currently unavailable

2

Toro 11-1670

Spring

$

$

Currently unavailable

3

Toro 11-1400

Chain

$

$

Currently unavailable

4

Toro 11-1660

Screw

$

$

Not available

5

Toro 11-2430

Lift Bar

$

$

Currently unavailable

6

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

7

Toro 32104-17

SCREW-HWH

$1.49

$

In Stock, only 4 left!

0

8

Toro 11-3000

Brake Rod

$

$

Currently unavailable

9

Toro 11-6240

WASHER

$

$

Not available

10

Toro 3272-17

PIN-COTTER

$2.99

$

In Stock, Qty 5

0

11

Toro 32104-95

SCREW-HWH

$0.99

$

Usually ships in 3-6 days

0

12

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 11-2640

Housing Cover

$

$

Currently unavailable

14

Toro 11-2030

Belt Guard

$

$

Currently unavailable

15

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

16

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 12

0

17

Toro 11-1480

Pivot

$

$

Currently unavailable

18

Toro 11-1970

Brake Lever

$

$

Currently unavailable

19

Toro 11-1640

Spring

$

$

Not available

20

Toro 3230-15

SCREW-CARR

$1.99

$

In Stock, only 4 left!

0

21

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

22

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

23

Toro 11-2580

Height Adj. Shaft

$

$

Currently unavailable

24

Toro 11-3550

Grip Handle

$

$

Currently unavailable
