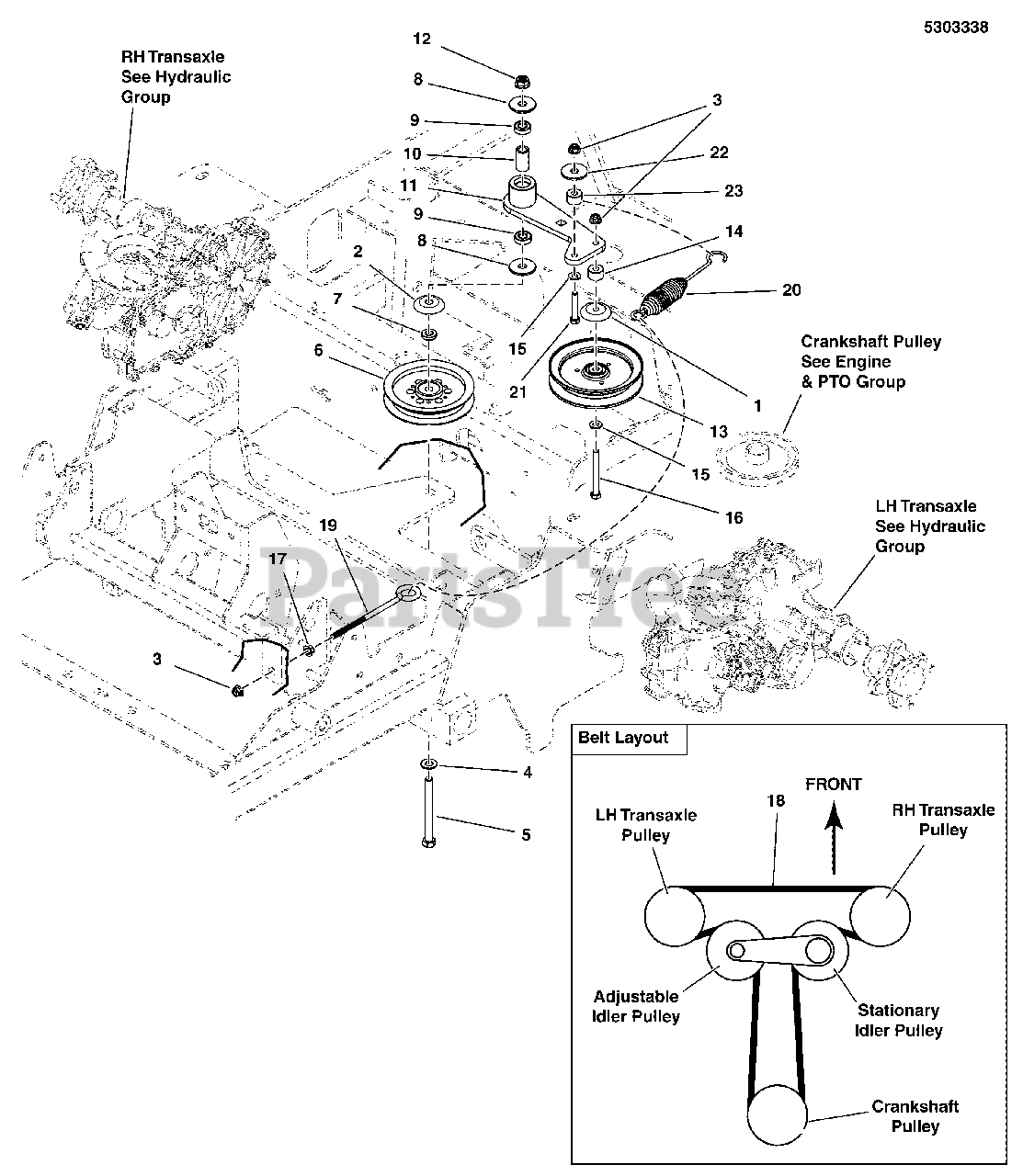

560Z (5901563) - Snapper 61"/155cm Zero-Turn Mower, 24hp Transaxle Drive Group Parts Diagram

61"/155cm Zero-Turn Mower, 24hp

Transaxle Drive Group Parts Diagram

  • Title
1

Snapper 5103787YP

SHIELD, BEARING PULLEY, 3/8ID, CZ

$7.49

$

In Stock, only 1 left!

0

2

Snapper 5101103SM

SHIELD, PULLEY BEARING, CZ

$10.99

$

In Stock, Qty 20+

0

3

Snapper 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

4

Snapper 5025158SM

WASHER, 1/2

$3.99

$

In Stock, Qty 8

0

5

Snapper 5025017X40SM

BOLT, 1/2-13 X 5" GD5 YZ

$6.49

$

In Stock, only 1 left!

0

6

Snapper 5103764YP

PULLEY, IDLER 5"OD .500ID, .75W STL

$81.99

$

In Stock, only 1 left!

0

7

Snapper 5100520SM

SPACER, .52 X 1.00 X .22, PM, CZ

$6.49

$

In Stock, only 2 left!

0

8

Snapper 5103262YP

SPACER, Idler Arm

$7.99

$

In Stock, Qty 15

0

9

Snapper 7078243YP

BEARING, Ball

$10.99

$

In Stock, Qty 13

0

10

$7.99

$

In Stock, Qty 7

0

11

Snapper 5411277AYP

WELD, IDLER ARM, PUMP DRIVE - BLK

$100.99

$

In Stock, only 1 left!

0

12

Snapper 5025396SM

NUT, Hex Flange, 1/2-13

$3.49

$

In Stock, only 2 left!

0

13

Snapper 5103789YP

PULLEY, C-SEC, V-IDLER, 6.25"ODX3/8ID

$85.99

$

In Stock, Qty 6

0

14

$7.49

$

In Stock, Qty 6

0

15

Snapper 5025293SM

WASHER, 3/8" GR. 9 FLAT

$3.99

$

In Stock, Qty 5

0

16

Snapper 5025013X20SM

BOLT, 3/8-16 X 2-1/2"
(Superseded to 703873)

$4.49

$

In Stock, only 2 left!

0

17

Snapper 5060078SM

GUARD HOLD DOWN, Complete (includes Ref 11-14)

$22.99

$

Usually ships in 2-12 days

0

18

Snapper 5105188YP

BELT, SPA-SEC, 92" EL, ARAMID, WRAPED

$59.99

$

In Stock, only 1 left!

0

19

Snapper 5021811SM

EYEBOLT, 3/8-16 X 8, 3 THRD, 1 EYE, CZ

$8.49

$

In Stock, Qty 12

0

20

Snapper 5100632YP

SPRING-EXT, 1.25OD X 9.3LG X .142WR, BLK

Note: (COIL-TO-COIL MEASUREMENT: 5" (12.7 CM)

$38.99

$

Usually ships in 2-12 days

0

21

Snapper 5025013X18SM

CAPSCREW, Hex Head, 3/8-16 X 1-3/4

$3.99

$

In Stock, only 4 left!

0

22

Snapper 5025165SM

WASHER, Fender, 3/8

$3.99

$

In Stock, only 2 left!

0

23

Snapper 5020923YP

SPACER, SHOULDER

$5.99

$

In Stock, only 1 left!

0
