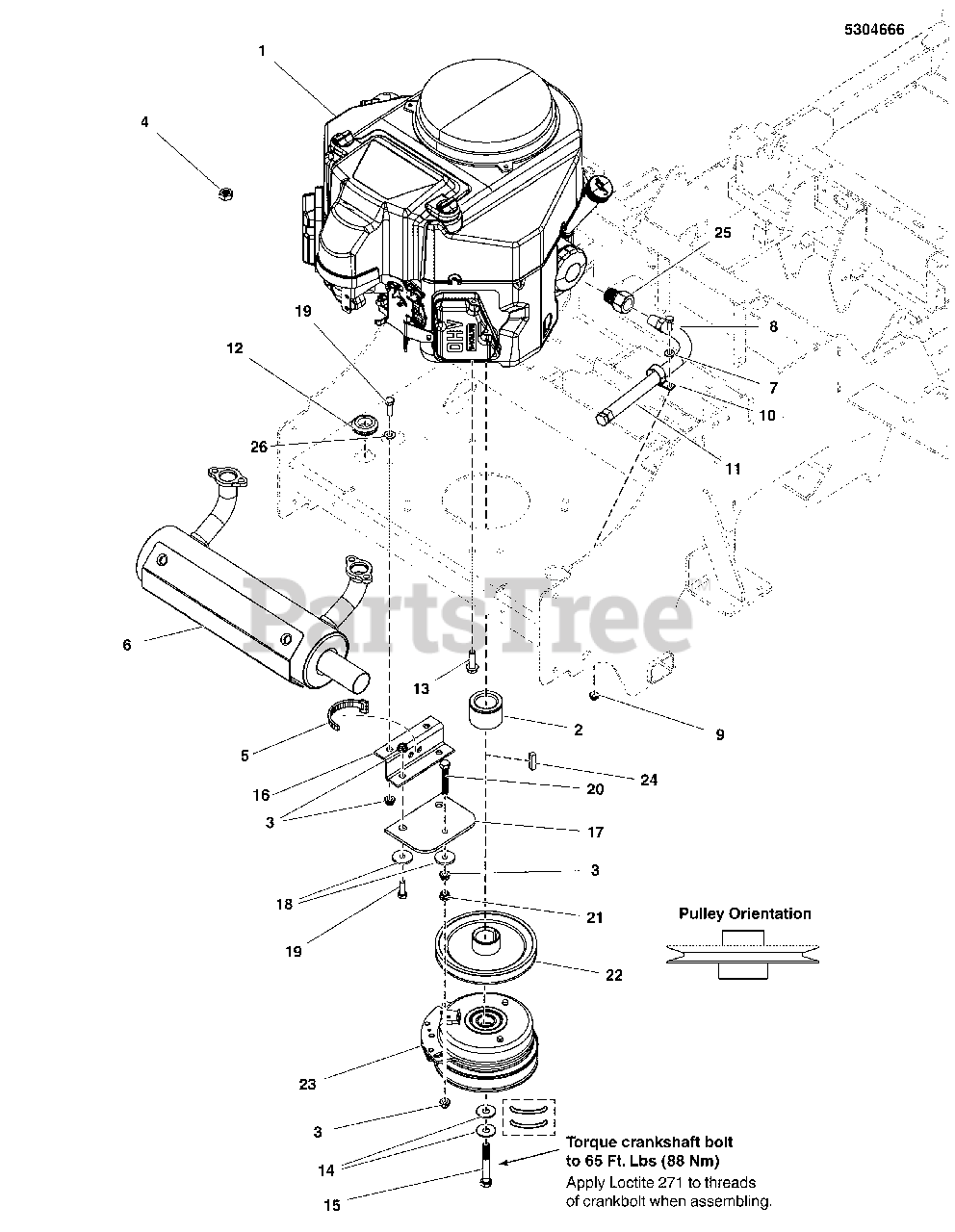

560Z (5901558) - Snapper 61"/155cm Zero-Turn Mower, 24hp Engine & PTO Group - Kawasaki Parts Diagram

61"/155cm Zero-Turn Mower, 24hp

Engine & PTO Group - Kawasaki Parts Diagram

  • Title

1

Snapper FR730V-AS25-R

ENGINE, 24HP, KAWI, FR730V, 1-1/8 CRANK

$

$

Currently unavailable

2

SPACER, Crankshaft

Note: (S/N: 2017764541 & Below) (Refer to Note: *)

$

$

Not available

2

Snapper 5047033SM

SPACER, 1.13 X 1.75 X 1.03, CZ

Note: (S/N: 2017764542 & Above)

$13.99

$

Usually ships in 2-12 days

0

3

Snapper 703115

NUT, Flange Nylock, 5/16-18

Note: (5025392)

$3.49

$

In Stock, Qty 20+

0

4

Snapper 5025309SM

NUT, 3/8-24 HEX JAM (SV)

$2.99

$

Usually ships in 2-12 days

0

5

Snapper 5021030SM

TIE, 6" Self-Locking

$2.99

$

In Stock, only 3 left!

0

6

Snapper 5104326YP

MUFFLER, KAWI, HORIZONTAL, 5" CAN

$207.99

$

In Stock, only 1 left!

0

7

Snapper 703332

WASHER, Flat, 1/4

Note: (5025154)

$4.49

$

In Stock, Qty 20+

0

8

Snapper 5025010X6SM

CAPSCREW, Hex Head, 1/4-20 x 3/4 (stiffener to top of cover)

$3.99

$

In Stock, Qty 20+

0

9

Snapper 703463

NUT, Flange Nylock , 1/4-20

Note: (5025391)

$4.49

$

In Stock, Qty 20+

0

10

Snapper 5021500SM

CLAMP, VINYL INSULATED, 1.00

$3.99

$

Usually ships in 2-12 days

0

11

Snapper 5048681SM

HOSE, OIL DRAIN

$18.99

$

Usually ships in 2-12 days

0

12

Snapper 5021379SM

GROMMET, 7/8"

$6.99

$

Usually ships in 2-12 days

0

13

Snapper 5025532YP

BOLT,Hex Flange, 3/8-16 X 1-1/4, GR5
(Superseded to 84003591)

Note: (Torque engine mounting bolts to 17 ft-lbs (23 Nm)

$3.49

$

In Stock, only 4 left!

0

14

Snapper 5025585YP

BELLEVILLE, WASHER, 1.1875 X .442 X .089

$4.49

$

In Stock, only 4 left!

0

15

BOLT, Crankshaft

Note: (S/N: 2017764541 & Below) (Refer to Note: *)

$

$

Not available

15

Snapper 5102865YP

BOLT, CRANKSHAFT,7/16-20X2-3/4, GD8

Note: (S/N: 2017764542 & Above) (Torque clutch mounting bolt to 65 ft-lbs (88 Nm)

$5.49

$

In Stock, only 2 left!

0

16

Snapper 5410367AYP

ANCHOR, CLUTCH, IS600-IS700 - BLK

$17.99

$

In Stock, only 1 left!

0

17

Snapper 5043636SM

PAD, Clutch Anchor

$11.99

$

Usually ships in 2-12 days

0

18

Snapper 5044617SM

WASHER, CLUTCH ANCHOR, 5/16

$8.49

$

In Stock, only 2 left!

0

19

Snapper 703570

CAPSCREW, Hex Head, 5/16-18 x 1 1/4

$4.99

$

In Stock, Qty 7

0

20

Snapper 5025055X18YP

BOLT, 5/16-18 X 2-1/4

$3.99

$

In Stock, only 1 left!

0

21

Snapper 5025127SM

NUT, Hex Serrated Flange, 5/16-18,

$3.49

$

In Stock, only 4 left!

0

22

Snapper 5101338YP

PULLEY, PUMP DRIVE, 4.857 OB X 1-1/8

$46.99

$

Usually ships in 2-12 days

0

23

Snapper 5105087YP

CLUTCH, WARNER, 125 FT LBS, 1-1/8" BORE

$420.99

$

Usually ships in 2-12 days

0

24

Snapper 5022726YP

KEY 1/4 SQ X 1 1/2 LONG

$4.99

$

In Stock, only 2 left!

0

25

Snapper 5022234SM

ADAPTER, Oil Drain

$15.99

$

Usually ships in 2-12 days

0

26

Snapper 703302

WASHER, Flat, 5/16

Note: (5025155)

$4.49

$

In Stock, Qty 20+

0
