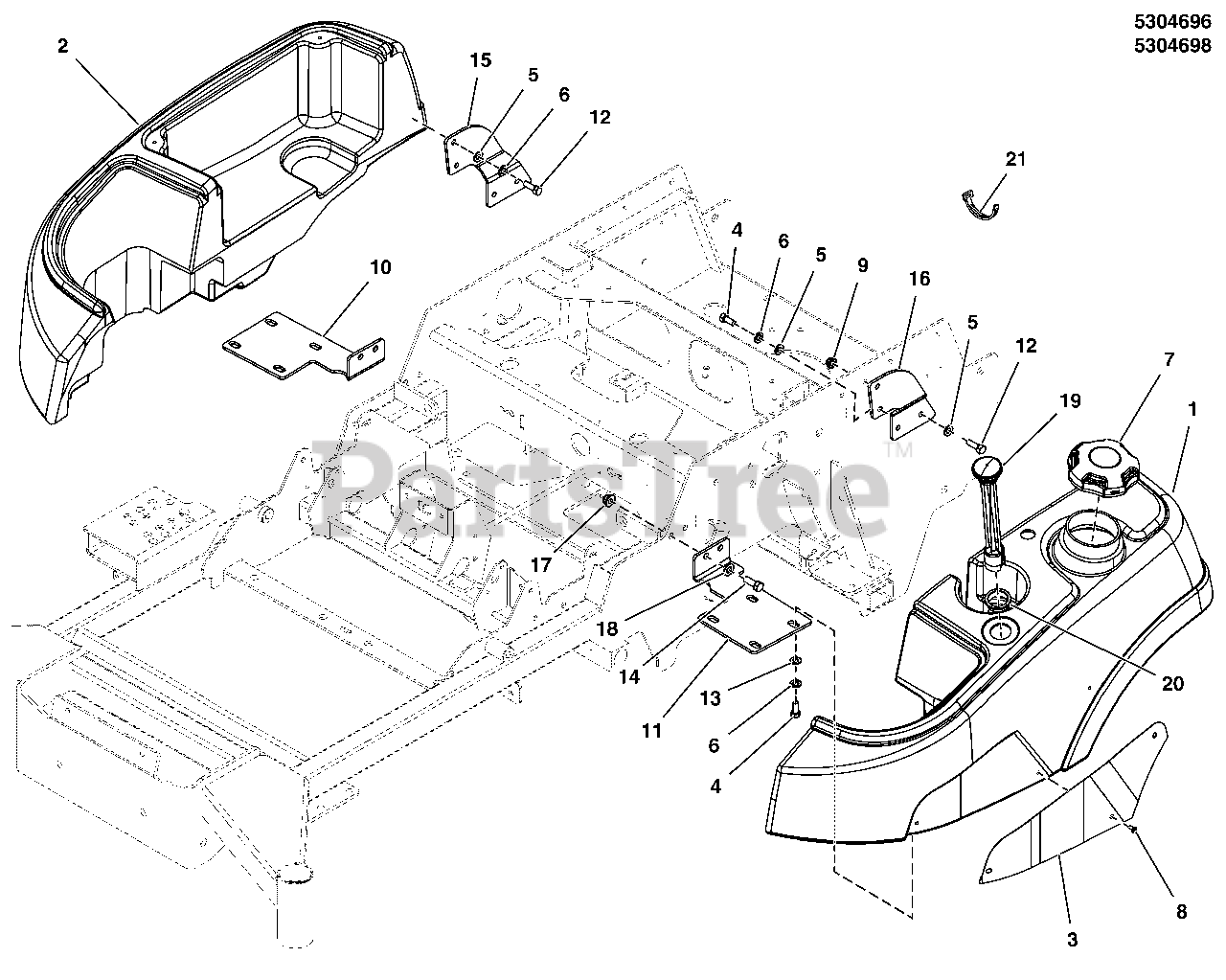

560Z (5901556) - Snapper 52"/132cm Zero-Turn Mower, 24hp Fuel Tank & Mount Group Parts Diagram

52"/132cm Zero-Turn Mower, 24hp

Fuel Tank & Mount Group Parts Diagram

  • Title
1

Snapper 5103167YP

TANK, FUEL, 5.25 GAL, LH

$557.99

$

Usually ships in 2-12 days

0

2

Snapper 5048752SM

TANK, FENDER, CONZ, RH

$279.99

$

Usually ships in 2-12 days

0

3

Snapper 5048909DYP

PLATE, FUEL TANK BADGE

$29.99

$

In Stock, only 2 left!

0

4

Snapper 5025011X6SM

CAPSCREW, Hex Head, 5/16-18 x 3/4

$3.99

$

In Stock, only 2 left!

0

5

Snapper 703302

WASHER, Flat, 5/16

Note: (5025155)

$4.49

$

In Stock, Qty 20+

0

6

Snapper 5025170SM

WASHER, Flat

$3.99

$

Usually ships in 2-12 days

0

7

Snapper 1759036YP

CAP, Fuel
(Superseded to 1761224YP)

Note: (5103005)

$48.99

$

In Stock, Qty 7

0

8

Snapper 5025386SM

CAPSCREW, Button Allen Head, #10-24 X 3/8

$3.99

$

In Stock, only 2 left!

0

9

Snapper 703115

NUT, Flange Nylock, 5/16-18

Note: (5025392)

$3.49

$

In Stock, Qty 20+

0

10

Snapper 5415604AYP

PLATE, TANK MOUNT, RIGHT - BLK

$30.99

$

Usually ships in 2-12 days

0

11

Snapper 5415603AYP

PLATE, TANK MOUNT, LEFT - BLK

$34.99

$

Usually ships in 2-12 days

0

12

Snapper 703570

CAPSCREW, Hex Head, 5/16-18 x 1 1/4

$4.99

$

In Stock, Qty 10

0

13

Snapper 5025292SM

WASHER, 5/16" GD.9 FLAT

$3.99

$

In Stock, Qty 20+

0

14

Snapper 5025013X8SM

CAPSCREW, Hex Head, 3/8-16 x 1

$3.99

$

In Stock, Qty 5

0

15

Snapper 5411554DYP

PLATE, FUEL TANK MOUNT - REAR, RH - RED

$18.99

$

Usually ships in 2-12 days

0

16

Snapper 5411555DYP

PLATE, FUEL TANK MOUNT - REAR, LH - RED

$21.99

$

Usually ships in 2-12 days

0

17

Snapper 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

18

Snapper 703590

WASHER, .406

Note: (5025156)

$3.99

$

In Stock, Qty 12

0

19

Snapper 5023197SM

GAUGE, FUEL LEVEL, 9.0"

Note: (SV)

$57.99

$

In Stock, only 4 left!

0

20

Snapper 5022917X1SM

GROMMET, FUEL GAUGE (SV)

Note: (SV)

$6.99

$

In Stock, only 3 left!

0

21

Snapper 5100581YP

TIE, SELF-LOCKING, 8"

$3.99

$

Usually ships in 2-12 days

0
