56080 - Toro 25" Whirlwind Premium Riding Mower (SN: 001000001 - 001999999) (1981) SEAT ASSEMBLY Parts Diagram

25" Whirlwind Premium Riding Mower

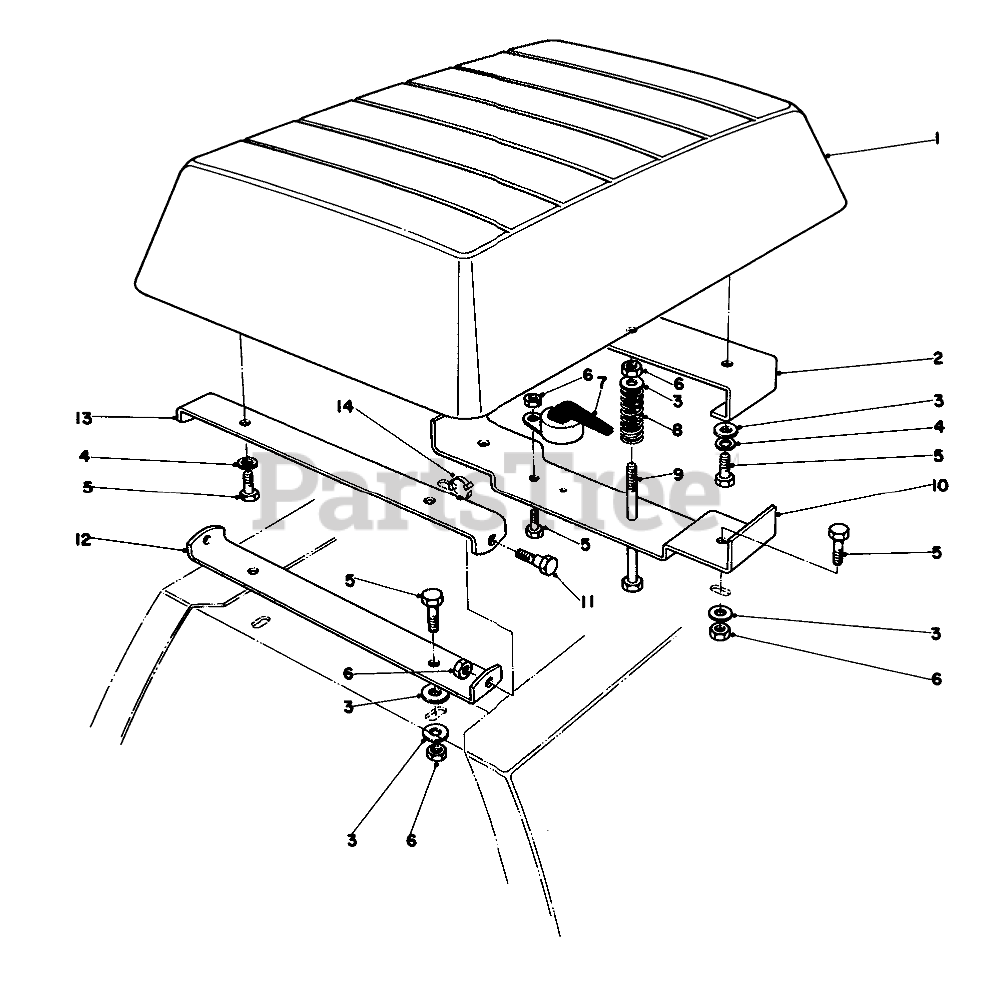

SEAT ASSEMBLY Parts Diagram

  • Title

1

Toro 28-6420

Seat

$

$

Not available

2

Toro 28-5730

Rear Support Seat

$

$

Not available

3

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

5

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 2 left!

0

7

Toro 28-4140

SEAT SWITCH

$

$

Not available

8

Toro 5-1723

Spring

$

$

Not available

9

Toro 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

0

10

Toro 284570

Seat Support-Rear Lower

$

$

Currently unavailable

11

Toro 11-9030

SCREW-SHOULDER

$7.49

$

Usually ships in 3-6 days

0

12

Toro 28-4580

Seat Pivot Brkt-Lower

$

$

Not available

13

Toro 28-4590

Seat Pivot Brkt-Upper

$

$

Not available

14

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0
