56080 - Toro 25" Whirlwind Premium Riding Mower (SN: 001000001 - 001999999) (1981) BODY ASSEMBLY Parts Diagram

25" Whirlwind Premium Riding Mower

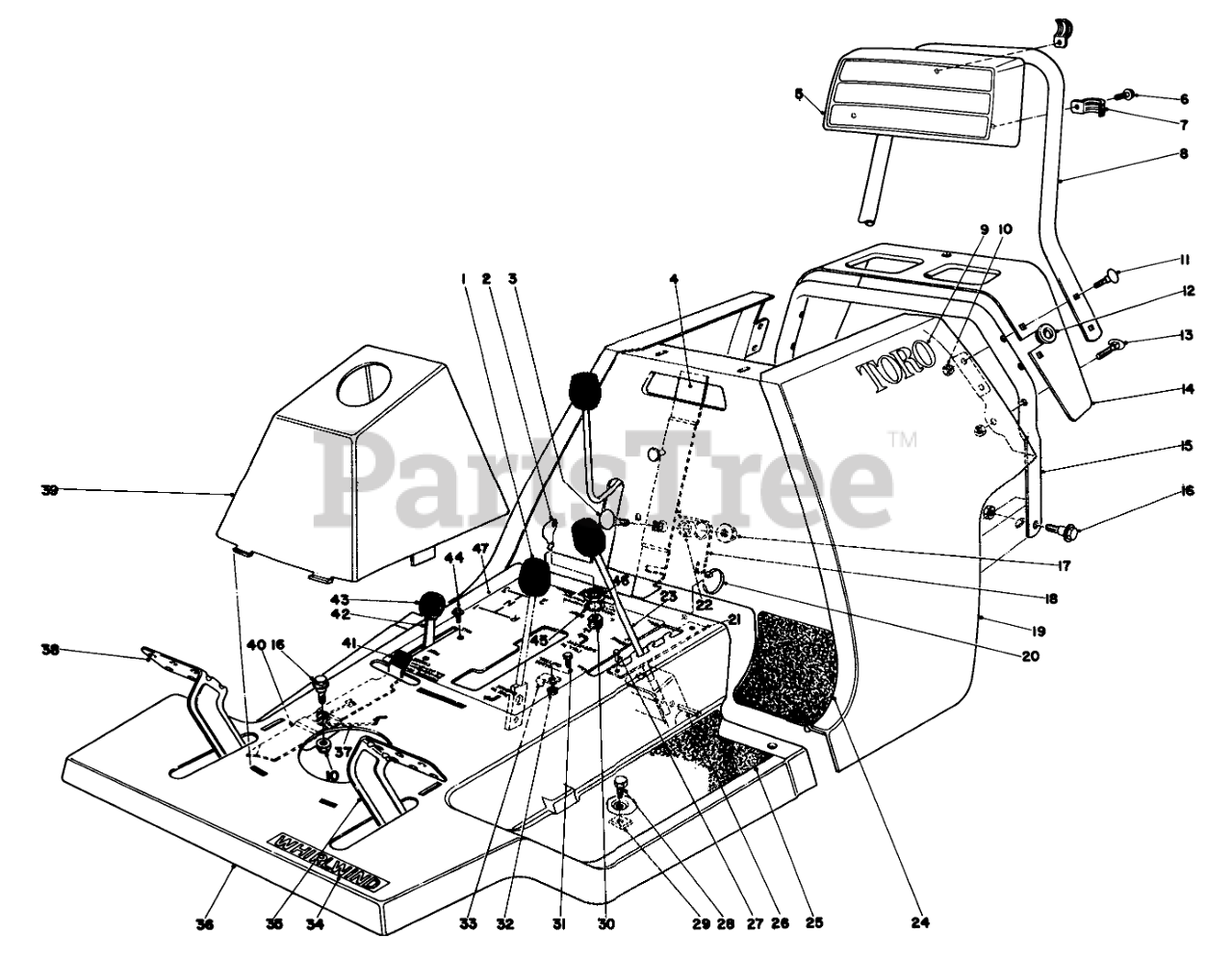

BODY ASSEMBLY Parts Diagram

  • Title

1

Toro 233-37

KNOB

$31.99

$

Usually ships in 3-6 days

0

2

Toro 218412

Key

$

$

Currently unavailable

3

Toro 3230-10

BOLT-CARR

$3.99

$

In Stock, only 4 left!

0

4

Toro 19-2400

Handle Latch

$

$

Not available

5

Toro 17-1360

Backrest

$

$

Not available

6

Toro 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

0

7

Toro 2412-40

CLAMP-CONDUIT

$8.99

$

Usually ships in 3-6 days

0

8

Toro 28-9380

Handle Upper

$

$

Not available

9

Toro 20-4690

TORO LOGO DECAL

$7.99

$

Usually ships in 3-6 days

0

10

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

11

Toro 3230-5

SCREW-CARR

$0.99

$

In Stock, Qty 6

0

12

Toro 25-1520

Starting Ferrel

$

$

Not available

13

Toro 6-6330

HANDLE SCREW

$

$

Not available

14

Toro 25-1630

Extension Rear Body

$

$

Not available

15

Toro 17-9990

Handle Lower

$

$

Not available

16

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 5

0

17

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

18

Toro 19-2390

Latch Return Spring

$

$

Not available

19

Toro 19-2070

Rear Body

$

$

Not available

20

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

21

Toro 17-9610

Height Adjustment Plate

$

$

Not available

22

Toro 19-2410

Spacer

$

$

Not available

23

Toro 17-9630

Height of Cut Lever

$

$

Not available

24

Toro 26-2530

Heel Pad-LH.

$

$

Not available

Toro 26-2540

Heel Pad R.H.

Note: Not illustrated

$

$

Not available

25

Toro 26-2510

Foot Tread LH.

$

$

Not available

Toro 26-2520

Foot Tread R.H.

Note: Not illustrated

$

$

Not available

26

Toro 32121-94

PIN-SPECIAL

$

$

Not available

27

Toro 3290-372

Rivet

$

$

Not available

28

Toro 32104-110

SCREW-HH

$

$

Not available

29

Toro 3290-347

NUT-TINNERMAN

$6.49

$

Usually ships in 3-6 days

0

30

Toro 19-2450

Starter Switch (Incl. Ref. #2, 45 & 46)

$

$

Not available

31

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 10

0

32

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, only 3 left!

0

33

Toro 2412-51

CABLE CLAMP

$

$

Not available

34

Toro 28-8910

WW DECAL

$

$

Not available

35

Toro 19-1860

Clutch Pedal

$

$

Not available

36

Toro 214680

Body Front (Incl. Ref. #21, 27 & 47)

$

$

Currently unavailable

37

Toro 19-1970

SPRING-PARKING BRAKE

$

$

Not available

38

Toro 26-5310

Brake Pedal

$

$

Not available

39

Toro 28-3690

Tower
(Superseded to 55-7103)

$

$

Not available

40

Toro 19-1610

Parking Brake
(Superseded to 19-1610-03)

$

$

Not available

41

Toro 19-2200

TIP-PARKING BRAKE

$

$

Not available

42

Toro 26-4400

Throttle Control (Incl. Ref. #43)

$

$

Not available

43

Toro 233-35

KNOB

$9.49

$

Usually ships in 3-6 days

0

44

Toro 32104-94

8X1/2 SELF TAP SCREW

$

$

Not available

45

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

46

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

47

Toro 40-4590

Decal-Front Body

$

$

Not available
