56080 - Toro 25" Whirlwind Premium Riding Mower (SN: 000000001 - 000999999) (1980) FRAME ASSEMBLY Parts Diagram

25" Whirlwind Premium Riding Mower

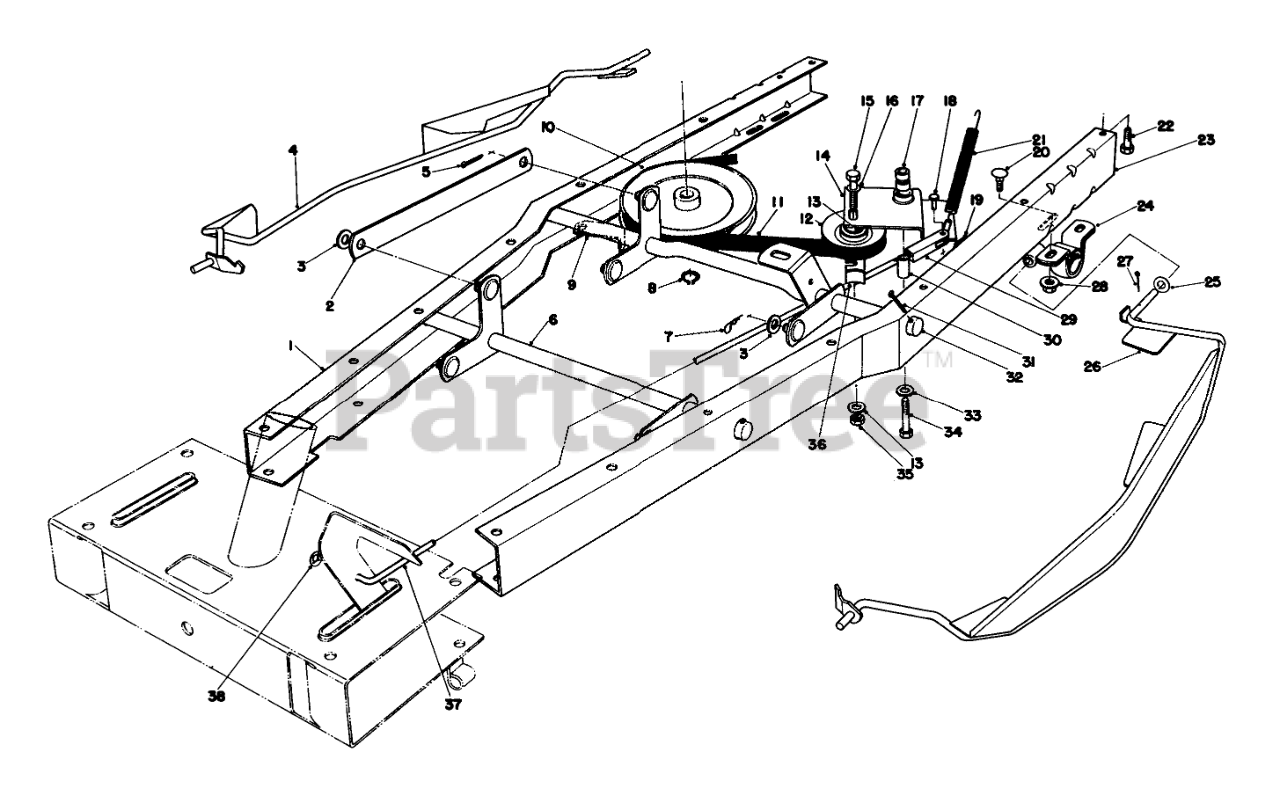

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 40-9570

Frame-Channel R.H.

$

$

Not available

2

Toro 17-9530

Linkage-Height Adj.

$

$

Not available

3

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 40-9800

Deck Shield R.H.

$

$

Not available

5

Toro 3272-23

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

6

Toro 17-9890

FRONT LIFT WA B

$

$

Not available

7

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

8

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, only 2 left!

0

9

Toro 17-2230

TRANS BELT RET B

$

$

Not available

10

Toro 7-4085

PULLEY

$186.99

$

In Stock, only 3 left!

0

11

Toro 19-2650

V-BELT

$19.99

$

In Stock, only 1 left!

0

12

Toro 12-5820

PULLEY-IDLER

$29.99

$

In Stock, Qty 6

0

13

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 12

0

14

Toro 26-2830

Traction Idler (Incl . Ref. #17)

$

$

Not available

15

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Toro 325646

Washer

$

$

Currently unavailable

17

Toro 256-110

Bushing
(Superseded to 47-2890)

$3.99

$

Usually ships in 3-6 days

0

18

Toro 283-3

PIN-CLEVIS

$0.99

$

In Stock, only 1 left!

0

19

Toro 32724

Cotter Pin

$

$

Currently unavailable

20

Toro 3231-30

SCREW-CARR

$4.99

$

In Stock, only 1 left!

0

21

Toro 19-5340

Clutch Tension Spring

$

$

Not available

22

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

23

Toro 40-9560

Frame-Channel L.H.

$

$

Not available

24

Toro 12-3340

PILLOW BLOCK

$

$

Not available

25

Toro 29-8870

WASHER

$

$

Currently unavailable

26

Toro 40-9810

Deck Shield L.H.

$

$

Not available

27

Toro 3272-16

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

28

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

29

Toro 282-17

YOKE

$42.99

$

Usually ships in 3-6 days

0

30

Toro 26-2610

PIVOT SPACER

$

$

Not available

31

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

32

Toro 28-5690

REAR HT ADJ WA B

$

$

Not available

33

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

34

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

35

Toro 32153-2

NUT-LOCK, SIDE
(Superseded to 603773)

$2.99

$

In Stock, Qty 6

0

36

Toro 12-9020

RETAINER-BELT

$

$

Not available

37

Toro 284550

Rod-Clutch

$

$

Currently unavailable

38

Toro 3290-363

PUSH ON SPEED NUT 1/4

$

$

Not available
