56044 - Toro 25" Premium Keylectric Rear-Engine Riding Mower (SN: 007000001 - 007999999) (1977) FRONT AXLE ASSEMBLY Parts Diagram

25" Premium Keylectric Rear-Engine Riding Mower

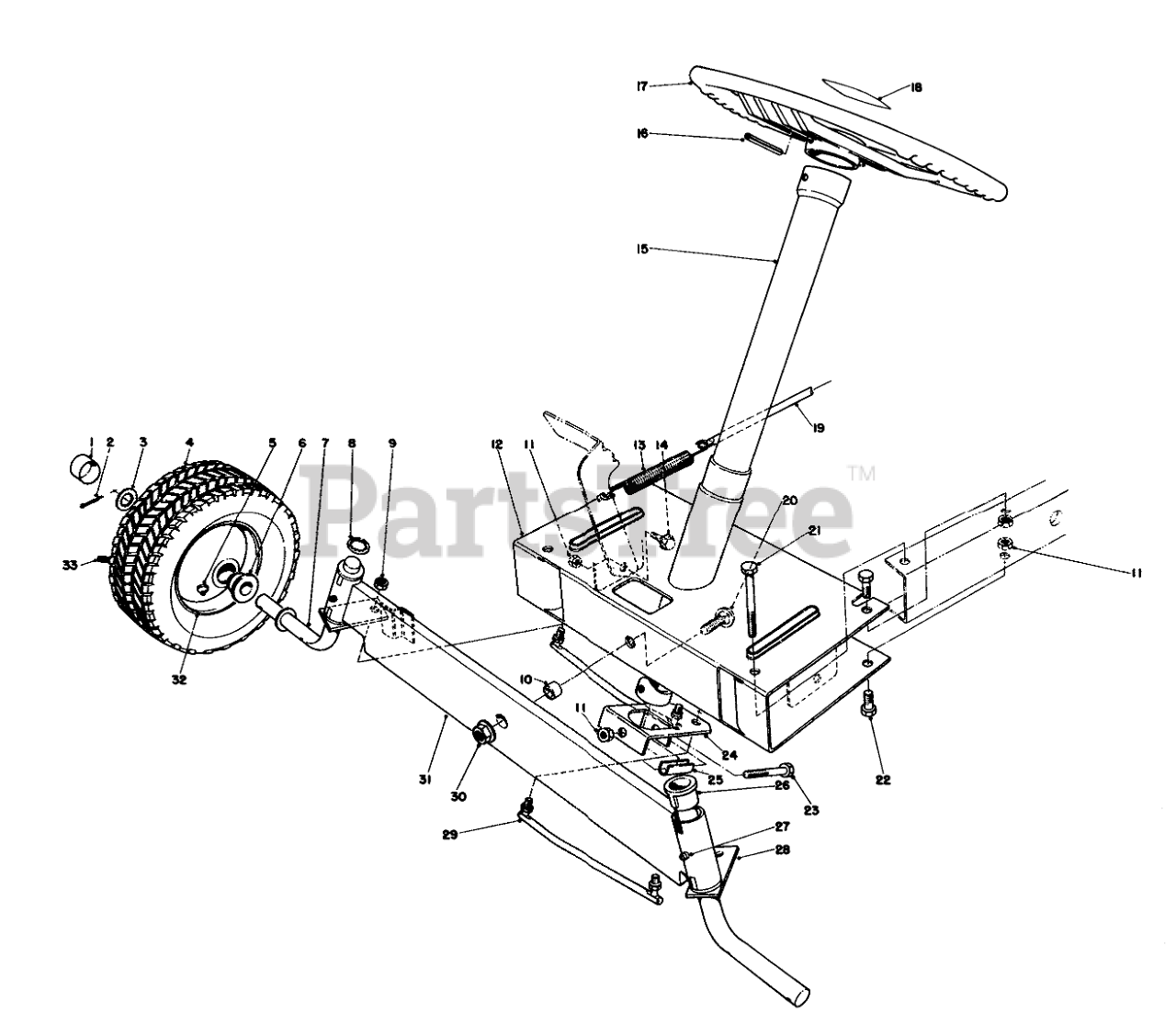

FRONT AXLE ASSEMBLY Parts Diagram

  • Title
1

Toro 285-18

Hub Cap
(Superseded to 2410-53)

$

$

Not available

2

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

3

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 15

0

4

Toro 231-77

Tire Turf King
(Superseded to 231-116)

$

$

Not available

Toro 231-82

Tire Xtra Traction

Note: Not illustrated

$

$

Not available

5

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

6

Toro 256-170

BUSHING

$

$

Not available

7

Toro 21-9830

SPINDLE WA RH

$

$

Not available

8

Toro 32151-40

RING-RETAINING

$7.49

$

In Stock, Qty 6

0

9

Toro 32146-4

NUT-LOCK NI

$

$

Not available

10

Toro 19-1520

FRONT AXLE SPACER

$

$

Not available

11

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

12

Toro 24-7420

Front Frame

$

$

Not available

13

Toro 26-2740

BRAKE TENSION SPRG O

$

$

Not available

14

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 5

0

15

Toro 24-7370

Steering Tube

$

$

Not available

16

Toro 32121-10

PIN-ROLL

$8.99

$

Usually ships in 3-6 days

0

17

Toro 12-7540

Steering Wheel

$

$

Not available

18

Toro 19-2010

Decal

$

$

Not available

19

Toro 26-5290

Brake Rod

$

$

Not available

20

Toro 3233-2

SCREW-CARR

$7.99

$

Usually ships in 3-6 days

0

21

Toro 322-14

SCREW-HH

$2.99

$

In Stock, Qty 8

0

22

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

23

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

24

Toro 21-9840

Lever Steering

$

$

Not available

25

Toro 19-1510

Spacer-Steering Tube

$

$

Not available

26

Toro 19-1890

BUSHING

$

$

Not available

27

Toro 302-49

GREASE FITTING

$4.49

$

Usually ships in 3-6 days

0

28

Toro 21-9820

Spindle L.H.

$

$

Not available

29

Toro 21-9860

TIE ROD ASM

$

$

Not available

30

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

31

Toro 25-2330

Front Axle

$

$

Not available

32

$218.99

$

Usually ships in 3-6 days

0

33

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 14

0

Toro 232-36

TUBE

Note: Not illustrated

$

$

Not available
