56036 - Toro 25" Premium Keylectric Rear-Engine Riding Mower (SN: 007000001 - 007999999) (1977) ENGINE AND AXLE ASSEMBLY Parts Diagram

25" Premium Keylectric Rear-Engine Riding Mower

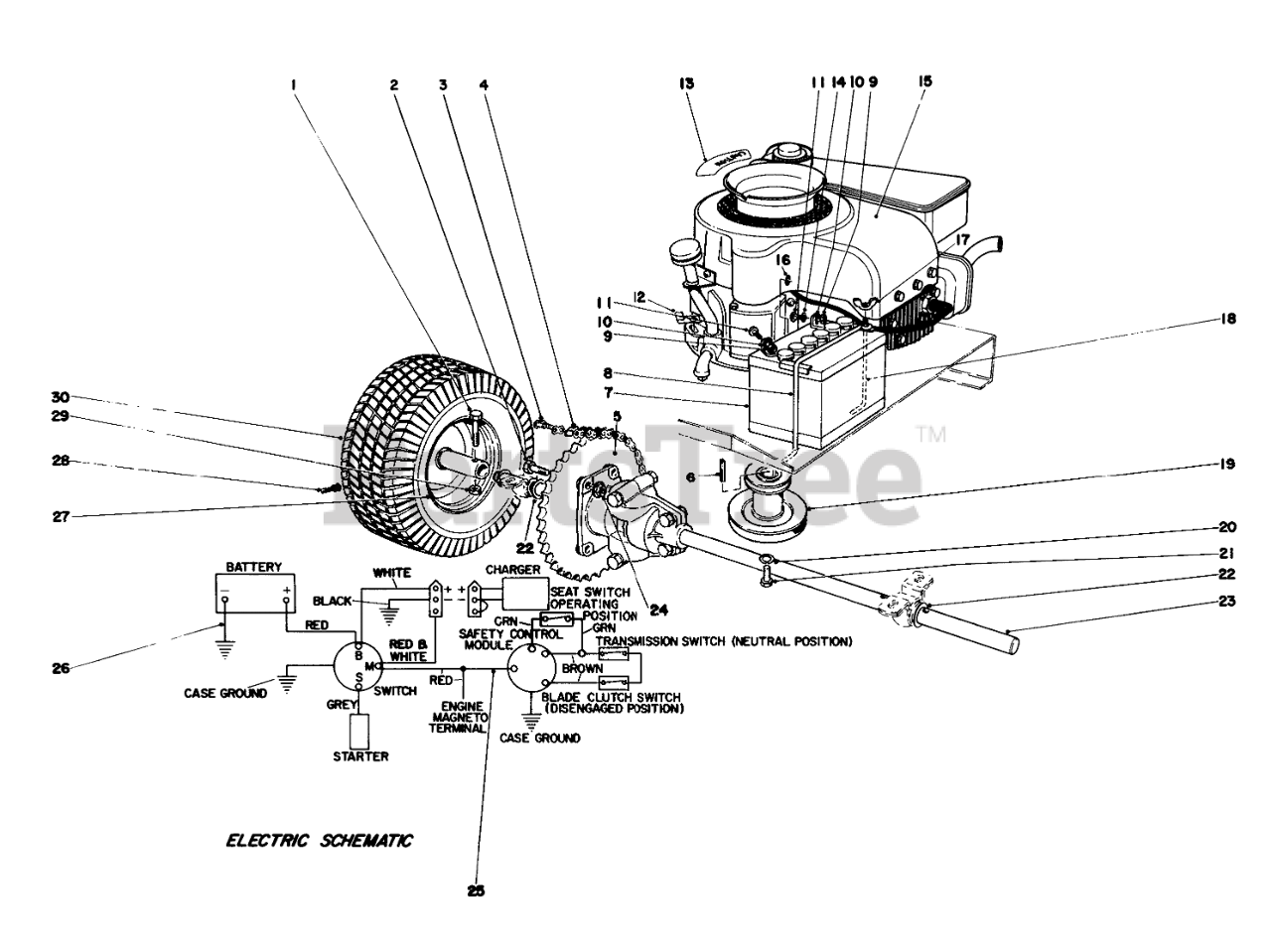

ENGINE AND AXLE ASSEMBLY Parts Diagram

  • Title
1

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 2710-6

LINK-CONNECTING

$19.99

$

Usually ships in 3-6 days

0

4

Toro 26-2860

Chain Roller (Incl. Ref. #3)

$

$

Not available

5

Toro 12-1940

Sprocket

$

$

Not available

6

$

$

Not available

7

Toro 26-7290

BATTERY

$

$

Not available

8

Toro 12-5700

Battery Clamp

$

$

Not available

9

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

10

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

11

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

$

$

Not available

13

Toro 20-8270

Decal

$

$

Currently unavailable

14

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 221-534

Engine

$

$

Currently unavailable

16

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

Usually ships in 3-6 days

0

17

Toro 32103-14

NUT-WING SPECL

$15.99

$

In Stock, only 1 left!

0

18

Toro 12-5950

ROD-SUPPORT, BATTERY

$23.99

$

Usually ships in 3-6 days

0

19

Toro 26-6850

Engine Pulley
(Superseded to 47-5020)

$

$

Not available

20

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

21

Toro 3211-36

SCREW-HH

$

$

Not available

22

Toro 11-4930

WASHER

$

$

Not available

23

Toro 11-1800

Differential

$

$

Not available

24

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

25

Toro 28-4540

Wiring Harness

$

$

Not available

26

Toro 7-7630

ENG-GROUND WIRE ASM

$23.99

$

Usually ships in 3-6 days

0

27

$

$

Not available

28

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

29

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

30

Toro 231-81

Tire
(Superseded to 231-115)

$96.99

$

Usually ships in 3-6 days

0

Toro 231-67

Tire
(Superseded to 231-115)

Note: Not illustrated

$96.99

$

Usually ships in 3-6 days

0

Toro 232-36

TUBE

Note: Not illustrated

$

$

Not available

Toro 7-6580

Battery Charger
(Superseded to 44-7250)

Note: Not illustrated

$182.99

$

Usually ships in 3-6 days

0

Toro 24-5700

Battery Charger (Model 56036)

Note: Not illustrated

$

$

Not available

Toro 28-4420

Support Pedal

Note: Not illustrated

$

$

Currently unavailable

Toro 28-4430

Loose Parts (Model 56036)

Note: Not illustrated

$

$

Currently unavailable
