56036 - Toro 25" Premium Keylectric Rear-Engine Riding Mower (SN: 006000001 - 006999999) (1976) FRAME ASSEMBLY Parts Diagram

25" Premium Keylectric Rear-Engine Riding Mower

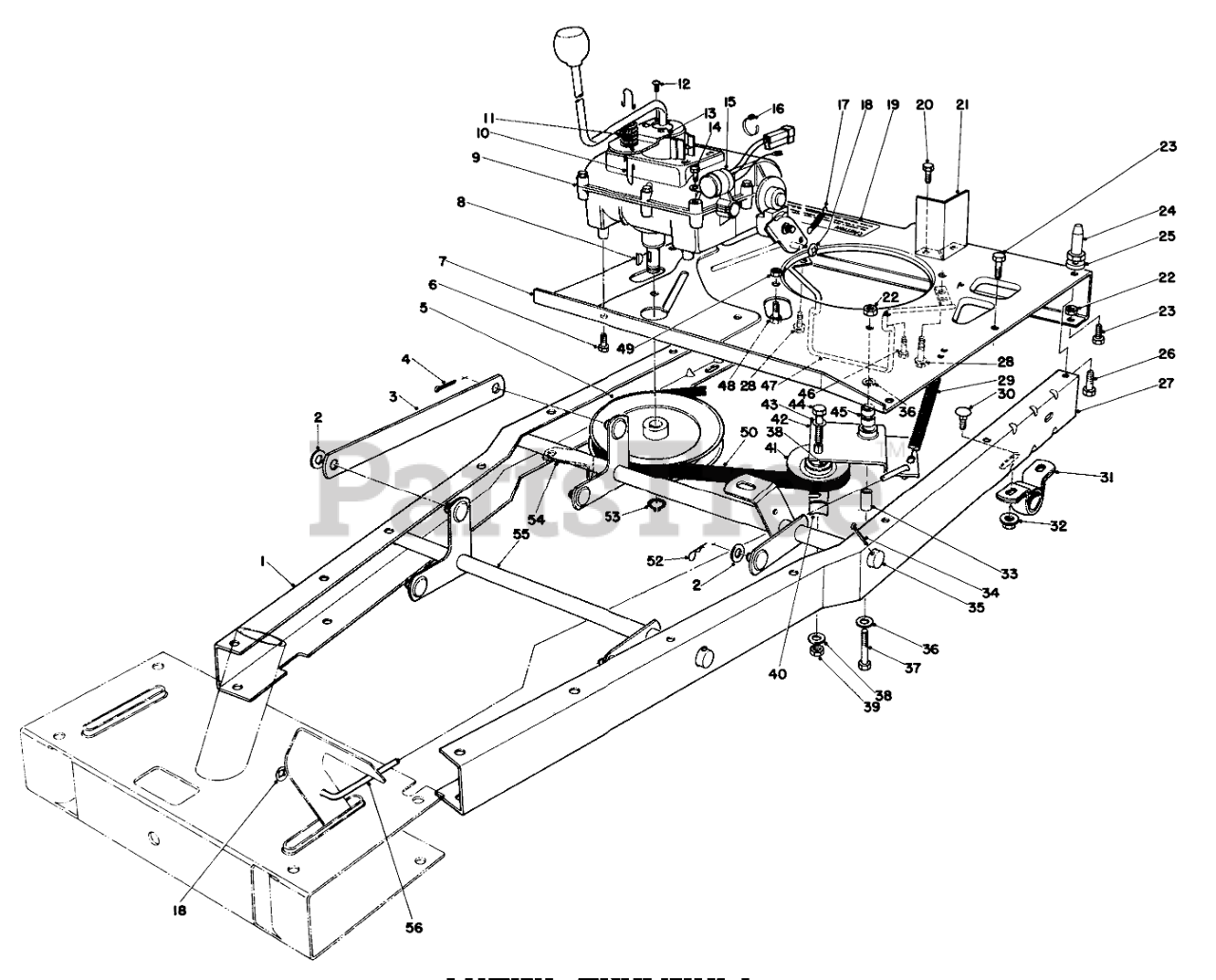

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 26-2650

Frame Channel R.H.

$

$

Not available

2

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 17-9530

Linkage-Height Adj.

$

$

Not available

4

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

5

Toro 7-4085

PULLEY

$186.99

$

In Stock, only 3 left!

0

6

Toro 32140-61

5/16-18 X 5/8 SEMS SC

$

$

Not available

7

Toro 26-0470

Engine Plate

$

$

Not available

8

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, Qty 20+

0

9

Toro 26-5440

Transmission

$

$

Not available

10

Toro 25-4040

Neutral Spring Wire

$

$

Not available

11

Toro 25-4030

SPRING

$

$

Not available

12

Toro 32104-81

SCREW-HEAD, PAN

$0.99

$

Usually ships in 3-6 days

0

13

Toro 25-4050

Neutral Bracket

$

$

Not available

14

Toro 32104-117

Screw

$

$

Not available

15

Toro 26-2870

MODULE INTERLOCK

$

$

Not available

16

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

17

Toro 26-6700

SPRING-RETURN, BRAKE

$24.99

$

Usually ships in 3-6 days

0

18

Toro 3290-363

PUSH ON SPEED NUT 1/4

$

$

Not available

19

Toro 19-5850

Decal

$

$

Not available

20

Toro 32104-11C

Hex Hd. Screw

$

$

Currently unavailable

21

Toro 19-9880

Baffle-Carb

$

$

Not available

22

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

23

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

24

Toro 25-1530

PIN-MOUNTING, LOWER

$34.99

$

Usually ships in 3-6 days

0

25

Toro 26-4840

SPACER-PIN, MOUNTING

$6.99

$

Usually ships in 3-6 days

0

26

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

27

Toro 26-2640

LH FRAME CHANNEL B

$

$

Not available

28

Toro 11-0590

SCREW-HWHTF
(Superseded to 32144-102)

$3.49

$

Usually ships in 3-6 days

0

29

Toro 19-5340

Clutch Tension Spring

$

$

Not available

30

Toro 3231-30

SCREW-CARR

$4.99

$

In Stock, only 1 left!

0

31

Toro 12-3340

PILLOW BLOCK

$

$

Not available

32

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

33

Toro 26-2610

PIVOT SPACER

$

$

Not available

34

Toro 3272-23

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

35

Toro 26-6960

HEIGHT ADJ WA (REAR)

$

$

Not available

36

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

37

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

38

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

39

Toro 32153-2

NUT-LOCK, SIDE
(Superseded to 603773)

$2.99

$

In Stock, Qty 20+

0

40

Toro 12-9020

RETAINER-BELT

$

$

Not available

41

Toro 12-5820

PULLEY-IDLER

$29.99

$

In Stock, Qty 6

0

42

Toro 26-2830

Traction Idler (Incl. Ref. #45)

$

$

Not available

43

Toro 3256-46

WASHER-FLAT

$7.99

$

Usually ships in 3-6 days

0

44

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

45

Toro 256-110

Bushing
(Superseded to 47-2890)

$3.99

$

Usually ships in 3-6 days

0

46

Toro 32140-45

Screw-HH

$

$

Not available

47

Toro 26-5740

Belt Guide

$

$

Not available

48

Toro 322-17

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

49

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

50

Toro 19-2650

V-BELT

$19.99

$

In Stock, only 1 left!

0

52

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

53

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, Qty 20+

0

54

Toro 17-2230

TRANS BELT RET B

$

$

Not available

55

Toro 17-9890

FRONT LIFT WA B

$

$

Not available

56

Toro 26-2660

Clutch Rod

$

$

Not available
