56036 - Toro 25" Premium Keylectric Rear-Engine Riding Mower (SN: 006000001 - 006999999) (1976) BODY AND SEAT ASSEMBLY Parts Diagram

25" Premium Keylectric Rear-Engine Riding Mower

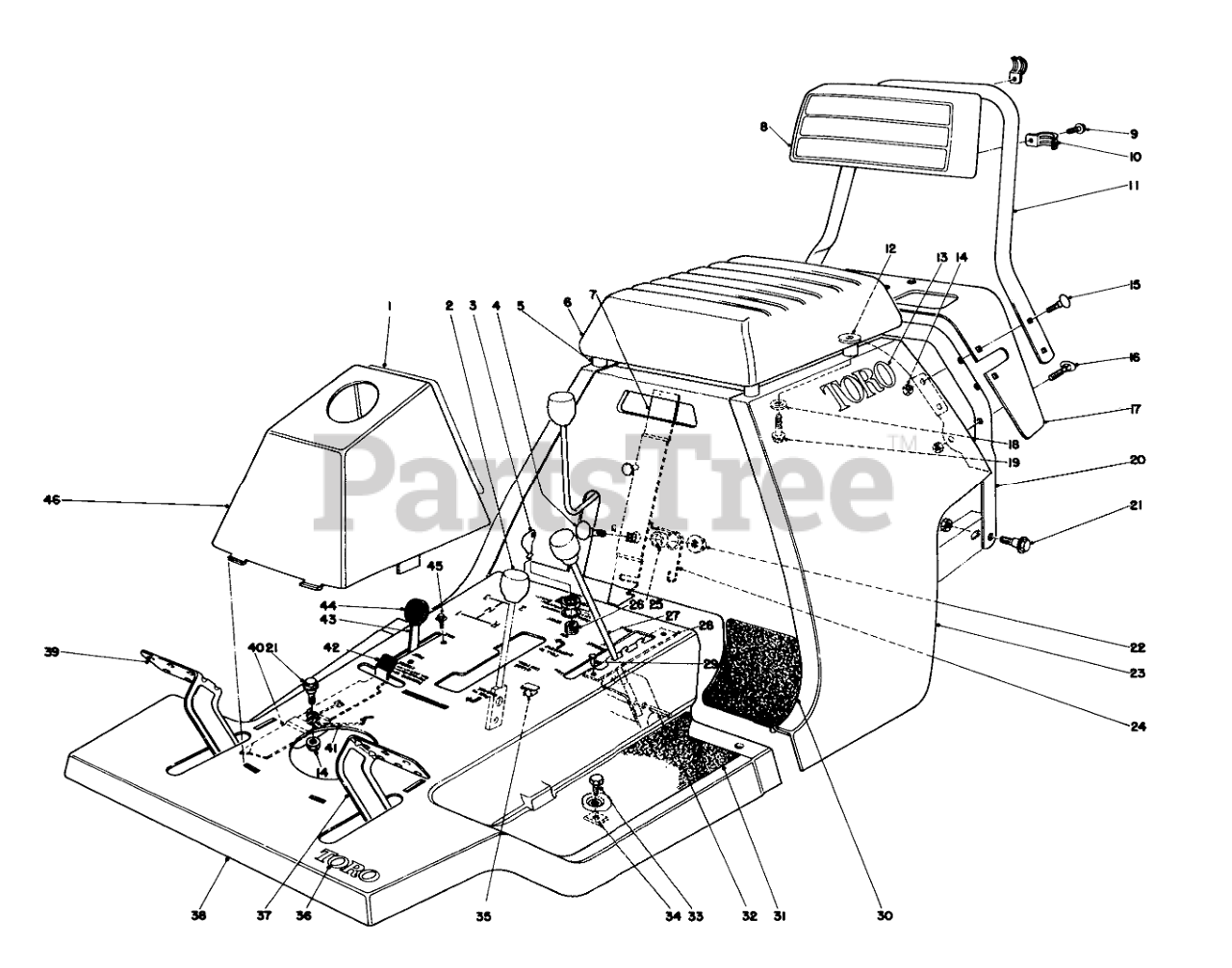

BODY AND SEAT ASSEMBLY Parts Diagram

  • Title

1

Toro 26-7200

Decal Tower

$

$

Not available

2

Toro 233-37

KNOB

$33.99

$

Usually ships in 3-6 days

0

3

Toro 218-412

Key
(Superseded to 62-7770)

$4.99

$

In Stock, only 1 left!

0

4

Toro 3230-10

BOLT-CARR

$3.99

$

In Stock, only 4 left!

0

5

Toro 3-9026

Spacer

$

$

Currently unavailable

6

Toro 12-5760

Seat

$

$

Not available

7

Toro 19-2400

Handle Latch

$

$

Not available

8

Toro 17-1360

Backrest

$

$

Not available

9

Toro 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

0

10

Toro 2412-40

CLAMP-CONDUIT

$

$

Not available

11

Toro 18-8200

Handle Upper

$

$

Not available

12

Toro 3256-55

WASHER-FLAT

$5.49

$

In Stock, only 1 left!

0

13

Toro 204690

Decal

$

$

Currently unavailable

14

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

15

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

16

Toro 6-6330

HANDLE SCREW

$

$

Not available

17

Toro 25-1630

Extension Rear Body

$

$

Not available

18

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 3234-10

HEX FLANGE SCREW

$

$

Not available

20

Toro 17-9990

Handle Lower

$

$

Not available

21

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 5

0

22

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

23

Toro 19-2070

Rear Body

$

$

Not available

24

Toro 19-2390

Latch Return Spring

$

$

Not available

25

Toro 19-2410

Spacer

$

$

Not available

26

Toro 12-2820

STARTER SWITCH

$

$

Not available

27

Toro 17-9630

Height of Cut Lever

$

$

Not available

28

Toro 17-9610

Height Adjustment Plate

$

$

Not available

29

Toro 3290-372

Rivet

$

$

Not available

30

Toro 26-2530

Heel Pad-LH.

$

$

Not available

Toro 26-2540

Heel Pad R.H.

Note: Not illustrated

$

$

Not available

31

Toro 26-2510

Foot Tread LH.

$

$

Not available

Toro 26-2520

Foot Tread R.H.

Note: Not illustrated

$

$

Not available

32

Toro 32121-94

PIN-SPECIAL

$

$

Not available

33

Toro 32104-110

SCREW-HH

$

$

Not available

34

Toro 3290-347

NUT-TINNERMAN

$

$

Not available

35

Toro 218-474

Wire & Cable Tie

$

$

Currently unavailable

36

Toro 12-9140

DECAL

$

$

Currently unavailable

37

Toro 19-1860

Clutch Pedal

$

$

Not available

38

Toro 21-4680

Body-Front (Incl. Ref. #28 & 29)

$

$

Not available

39

Toro 26-5310

Brake Pedal

$

$

Not available

40

Toro 19-1610

Parking Brake
(Superseded to 19-1610-03)

$

$

Not available

41

Toro 19-1970

SPRING-PARKING BRAKE

$

$

Not available

42

Toro 19-2200

TIP-PARKING BRAKE

$

$

Not available

43

Toro 21-4560

Throttle Control (Incl. Ref. #44)

$

$

Not available

44

Toro 233-35

KNOB

$9.99

$

Usually ships in 3-6 days

0

45

Toro 32104-94

8X1/2 SELF TAP SCREW

$

$

Not available

46

Toro 12-6290

Tower
(Superseded to 55-7103)

$

$

Not available

Toro 59046

Bagging Attachment-Rear (Opt.)

Note: Optional equipment

$

$

Currently unavailable

Toro 59070

Dump Cart (Optional)

Note: Optional equipment

$

$

Currently unavailable

Toro 59033

30" Snow Blade (Optional)

Note: Optional equipment

$

$

Currently unavailable

Toro 25-6940

30" Snow Blade Adapter Kit (Optional)

Note: Optional equipment

$

$

Currently unavailable
