56036 - Toro 25" Premium Keylectric Rear-Engine Riding Mower (SN: 006000001 - 006999999) (1976) 25" MOWER ASSEMBLY Parts Diagram

25" Premium Keylectric Rear-Engine Riding Mower

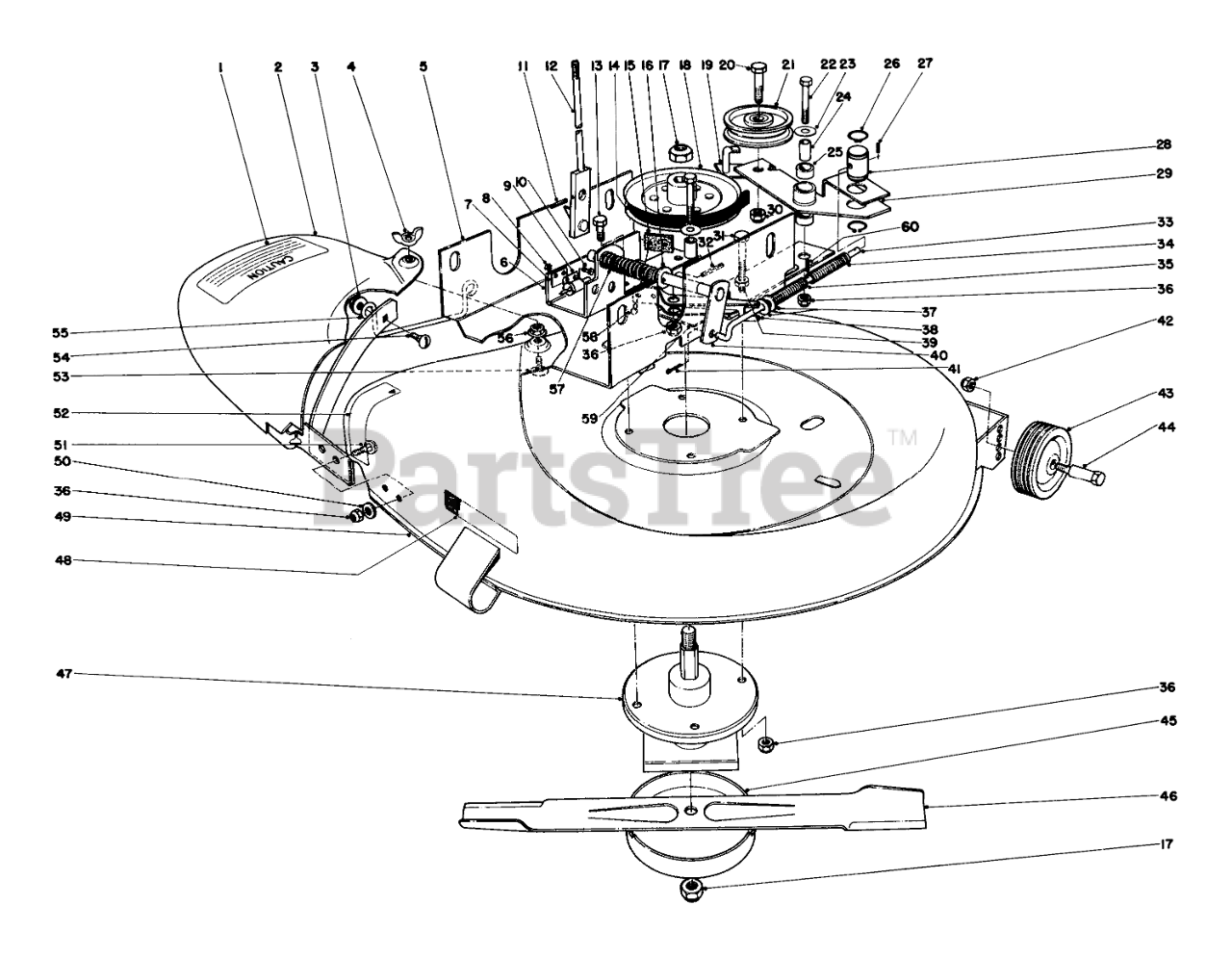

25" MOWER ASSEMBLY Parts Diagram

  • Title

1

Toro 12-2890

Decal
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

2

Toro 24-6730

DEFLECTOR WA R
(Superseded to 24-6730-01)

$

$

Not available

3

Toro 32128-10

NUT-LOCK, HHF

$0.99

$

In Stock, Qty 20+

0

4

Toro 3-2625

Wing Nut

$

$

Not available

5

Toro 18-8210

CHANNEL HT ADJ R

$256.99

$

Usually ships in 3-6 days

0

6

Toro 26-5150

Mounting Bracket Blade

$

$

Not available

7

Toro 26-5320

Spacer Switch

$

$

Not available

8

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, only 3 left!

0

9

Toro 26-5300

Switch-Interlock

$

$

Not available

10

Toro 3290-389

Screw

$

$

Currently unavailable

11

Toro 32121-93

PIN-SPIRAL

$

$

Not available

12

Toro 26-4460

Lever Deck Engagement

$

$

Not available

13

Toro 3224

Screw

$

$

Currently unavailable

14

Toro 26-2770

V-BELT

$38.99

$

Usually ships in 3-6 days

0

15

Toro 7-0643

BLADE BRAKE LINING

$

$

Not available

16

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 17-0980

Nut

$11.99

$

In Stock, only 4 left!

0

18

Toro 26-4020

DECK PULLEY R

$

$

Not available

19

Toro 26-5720

Belt Retainer

$

$

Not available

20

Toro 323-19

SCREW-HH

$1.99

$

In Stock, Qty 11

0

21

Toro 7-4660

Flat Idler
(Superseded to 62-4540)

$92.99

$

In Stock, only 1 left!

0

22

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

24

Toro 26-2610

PIVOT SPACER

$

$

Not available

25

Toro 256-110

Bushing
(Superseded to 47-2890)

$3.99

$

Usually ships in 3-6 days

0

26

Toro 32120-93

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

27

Toro 32121-73

PIN-ROLL

$0.99

$

Usually ships in 3-6 days

0

28

Toro 26-2580

Pin-Pivot

$

$

Not available

29

Toro 26-2560

Idler Arm (Incl. Ref. #25)
(Superseded to 53-4330)

$293.99

$

Usually ships in 3-6 days

0

30

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

31

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 10

0

32

Toro 32121-45

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

33

Toro 26-5500

BLADE ENGAGE ROD

$

$

Not available

34

Toro 26-4800

Spring Deck Idler

$

$

Not available

35

Toro 26-4810

Spring Deck Brake

$

$

Not available

36

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

37

Toro 5-1350

WASHER
(Superseded to 5-4460)

$7.99

$

In Stock, Qty 6

0

38

Toro 19-5980

Blade Brake (Incl. Ref. 15 & 58)
(Superseded to 53-4340)

$

$

Not available

39

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

40

Toro 17-9960

Linkage

$

$

Not available

41

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

42

Toro 32146-12

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

43

Toro 11-1580

Wheel
(Superseded to 92-6036)

$9.49

$

Usually ships in 3-6 days

0

44

Toro 3-2652

Bolt

$

$

Not available

45

Toro 7-3522

Cup
(Superseded to 92-6313)

$53.99

$

In Stock, only 1 left!

0

46

Toro 26-8060

Blade
(Superseded to 26-8060-03)

$56.99

$

Usually ships in 3-6 days

0

47

Toro 19-2140

Mower Spindle

$

$

Not available

48

Toro 26-4820

Decal-Deck Inst.

$

$

Not available

49

Toro 24-6700

HOUSING WA R

$

$

Not available

50

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

51

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

52

Toro 25-5810

Decal Housing

$

$

Not available

53

Toro 26-0430

Carriage Bolt

$

$

Not available

54

Toro 3229-22

SCREW-CARRIAGE
(Superseded to 3229-11)

$1.49

$

In Stock, Qty 20+

0

55

Toro 17-0960

Bracket Foot Guard

$

$

Not available

56

Toro 3290-147

PAL NUT

$

$

Not available

57

Toro 19-1930

COMP SPRING O

$

$

Not available

58

Toro 3295-25

Rivet

$

$

Not available

59

Toro 17-9540

Bracket Idler Mounting

$

$

Not available

60

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0
