56033 - Toro 25" Premium Keylectric Rear-Engine Riding Mower (SN: 005000001 - 005999999) (1975) FRONT AXLE ASSEMBLY Parts Diagram

25" Premium Keylectric Rear-Engine Riding Mower

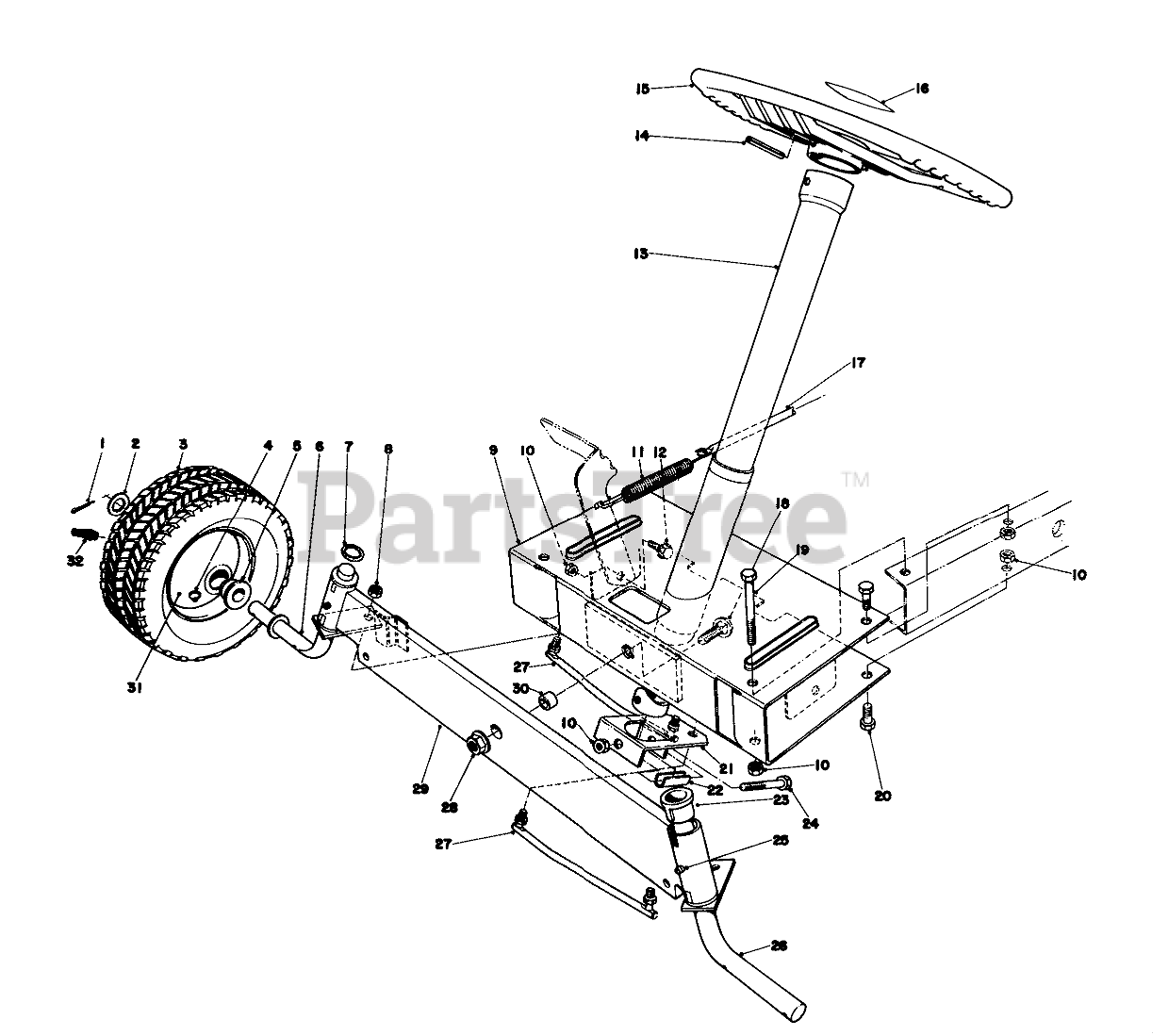

FRONT AXLE ASSEMBLY Parts Diagram

  • Title
1

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

2

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 5

0

3

Toro 231-77

Tire Turf King
(Superseded to 231-116)

$

$

Not available

Toro 231-82

Tire Xtra Traction

Note: Not illustrated

$

$

Not available

4

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

5

Toro 256-170

BUSHING

$

$

Not available

6

Toro 21-9830

SPINDLE WA RH

$

$

Not available

7

Toro 3215140

Retaining Ring

$

$

Currently unavailable

8

$

$

Currently unavailable

9

Toro 24-7420

Front Frame

$

$

Not available

10

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

11

Toro 19-7360

Brake Spring

$

$

Not available

12

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 5

0

13

Toro 247370

Steering Tube

$

$

Currently unavailable

14

Toro 32121-10

PIN-ROLL

$8.99

$

Usually ships in 3-6 days

0

15

Toro 12-7540

Steering Wheel

$

$

Not available

16

Toro 19-2010

Decal

$

$

Not available

17

Toro 21-5050

Brake Rod

$

$

Not available

18

Toro 3233-2

SCREW-CARR

$7.99

$

Usually ships in 3-6 days

0

19

Toro 322-14

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

20

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

21

Toro 21-9840

Lever Steering

$

$

Not available

22

Toro 19-1510

Spacer-Steering Tube

$

$

Not available

23

Toro 19-1890

BUSHING

$

$

Not available

24

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

25

Toro 30249

Fitting-Grease

$

$

Not available

26

Toro 21-9820

Spindle L.H.

$

$

Not available

27

Toro 21-9860

TIE ROD ASM

$

$

Not available

28

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

29

Toro 25-2330

Front Axle

$

$

Not available

30

Toro 19-1520

FRONT AXLE SPACER

$

$

Not available

31

$218.99

$

Usually ships in 3-6 days

0

32

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0
