56030 - Toro 25" Premium Keylectric Rear-Engine Riding Mower (SN: 003000001 - 003999999) (1973) TRANSMISSION ASSEMBLY Parts Diagram

25" Premium Keylectric Rear-Engine Riding Mower

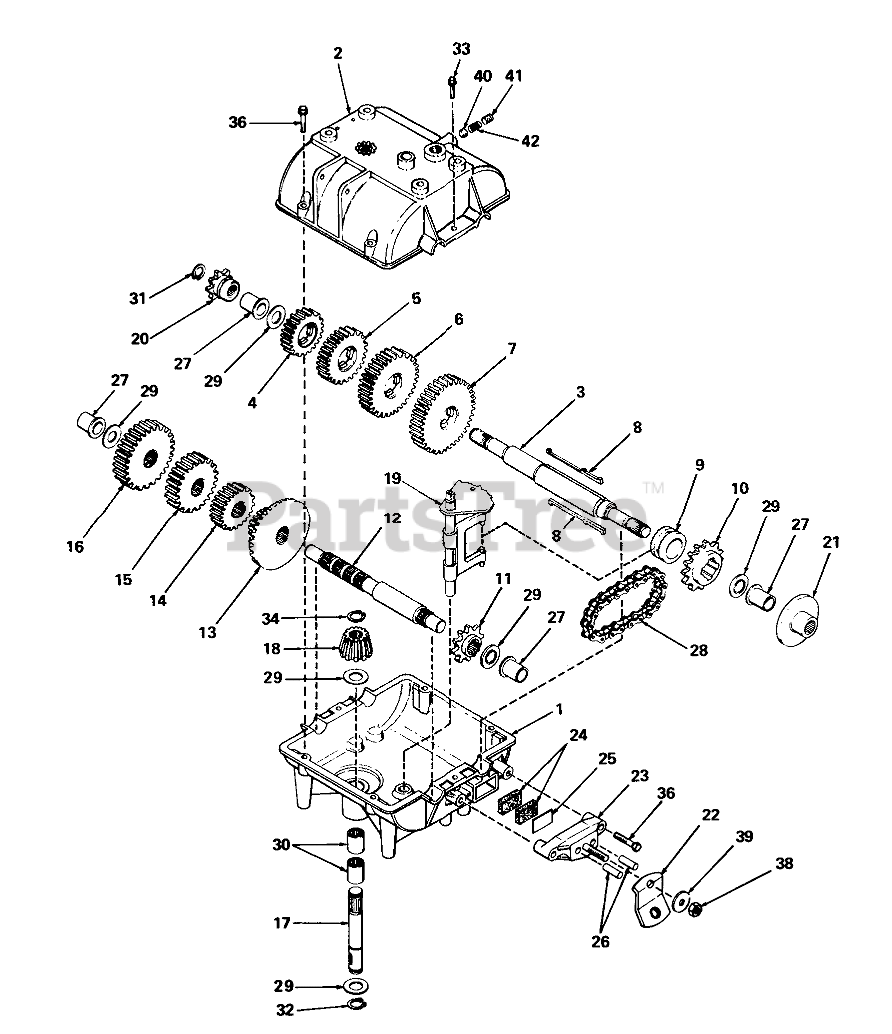

TRANSMISSION ASSEMBLY Parts Diagram

  • Title
1

Toro 770061

Case-Transmission

$

$

Currently unavailable

2

Toro 772070

Cover, Transmission

$

$

Currently unavailable

3

Toro 776133

Shaft, Output & Brake

$

$

Currently unavailable

4

Toro 778105

Gear, Spur (20 Teeth)

$

$

Currently unavailable

5

Toro 778106

Gear, Spur (25 Teeth)

$

$

Currently unavailable

6

Toro 778107

Gear, Spur (30 Teeth)

$

$

Currently unavailable

7

Toro 778108

Gear, Spur (35 Teeth)

$

$

Currently unavailable

8

$

$

Currently unavailable

9

Toro 784216

Collar-Shift

$

$

Currently unavailable

10

Toro 786060

Sprocket (14 Teeth)

$

$

Currently unavailable

11

Toro 786061

Sprocket 10t

$

$

Currently unavailable

12

Toro 776134

Countershaft

$

$

Currently unavailable

13

Toro 778109

Gear-Bevel (42 tooth & 15 tooth spur gear)

$

$

Currently unavailable

14

Toro 778110

Gear, Spur (20 Teeth)

$

$

Currently unavailable

15

Toro 778111

Gear, Spur (25 Teeth)

$

$

Currently unavailable

16

Toro 778112

Gear, Spur (30 teeth)

$

$

Currently unavailable

17

Toro 776135

Shaft-Input

$

$

Currently unavailable

18

Toro 778113

Bevel Pinion, Input

$

$

Currently unavailable

19

Toro 784243

Rod & Fork Assy, Shifter

$

$

Currently unavailable

20

Toro 786047

Sprocket (8Teeth)

$

$

Currently unavailable

21

$

$

Currently unavailable

22

Toro 790004

Lever, Brake

$

$

Currently unavailable

23

Toro 790005

Holder-Brake Pad

$

$

Currently unavailable

24

Toro 790006

Brake Pad

$

$

Currently unavailable

25

Toro 790007

Brake Pad Plate

$

$

Currently unavailable

26

Toro 786026

Dowel Pin

$

$

Currently unavailable

27

Toro 780105

Bushing, Flanged

$

$

Currently unavailable

28

Toro 786062

Chain, Roller (#41 Chain, 22 Links)

$

$

Currently unavailable

29

Toro 780072

Washer

$

$

Currently unavailable

30

Toro 780106

Bearing, Needle

$

$

Currently unavailable

31

Toro 792072

Piston Asm (.020 O S)

$

$

Currently unavailable

32

Toro 792035

Ring-Snap

$

$

Currently unavailable

33

Toro 792059

Screw, Hex Hd. Tap-Tite

$

$

Currently unavailable

34

Toro 788040

Ring-Retainer

$

$

Currently unavailable

36

Toro 792073

Ring Set (.020 O S)

$

$

Currently unavailable

38

Toro 792075

Locknut

$

$

Currently unavailable

39

Toro 792076

Washer

$

$

Currently unavailable

40

Toro 792077

Ball-Steel

$

$

Currently unavailable

41

Toro 792078

Screw-Set

$

$

Currently unavailable

42

Toro 792079

Spring

$

$

Currently unavailable
