56030 - Toro 25" Premium Keylectric Rear-Engine Riding Mower (SN: 003000001 - 003999999) (1973) FRONT AXLE ASSEMBLY Parts Diagram

25" Premium Keylectric Rear-Engine Riding Mower

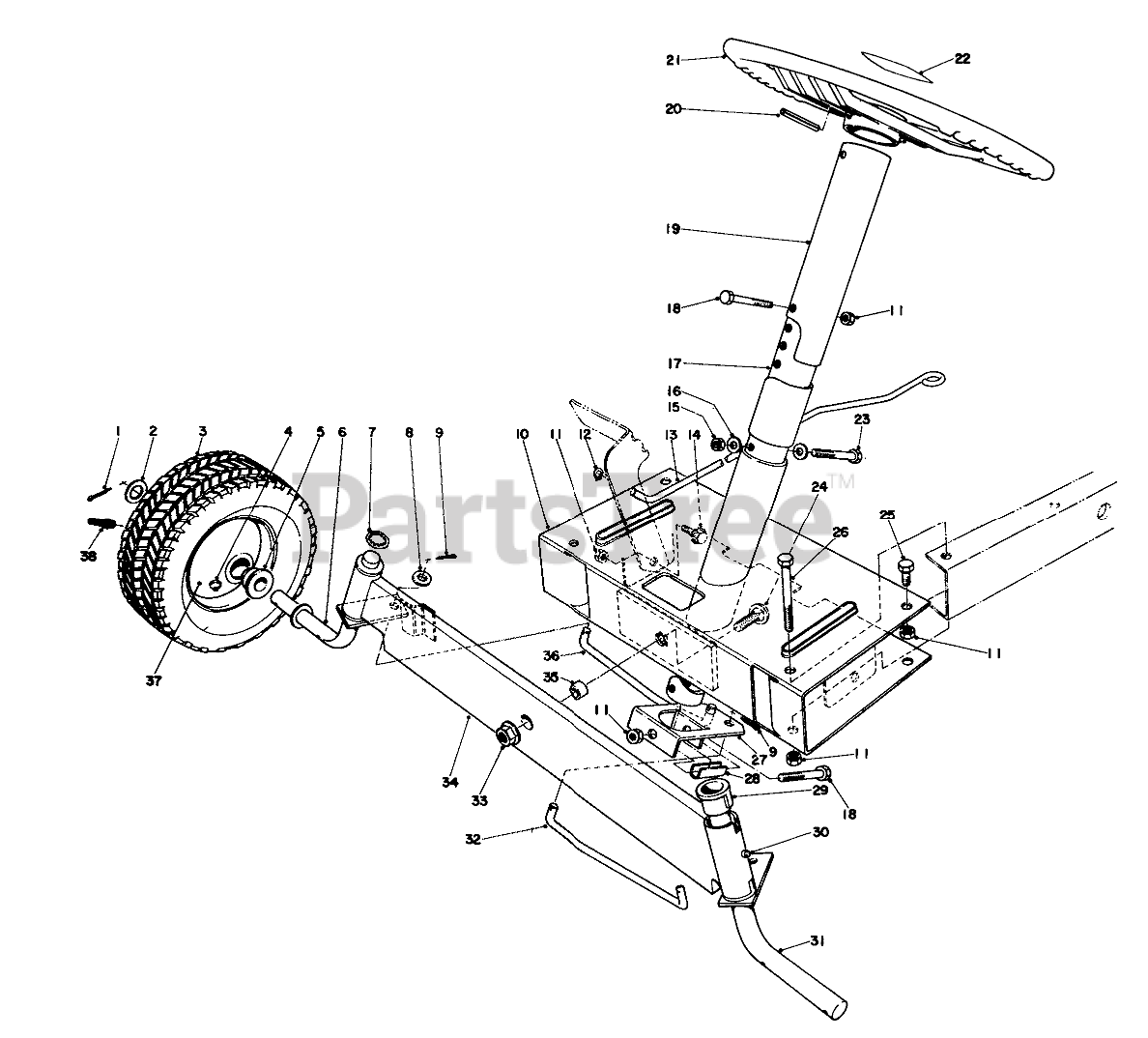

FRONT AXLE ASSEMBLY Parts Diagram

  • Title
1

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

2

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 15

0

3

Toro 231-77

Tire Turf King
(Superseded to 231-116)

$

$

Not available

Toro 231-55

Tire

Note: Not illustrated

$

$

Not available

4

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

5

Toro 256-170

BUSHING

$

$

Not available

6

Toro 17-9930

Spindle-R.H.

$

$

Currently unavailable

7

Toro 3215140

Retaining Ring

$

$

Currently unavailable

8

Toro 325646

Washer

$

$

Currently unavailable

9

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

10

Toro 19-1660

Front Frame

$

$

Currently unavailable

11

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

12

Toro 32120-95

Retaining Ring

$

$

Currently unavailable

13

Toro 19-2230

Brake Rod

$

$

Not available

14

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 5

0

15

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 20+

0

16

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 19-2440

Steering Tube Inner

$

$

Not available

18

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0

19

Toro 12-5710

Steering Tube Outer

$

$

Currently unavailable

20

Toro 32121-10

PIN-ROLL

$8.99

$

Usually ships in 3-6 days

0

21

Toro 12-7540

Steering Wheel

$

$

Not available

22

Toro 19-2010

Decal

$

$

Not available

23

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

24

Toro 3233-2

SCREW-CARR

$7.99

$

Usually ships in 3-6 days

0

25

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

26

Toro 322-14

SCREW-HH

$2.99

$

In Stock, Qty 8

0

27

Toro 19-1500

Steering Lever

$

$

Currently unavailable

28

Toro 19-1510

Spacer-Steering Tube

$

$

Not available

29

Toro 19-1890

BUSHING

$

$

Not available

30

Toro 302-49

GREASE FITTING

$4.49

$

Usually ships in 3-6 days

0

31

Toro 17-9920

Spindle, L.H.

$

$

Currently unavailable

32

Toro 19-1760

Tie Rod-L.H.

$

$

Currently unavailable

33

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

34

Toro 19-1650

Front Axle

$

$

Not available

35

Toro 19-1520

FRONT AXLE SPACER

$

$

Not available

36

Toro 19-1770

Tie Rod-R.H.

$

$

Currently unavailable

37

$218.99

$

Usually ships in 3-6 days

0

38

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 14

0
