56030 - Toro 25" Premium Keylectric Rear-Engine Riding Mower (SN: 003000001 - 003999999) (1973) FRAME ASSEMBLY Parts Diagram

25" Premium Keylectric Rear-Engine Riding Mower

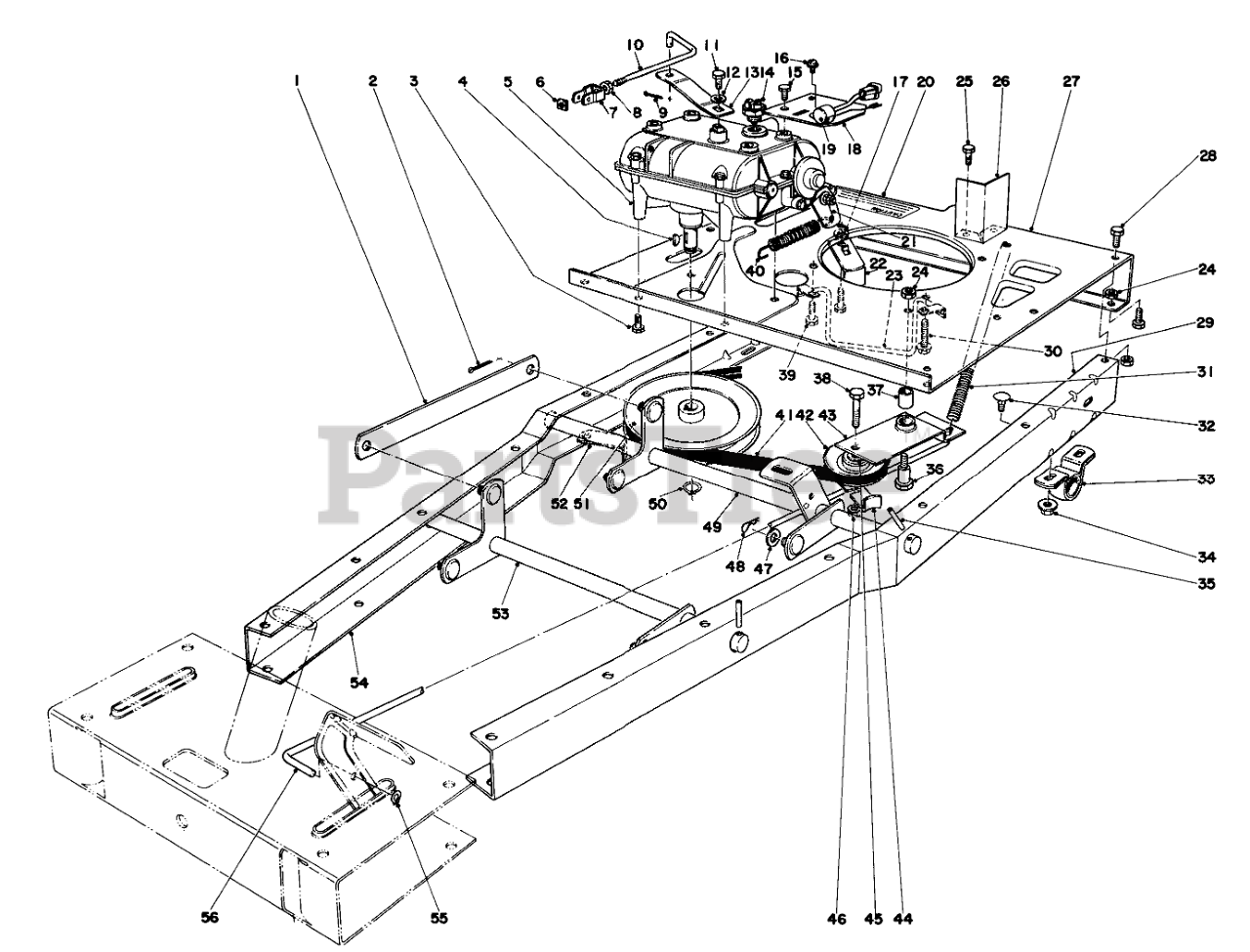

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 17-9530

Linkage-Height Adj.

$

$

Not available

2

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

3

Toro 32140-61

5/16-18 X 5/8 SEMS SC

$

$

Not available

4

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, Qty 20+

0

5

Toro 19-2510

Transmission

$

$

Currently unavailable

6

Toro 32107-5

Nut-Square

$

$

Currently unavailable

7

Toro 17-9830

Bracket-Rod Support

$

$

Currently unavailable

8

Toro 32153-3

NUT-HEX, SIDE DEFORM

$6.49

$

Usually ships in 3-6 days

0

9

Toro 3272-9

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

10

Toro 17-9810

Rod

$

$

Not available

11

Toro 3210-2

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

12

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

13

Toro 17-9820

Linkage-Transmission

$

$

Not available

14

Toro 19-2530

SWITCH

$93.99

$

Usually ships in 3-6 days

0

15

Toro 32104-82

SCREW-HHF

$5.49

$

Usually ships in 3-6 days

0

16

Toro 32104-77

10-16 X 3/8 THDG SCREW

$

$

Not available

17

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

18

Toro 19-2480

Bracket-Charge Plug

$

$

Currently unavailable

19

Toro 19-2420

Control Module

$

$

Not available

20

Toro 19-5850

Decal

$

$

Not available

21

Toro 19-2300

Spring-Brake Return

$

$

Not available

22

Toro 17-2240

Belt Retainer

$

$

Not available

23

Toro 19-2890

Belt Guide

$

$

Not available

24

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

25

Toro 32104-110

SCREW-HH

$

$

Not available

26

Toro 19-9880

Baffle-Carb

$

$

Not available

27

Toro 17-9970

Engine Mounting Plate

$

$

Currently unavailable

28

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

29

Toro 18-8260

Frame Chanel, L.H.
(Superseded to 26-2640)

$

$

Not available

30

Toro 11-0590

SCREW-HWHTF
(Superseded to 32144-102)

$3.49

$

Usually ships in 3-6 days

0

31

Toro 19-5340

Clutch Tension Spring

$

$

Not available

32

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

33

Toro 12-3340

PILLOW BLOCK

$

$

Not available

34

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

35

Toro 32121-6

PIN-ROLL, SLOTTED

$0.99

$

Usually ships in 3-6 days

0

36

Toro 12-5830

CLUTCH PIVOT BOLT

$

$

Not available

37

Toro 256-172

BUSHING

$6.49

$

Usually ships in 3-6 days

0

38

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

39

Toro 32140-96

Sems Screw

$

$

Not available

40

Toro 18-9040

Spring Brake

$

$

Not available

41

Toro 19-2650

V-BELT

$19.99

$

In Stock, only 1 left!

0

42

Toro 12-5820

PULLEY-IDLER

$29.99

$

In Stock, Qty 6

0

43

Toro 17-9940

Traction Idler (Incl. Ref. No. 37)

$

$

Currently unavailable

44

Toro 12-9020

RETAINER-BELT

$

$

Not available

45

Toro 5-0737

Washer

$

$

Not available

46

Toro 32152-2

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 17

0

47

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

48

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

49

Toro 18-8220

Height Adjustment
(Superseded to 26-6960)

$

$

Not available

50

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, Qty 20+

0

51

Toro 7-4085

PULLEY

$186.99

$

In Stock, only 3 left!

0

52

Toro 17-2230

TRANS BELT RET B

$

$

Not available

53

Toro 17-9890

FRONT LIFT WA B

$

$

Not available

54

Toro 18-8250

Frame Channel R.H.

$

$

Not available

55

Toro 32120-95

Retaining Ring

$

$

Currently unavailable

56

Toro 19-2190

CLUTCH ROD

$

$

Not available
