56030 - Toro 25" Premium Keylectric Rear-Engine Riding Mower (SN: 003000001 - 003999999) (1973) ENGINE AND DIFFERENTIAL ASSEMBLY Parts Diagram

25" Premium Keylectric Rear-Engine Riding Mower

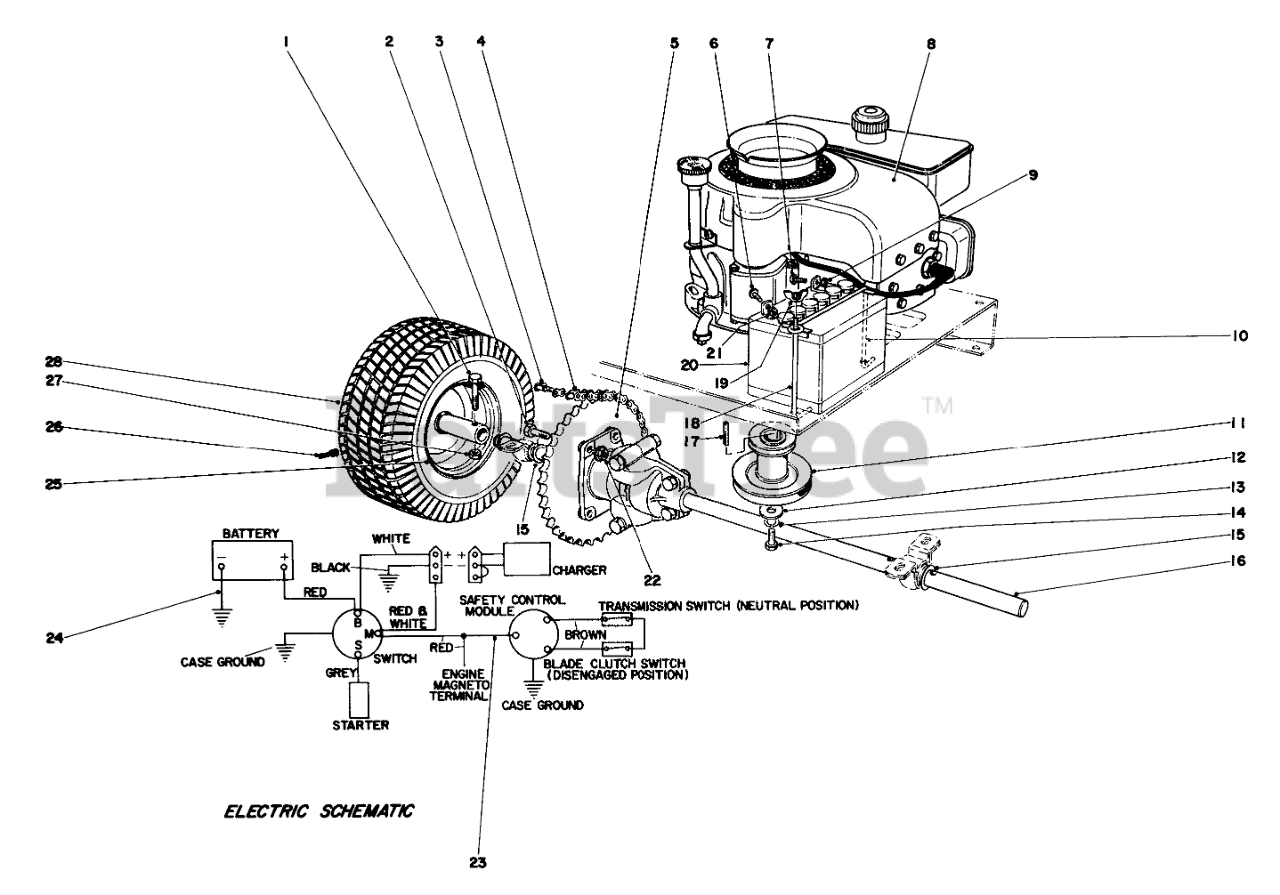

ENGINE AND DIFFERENTIAL ASSEMBLY Parts Diagram

  • Title

1

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 2710-6

LINK-CONNECTING

$19.99

$

Usually ships in 3-6 days

0

4

Toro 17-1700

Chain

$

$

Not available

5

Toro 12-3560

Sprocket

$

$

Currently unavailable

6

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

8

Toro 221-450

Engine

$

$

Currently unavailable

9

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

10

Toro 12-5700

Battery Clamp

$

$

Not available

11

Toro 17-9880

Pulley
(Superseded to 47-5020)

$216.99

$

Usually ships in 3-6 days

0

12

Toro 3256-36

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

13

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

14

Toro 3211-4

SCREW-HH

$1.49

$

In Stock, only 4 left!

0

15

Toro 11-4930

WASHER

$

$

Not available

16

Toro 11-1800

Differential

$

$

Not available

17

Toro 3-0971

KEY

$

$

Not available

18

Toro 12-5950

ROD-SUPPORT, BATTERY

$23.99

$

Usually ships in 3-6 days

0

19

Toro 32103-14

NUT-WING SPECL

$13.99

$

In Stock, only 1 left!

0

20

Toro 239-15

Battery
(Superseded to 26-7290)

$

$

Not available

21

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

22

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

23

Toro 19-2380

Wiring Harness

$

$

Not available

24

Toro 7-7630

ENG-GROUND WIRE ASM

$20.99

$

Usually ships in 3-6 days

0

25

Toro 241-110

Rim

$

$

Not available

26

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 17

0

27

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

28

Toro 231-49

Tire
(Superseded to 231-115)

$97.99

$

Usually ships in 3-6 days

0

Toro 231-67

Tire
(Superseded to 231-115)

Note: Not illustrated

$97.99

$

Usually ships in 3-6 days

0
