56027 - Toro 25" Premium Keylectric Rear-Engine Riding Mower (SN: 005000001 - 005999999) (1975) TECUMSEH ENGINE MODEL NO. LAV50 TYPE 62003 (MODEL NO. 56022) Parts Diagram

25" Premium Keylectric Rear-Engine Riding Mower

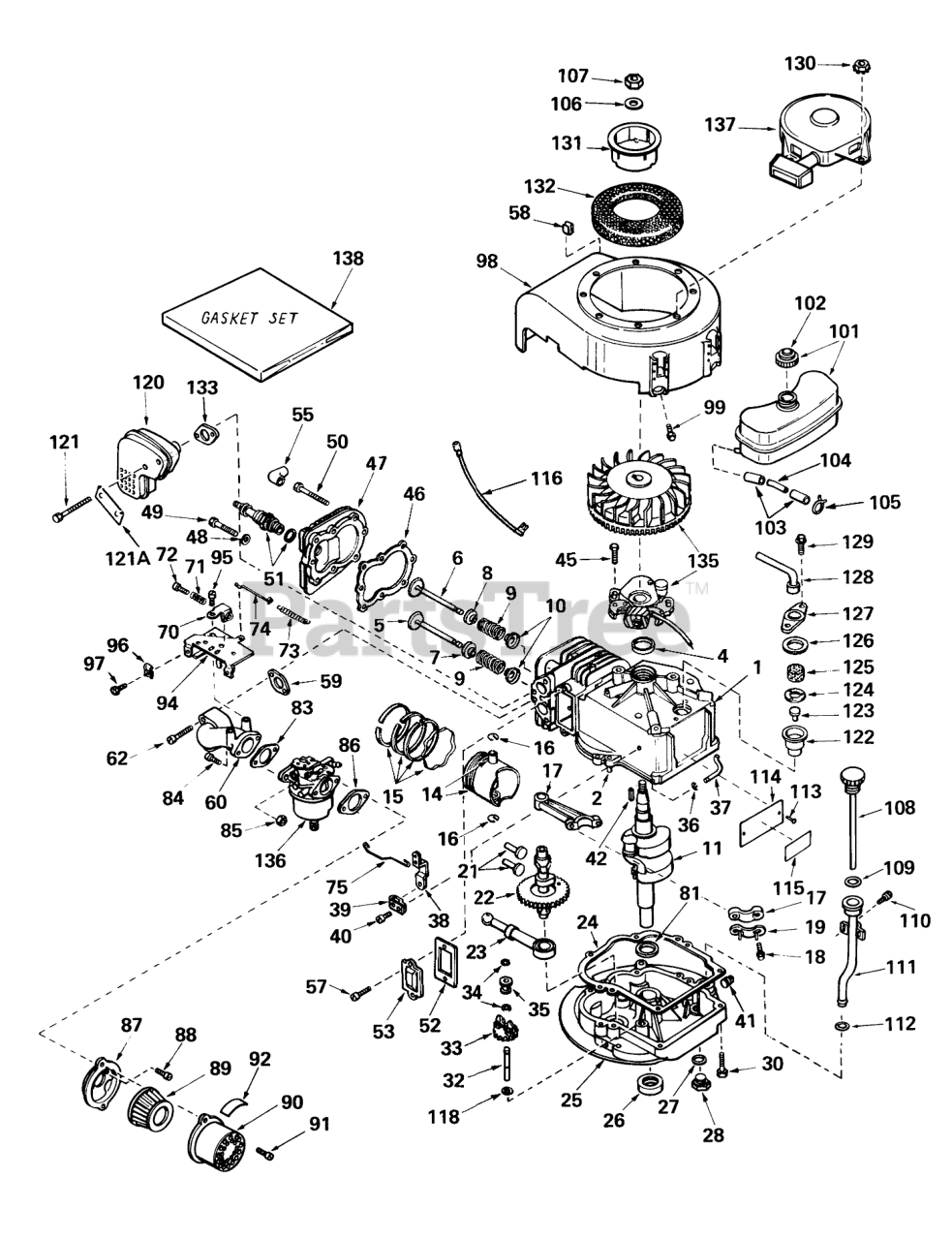

TECUMSEH ENGINE MODEL NO. LAV50 TYPE 62003 (MODEL NO. 56022) Parts Diagram

  • Title

1

Tecumseh 33729

Cylinder Assy., (Incl. Nos.2 & 4)
(Superseded to 36601)

$

$

Currently unavailable

2

Tecumseh 26727

Pin-Dowel

$1.99

$

In Stock, Qty 5

0

4

Tecumseh 32600

Seal-Oil

$

$

Not available

5

Tecumseh 32644

Valve, Intake (Standard) (Incl.Nos. 7, 9 & 10)
(Superseded to 32644A)

$9.99

$

In Stock, only 1 left!

0

5

Tecumseh 32645

Valve, Intake (1/32" Oversize) (Incl. Nos. 7, 9 & 10)
(Superseded to 32645A)

$61.99

$

In Stock, only 2 left!

0

6

Tecumseh 29313B

Valve, Exhaust (Standard) (Incl. Nos. 8, 9 & 10)
(Superseded to 29313C)

$

$

Not available

6

Tecumseh 29315B

Valve, Exhaust (1/32" Oversize) (Incl. Nos. 8, 9 & 10)
(Superseded to 29315C)

$

$

Not available

7

Tecumseh 31671

Cap-Upper Valve Spring

$1.49

$

In Stock, only 2 left!

0

8

Tecumseh 33678

Cap, Upper Valve Spg (Exhaust)

$

$

Currently unavailable

9

Tecumseh 31672

Spring-Valve

$1.99

$

In Stock, Qty 14

0

10

Tecumseh 31673

Cap-Valve, Spring

$1.99

$

In Stock, Qty 5

0

11

Tecumseh 33730

Crankshaft
(Superseded to 33730A)

$

$

Currently unavailable

14

Tecumseh 33680

Piston & Pin Assy., (Standard) (Incl. 2 of No. 16)
(Superseded to 33562B)

$44.99

$

Usually ships in 3-12 days

0

14

Tecumseh 33681

Piston & Pin Assy., (.010 Oversize) (Incl. 2 of No.16)

$

$

Currently unavailable

14

Tecumseh 33682

Piston & Pin Assy., (.020 Oversize) (Incl. 2 of No.16)
(Superseded to 33564B)

$

$

Not available

15

Tecumseh 33567

Ring Set-Piston Std.
(Superseded to 40004)

$74.99

$

In Stock, only 1 left!

0

15

Tecumseh 33568

Ring Set-Piston .010 oversize

$

$

Not available

15

Tecumseh 33569

Ring Set-Piston .020 oversize

$

$

Not available

16

Tecumseh 20381

Ring-Retaining, Piston Pin

$1.99

$

In Stock, Qty 7

0

17

Tecumseh 33661

Rod Assy., Connecting (Incl. Nos. 18 & 19)
(Superseded to 32875)

$47.99

$

In Stock, only 1 left!

0

18

Tecumseh 32610

Connecting Rod Bolt
(Superseded to 32610A)

$1.99

$

In Stock, Qty 6

0

19

Tecumseh 32609

Plate Lock

$0.99

$

Usually ships in 3-12 days

0

21

Tecumseh 27241

Lifter-Valve

$5.49

$

In Stock, only 2 left!

0

22

Tecumseh 33154

Camshaft (Compr. Release)

$47.99

$

In Stock, only 1 left!

0

23

Tecumseh 29914

Oil Pump ASM

$9.49

$

Usually ships in 3-12 days

0

24

Tecumseh 26750A

Gasket, Mounting
(Superseded to 37609)

Note: Indicates items included in Gasket Set Part No. 33740.

$2.99

$

Usually ships in 3-12 days

0

25

Tecumseh 32696

Flange Assy., Mounting (Incl. Nos. 26, 27, 28 & 32)
(Superseded to 37608A)

$77.99

$

Usually ships in 3-12 days

0

26

Tecumseh 27897

Seal-Oil

$8.49

$

In Stock, Qty 14

0

27

Tecumseh 28833

Gasket-Oil Drain

Note: Indicates items included in Gasket Set Part No. 33740.

$1.99

$

In Stock, only 1 left!

0

28

Tecumseh 30572

Plug, Drain
(Superseded to 36083)

$6.99

$

In Stock, Qty 5

0

30

Tecumseh 650488

Screw (1/4-20 x 1-1/4)

$1.99

$

Usually ships in 3-12 days

0

32

Tecumseh 30574

Shaft-Governor
(Superseded to 30574A)

$7.49

$

In Stock, only 2 left!

0

33

Tecumseh 30591

Gear Assy., Governor (Incl. No. 118)

$13.99

$

Usually ships in 3-12 days

0

34

Tecumseh 29193

Ring-Retaining

$1.99

$

In Stock, only 4 left!

0

35

Tecumseh 30588A

Spool-Governor

$1.99

$

In Stock, Qty 5

0

36

Tecumseh 28277

Washer-Flat

$1.99

$

In Stock, only 3 left!

0

37

Tecumseh 30589

Rod, Governor (Incl. No. 36)

$5.49

$

In Stock, only 1 left!

0

38

Tecumseh 32651

Governor Lever

$

$

Not available

39

Tecumseh 31335

Clamp-Lever, Governor

$1.99

$

In Stock, only 1 left!

0

40

Tecumseh 650548

Screw
(Superseded to 651018)

$1.99

$

In Stock, Qty 5

0

41

Tecumseh 9556

Plug-Pipe
(Superseded to 28534)

$1.99

$

In Stock, only 4 left!

0

42

Tecumseh 27247

Key Flywheel
(Superseded to 610961)

$1.49

$

In Stock, Qty 20+

0

45

Tecumseh 650489

Screw

$

$

Not available

46

Tecumseh 33554

Oil Fill Tube
(Superseded to 36443)

Note: Indicates items included in Gasket Set Part No. 33740.

$5.99

$

In Stock, Qty 5

0

47

Tecumseh 33016

Head Cylinder
(Superseded to 37675)

$41.99

$

Usually ships in 3-12 days

0

48

Tecumseh 26073

Washer

$

$

Not available

49

Tecumseh 6021

Screw
(Superseded to 6021A)

$1.99

$

In Stock, Qty 6

0

50

Tecumseh 650694

Screw Hex Hd. Cap
(Superseded to 650694A)

$3.49

$

In Stock, Qty 20+

0

51

Tecumseh 33636

Plug, Spark (J17LM or equiv.)

$5.99

$

In Stock, Qty 8

0

52

Tecumseh 27234

Gasket-Breather
(Superseded to 27234A)

Note: Indicates items included in Gasket Set Part No. 33740.

$5.99

$

In Stock, only 1 left!

0

53

Tecumseh 32755

Cover-Valve

$5.49

$

Usually ships in 3-12 days

0

55

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 2 left!

0

57

Tecumseh 650128

Screw

$5.49

$

In Stock, only 2 left!

0

58

Tecumseh 27275

51004 GIL ROTARY TI

$1.99

$

In Stock, Qty 6

0

59

Tecumseh 33751

Gasket, Intake
(Superseded to 33751A)

Note: Indicates items included in Gasket Set Part No. 33740.

$2.99

$

Usually ships in 3-12 days

0

60

Tecumseh 33739

Pipe, Intake

$25.99

$

Usually ships in 3-12 days

0

62

Tecumseh 650142

Screw, Fil. Slotted Hd.Sems

$1.99

$

Usually ships in 3-12 days

0

70

Tecumseh 33150

Brachet, Control

$1.99

$

In Stock, only 1 left!

0

71

Tecumseh 32924

Spring

$1.99

$

In Stock, only 3 left!

0

72

Tecumseh 650688

Screw, Hex Hd.

$3.99

$

Usually ships in 3-12 days

0

73

Tecumseh 31386

Spring, Governor

$4.49

$

In Stock, Qty 15

0

74

Tecumseh 33151

Link Governor Spring

$1.99

$

In Stock, only 3 left!

0

75

Tecumseh 33133

Link Governor

$1.99

$

Usually ships in 3-12 days

0

81

Tecumseh 32323

Washer-Thrust

$8.49

$

Usually ships in 3-12 days

0

83

Tecumseh 26756

Gasket

Note: Indicates items included in Gasket Set Part No. 33740.

$2.99

$

In Stock, only 1 left!

0

84

Tecumseh 6201

Screw (1/4-28 x 7/8)

$

$

Not available

85

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, Qty 7

0

86

Tecumseh 27272

Gasket
(Superseded to 27272A)

Note: Indicates items included in Gasket Set Part No. 33740.

$4.49

$

In Stock, Qty 20+

0

87

Tecumseh 31691

Bracket

$22.99

$

In Stock, only 1 left!

0

88

Tecumseh 28820

Screw (10-32 x 1/2)
(Superseded to 651081)

$4.49

$

In Stock, only 3 left!

0

89

Tecumseh 30727

Element

$7.49

$

In Stock, Qty 5

0

90

Tecumseh 31692

Body
(Superseded to 31715)

$21.99

$

In Stock, Qty 7

0

91

Tecumseh 650152

Screw

$2.49

$

In Stock, only 3 left!

0

92

Tecumseh 31752

Decal

$

$

Not available

94

Tecumseh 33155

Control Assy., Speed
(Superseded to 33155A)

$

$

Not available

95

Tecumseh 30200

Screw (10-24 x 9/16)

$1.49

$

In Stock, Qty 10

0

96

Tecumseh 27793

Conduit

$1.99

$

In Stock, only 2 left!

0

97

Tecumseh 28942

Screw (10-32 x 3/8)

$1.49

$

In Stock, only 4 left!

0

98

Tecumseh 33738

Housing, Blower
(Superseded to 33738D)

Note: In original production the starter is riveted to the blower housing. If either the starter or blower housing requires replacement both will have to be ordered. Also order four 14) nuts illustrated on attach replacement starter to replacement blower hou

$

$

Not available

99

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

101

Tecumseh 32671

Tank Assy., Fuel (Incl. No. 102)

$

$

Not available

102

Tecumseh 410144B

Cap, Fuel
(Superseded to 33032)

$7.49

$

Usually ships in 3-12 days

0

103

Tecumseh 29774

Line-Fuel (8.62)

$34.99

$

In Stock, Qty 5

0

104

Tecumseh 33754

Line, Fuel

$

$

Not available

105

Tecumseh 26460

Clamp-Line, Fuel

$1.49

$

In Stock, Qty 20+

0

106

Tecumseh 650763

Washer-Spring
(Superseded to 650815)

$1.99

$

In Stock, Qty 10

0

107

Tecumseh 650607

Hex Nut

$1.99

$

In Stock, Qty 7

0

108

Tecumseh 33760

Dipstick Assy., Oil (Incl. No. 109)

$

$

Currently unavailable

109

Tecumseh 29985

O-Ring

$1.99

$

Usually ships in 3-12 days

0

110

Tecumseh 650562

Screw (10-32 x 1/2)

$1.99

$

In Stock, Qty 9

0

111

Tecumseh 33784

Tube Assy., Oil Fill

$

$

Currently unavailable

112

Tecumseh 30139

O-Ring

$1.99

$

In Stock, only 3 left!

0

113

Tecumseh 28670

Stud

$

$

Currently unavailable

114

Tecumseh 31345

IDENTIFICATION PLATE

$

$

Currently unavailable

115

Tecumseh 31865

480B GIL SNWTHWR O/
(Superseded to 36261)

$

$

Not available

116

Tecumseh 610683

SPOOL RETAINER (10-PK)

$5.10

$

In Stock, only 1 left!

0

118

Tecumseh 30590A

Washer-Flat

$1.99

$

In Stock, Qty 5

0

120

Tecumseh 33697

Muffler
(Superseded to 33697A)

$40.99

$

Usually ships in 3-12 days

0

121A

Tecumseh 33753

Plate-Lock
(Superseded to 37673)

$5.99

$

Usually ships in 3-12 days

0

122

Tecumseh 33731

Body Breather Tube
(Superseded to 34214B)

$

$

Not available

123

Tecumseh 33732

Valve Check
(Superseded to 34214B)

$

$

Not available

124

Tecumseh 33733

2000A37 WIZARD ROTA
(Superseded to 34214B)

$

$

Not available

125

Tecumseh 33734

Element-Breather

$1.99

$

In Stock, Qty 11

0

126

Tecumseh 33735

Gasket-Breather

Note: Indicates items included in Gasket Set Part No. 33740.

$1.99

$

Usually ships in 3-12 days

0

127

Tecumseh 33737

Cover Breather
(Superseded to 34214B)

$

$

Not available

128

Tecumseh 33736

Tube, Breather
(Superseded to 33886)

$

$

Not available

129

Tecumseh 650768

Screw, Hex Hd. w/Conical
(Superseded to 30200)

$1.49

$

In Stock, Qty 10

0

130

Tecumseh 29752

Nut and Lock Washer (1/4-28)

Note: In original production the starter is riveted to the blower housing. If either the starter or blower housing requires replacement both will have to be ordered. Also order four 14) nuts illustrated on attach replacement starter to replacement blower hou

$1.99

$

In Stock, Qty 7

0

131

Tecumseh 33667

Cup, Starter

$

$

Not available

132

Tecumseh 33668

Screen-Starter

$7.49

$

Usually ships in 3-12 days

0

133

Tecumseh 33670

Gasket-Exhaust
(Superseded to 35865)

Note: Indicates items included in Gasket Set Part No. 33740.

$2.49

$

In Stock, only 4 left!

0

135

Tecumseh 610862

Magneto

$

$

Currently unavailable

136

Tecumseh 631716

Carburetor (Incl. No. 83)
(Superseded to 631716A)

$

$

Not available

137

Tecumseh 590420

Starter, Rewind
(Superseded to 590420A)

Note: In original production the starter is riveted to the blower housing. If either the starter or blower housing requires replacement both will have to be ordered. Also order four 14) nuts illustrated on attach replacement starter to replacement blower hou

$68.99

$

In Stock, only 1 left!

0

138

Tecumseh 33740

Gasket Set
(Superseded to 33740F)

$17.99

$

Usually ships in 3-12 days

0
