56027 - Toro 25" Premium Keylectric Rear-Engine Riding Mower (SN: 005000001 - 005999999) (1975) STARTER MOTOR (MODEL 56027) Parts Diagram

25" Premium Keylectric Rear-Engine Riding Mower

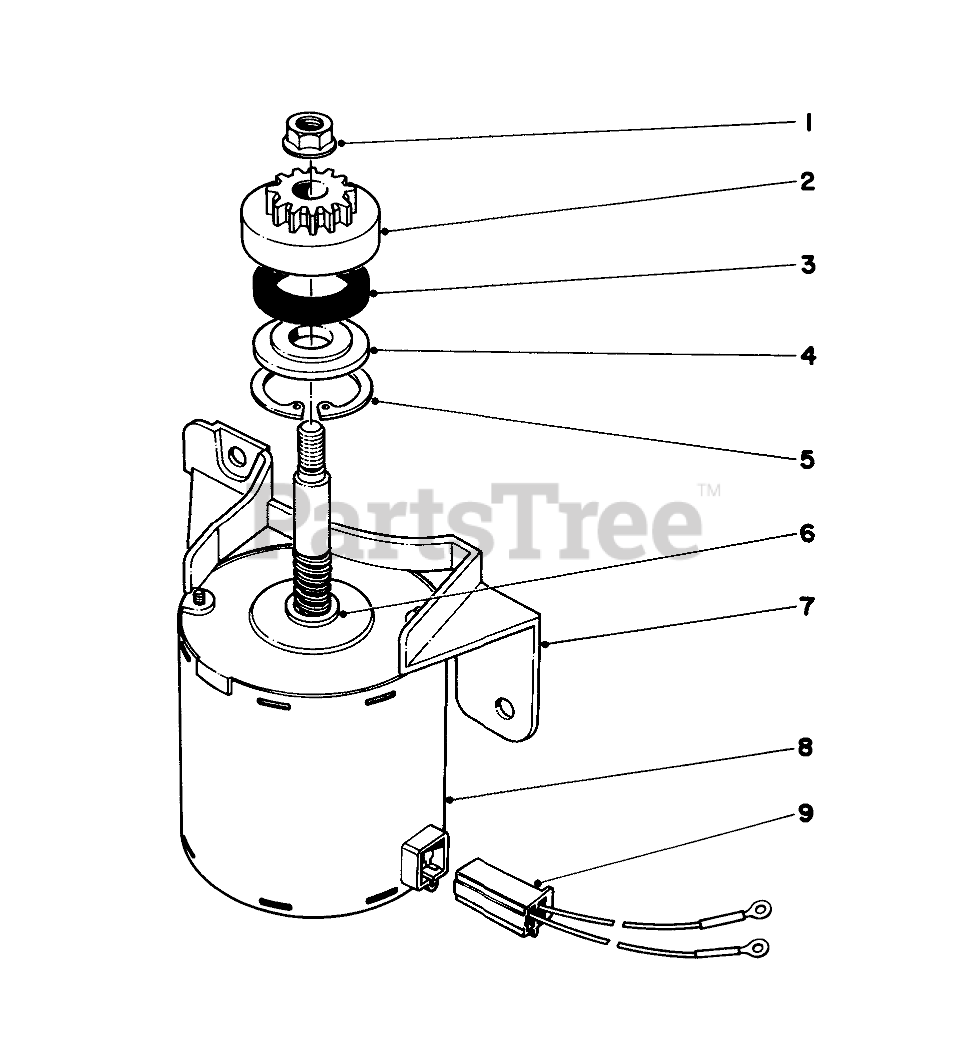

STARTER MOTOR (MODEL 56027) Parts Diagram

  • Title

1

Toro 32128-16

NUT-HHF

$0.99

$

In Stock, only 3 left!

0

2

Toro 17-0470

Pinion Assembly (Incl. Ref. Nos. 3, 4 and 5)
(Superseded to 43-4370)

$104.99

$

Usually ships in 3-6 days

0

3

Toro 5-4724

RUBBER RING

$

$

Not available

4

Toro 19-5690

Control Nut
(Superseded to 25-4000)

$

$

Not available

5

Toro 3215142

Retaining Clip

$

$

Currently unavailable

6

Toro 23-9590

Spacer
(Superseded to 23-9591)

$

$

Not available

7

Toro 218472

Mounting Bracket
(Superseded to 700104)

$16.99

$

Usually ships in 3-6 days

0

8

Toro 23-0900

Starter Motor
(Superseded to 49-4210)

$

$

Not available

9

Toro 22-7100

Terminal Assembly

$

$

Not available
