56027 - Toro 25" Premium Keylectric Rear-Engine Riding Mower (SN: 005000001 - 005999999) (1975) 25" MOWER ASSEMBLY Parts Diagram

25" Premium Keylectric Rear-Engine Riding Mower

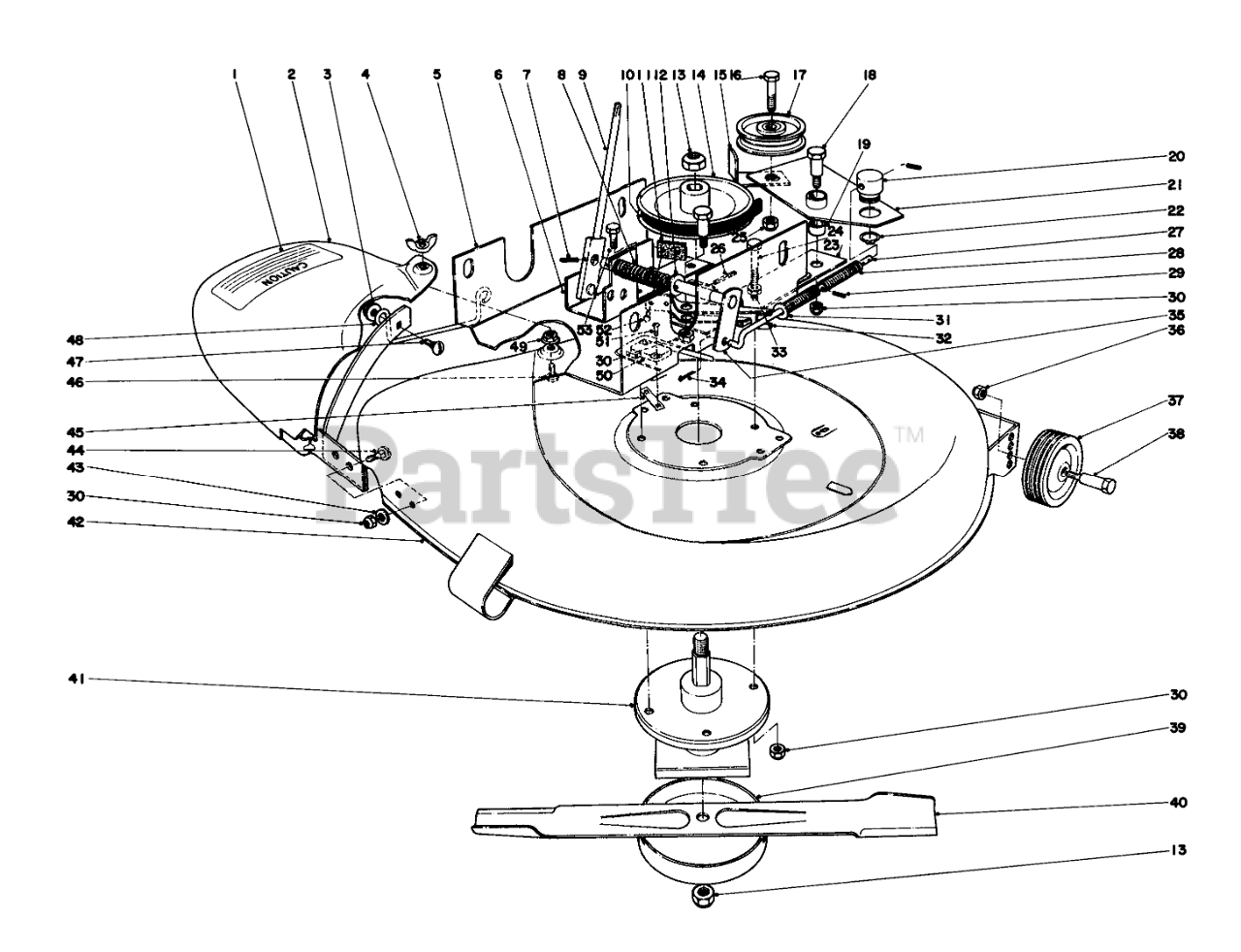

25" MOWER ASSEMBLY Parts Diagram

  • Title

1

Toro 12-2890

Decal
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

2

Toro 24-6730

DEFLECTOR WA R
(Superseded to 24-6730-01)

$

$

Not available

3

Toro 32128-10

NUT-LOCK, HHF

$0.99

$

In Stock, Qty 20+

0

4

Toro 3-2625

Wing Nut

$

$

Not available

5

Toro 18-8210

CHANNEL HT ADJ R

$256.99

$

Usually ships in 3-6 days

0

6

Toro 17-9870

Mounting Bracket Blade

$

$

Not available

7

Toro 32121-16

PIN-SPRING

$0.99

$

In Stock, Qty 8

0

8

Toro 19-1930

COMP SPRING O

$

$

Not available

9

Toro 17-9640

Deck Engagement Lever
(Superseded to 26-4460)

$

$

Not available

10

Toro 18-8890

V-Belt
(Superseded to 26-3050)

$

$

Not available

11

Toro 7-0643

BLADE BRAKE LINING

$

$

Not available

12

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 17-0980

Nut

$11.99

$

In Stock, only 4 left!

0

14

Toro 19-1720

Pulley
(Superseded to 26-4020)

$

$

Not available

15

Toro 18-8280

Belt Retainer

$

$

Not available

16

Toro 323-19

SCREW-HH

$1.99

$

In Stock, Qty 11

0

17

Toro 74660

Flat Idler

$

$

Currently unavailable

18

Toro 12-5830

CLUTCH PIVOT BOLT

$

$

Not available

19

Toro 256-172

BUSHING

$6.49

$

Usually ships in 3-6 days

0

20

Toro 19-2500

Pivot Pin

$

$

Not available

21

Toro 17-9850

Idler Arm (Incl. Ref. #19)

$

$

Not available

22

Toro 32120-93

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

23

Toro 17-9540

Bracket Idler Mounting

$

$

Not available

24

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 10

0

25

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

26

Toro 3212145

Pin-Roll

$

$

Currently unavailable

27

Toro 17-9520

Blade Engage Rod

$

$

Not available

28

Toro 18-9050

DECK IDLER SPRING

$

$

Not available

29

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

30

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

31

Toro 5-1350

WASHER
(Superseded to 5-4460)

$7.99

$

In Stock, Qty 6

0

32

Toro 19-5980

Blade Brake
(Superseded to 53-4340)

$

$

Not available

33

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

34

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

35

Toro 17-9960

Linkage

$

$

Not available

36

Toro 32146-12

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

37

Toro 11-1580

Wheel
(Superseded to 92-6036)

$9.49

$

Usually ships in 3-6 days

0

38

Toro 3-2652

Bolt

$

$

Not available

39

Toro 7-3522

Cup
(Superseded to 92-6313)

$53.99

$

In Stock, only 1 left!

0

40

Toro 12-2930

Blade
(Superseded to 12-2930-03)

$

$

Not available

41

Toro 19-2140

Mower Spindle

$

$

Not available

42

Toro 24-6700

HOUSING WA R

$

$

Not available

43

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

44

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

45

Toro 3290-354

NUT-SPEED

$10.99

$

Usually ships in 3-6 days

0

46

Toro 3230-10

BOLT-CARR

$3.99

$

In Stock, only 4 left!

0

47

Toro 3229-22

SCREW-CARRIAGE
(Superseded to 3229-11)

$1.49

$

In Stock, Qty 20+

0

48

Toro 17-0960

Bracket Foot Guard

$

$

Not available

49

Toro 3290-147

PAL NUT

$

$

Not available

50

Toro 12-9080

MICRO SWITCH

$

$

Not available

51

Toro 3290-313

SCREW-SPH

$7.49

$

Usually ships in 3-6 days

0

52

Toro 3295-25

Rivet

$

$

Not available

53

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
