56027 - Toro 25" Premium Keylectric Rear-Engine Riding Mower (SN: 004000001 - 004999999) (1974) TRANSMISSION ASSEMBLY Parts Diagram

25" Premium Keylectric Rear-Engine Riding Mower

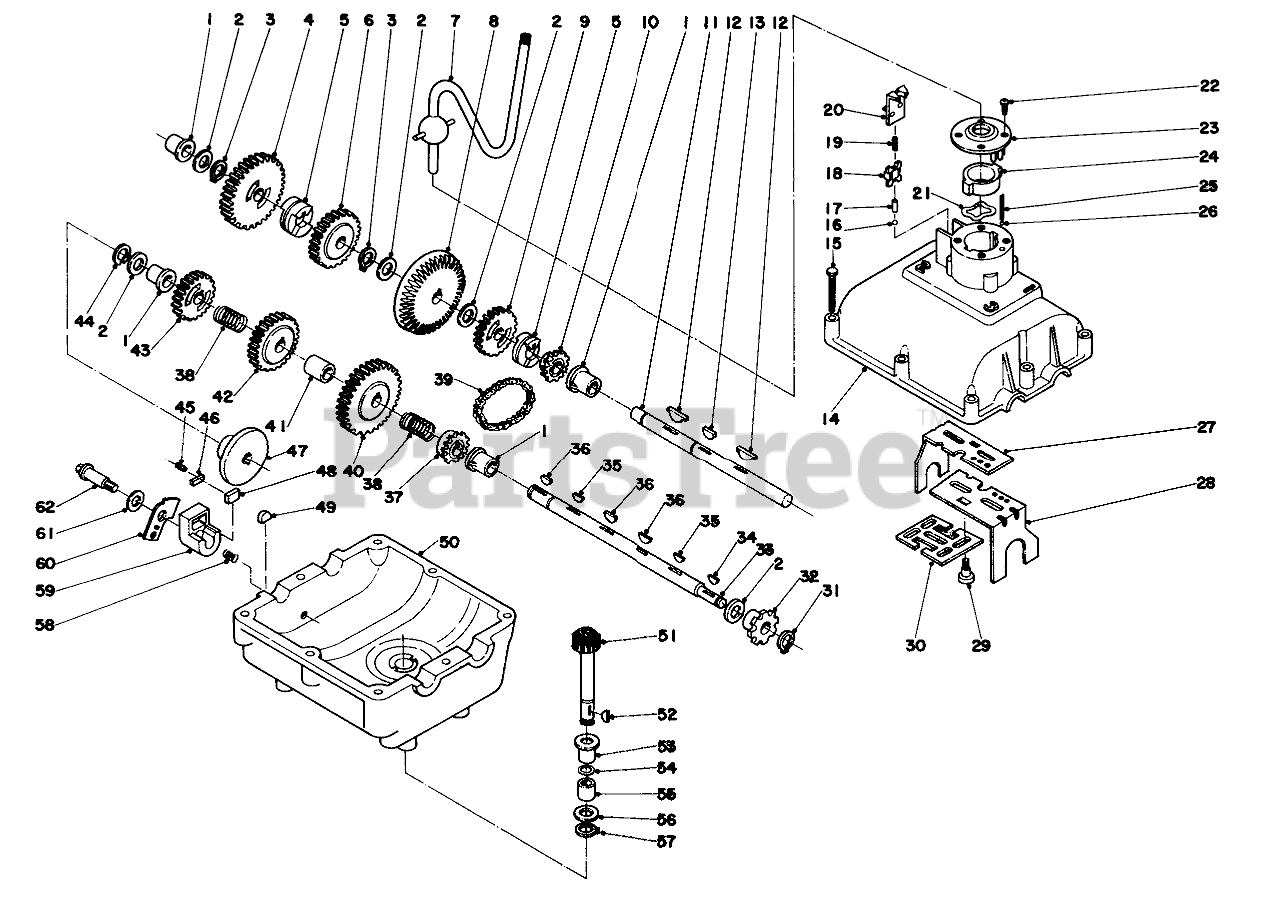

TRANSMISSION ASSEMBLY Parts Diagram

  • Title

1

Toro 2119-458

Flange Bearing

$

$

Not available

2

Toro 2119-625

WASHER KIT

$

$

Not available

3

Toro 2119-554

Retaining Ring

$

$

Not available

4

Toro 2119-611

Spur Gear 30T

$

$

Not available

5

Toro 2119-461

Clutch Collar
(Superseded to 2119-570)

$167.99

$

Usually ships in 3-6 days

0

6

Toro 2119-465

Spur Gear 25T

$

$

Not available

7

Toro 2119-622

Shift Lever

$

$

Currently unavailable

8

Toro 2119-474

Bevel Gear 42T

$

$

Not available

9

Toro 2119-475

Spur Gear 20T

$

$

Not available

10

Toro 2119-476

Sprocket 12T

$

$

Not available

11

Toro 2119-613

Drive Shaft

$

$

Not available

12

Toro 2119-484

Hi Pro Key

$

$

Not available

13

Toro 2119-468

Woodruff Key

$

$

Not available

14

Toro 2119-616

Upper Housing

$

$

Not available

15

Toro 2119-489

Screw

$

$

Not available

Toro 2119-621

Switch Kit Assembly (Incl. Ref. #16-20)

Note: Not illustrated

$

$

Not available

16

Ball Detent

$

$

Not available

17

Actuating Pin

$

$

Not available

18

Carrier Contact Assembly

$

$

Not available

19

Compression Spring

$

$

Not available

20

Terminal Board

$

$

Not available

21

Toro 2119-492

Wave Washer

$

$

Not available

22

Toro 2119-619

Screw

$

$

Not available

23

Toro 2119-618

Nylon Cover

$

$

Not available

24

Toro 2119-493

Nylon Insert

$

$

Not available

25

Toro 2119-617

Detent Spring

$

$

Not available

26

Toro 2119-490

Detent Ball

$

$

Not available

27

Toro 2119-615

RH FORK

$

$

Not available

28

Toro 2119-487

FORK

$

$

Not available

29

Toro 2119-486

Shoulder Screw

$

$

Not available

30

Toro 2119-485

Lock-Out Plate

$

$

Not available

31

Toro 2119-606

Retaining Ring

$

$

Not available

32

Toro 2119-453

Sprocket 8T
(Superseded to 2119-125)

$

$

Not available

33

Toro 2119-482

Output Shaft

$

$

Not available

34

Toro 2119-479

Woodruff Key

$

$

Not available

35

Toro 2119-480

KEY

$

$

Not available

36

Toro 2119-481

Woodruff Key

$

$

Not available

37

Toro 2119-478

Sprocket 12T

$

$

Not available

38

Toro 2119-462

Spring Compression

$

$

Not available

39

Toro 2119-477

Chain

$

$

Not available

40

Toro 2119-467

Spur Gear 30T

$

$

Not available

41

Toro 2119-466

Spacer

$

$

Not available

42

Toro 2119-464

Spur Gear 25T

$

$

Not available

43

Toro 2119-459

Spur Gear 20T

$

$

Not available

44

Toro 2119-550

RETAINING RING

$

$

Not available

45

Toro 2119-588

Set Screw

$

$

Not available

46

Toro 2119-608

Spacer

$

$

Not available

47

Toro 2119-562

BRAKE DISC

$

$

Not available

48

Toro 2119-601

FRICTION PUCK

$

$

Not available

49

Toro 2119-563

FRICTION PUCK

$

$

Not available

50

Toro 2119-612

Lower Housing

$

$

Not available

Toro 2119-614

Input Shaft Assembly (Incl. Ref. #1)

Note: Not illustrated

$

$

Not available

51

Input Shaft

$

$

Not available

52

Woodruff Key

$

$

Not available

53

Flange Bearing

$

$

Not available

54

Washer

$

$

Not available

56

Washer

$

$

Not available

57

RING-Retaining

$

$

Not available

58

Toro 2119-564

Compression Spring

$

$

Not available

59

Toro 2119-594

Brake Jaw

$

$

Not available

60

Toro 2119-559

Actuating Lever

$

$

Not available

61

Toro 2119

Washer Kit

$

$

Currently unavailable

62

Toro 2119-558

Shoulder Bolt

$

$

Not available

Toro 2119-603

Brake Service Kit (Incl. Ref. #46 & 48-49 & 51)

Note: Not illustrated

$

$

Not available
