56022 - Toro 25" Premium Rear-Engine Riding Mower (SN: 005000001 - 005999999) (1975) TECUMSEH ENGINE MODEL NO. LAV50 TYPE 62004 (MODEL NO. 56027) Parts Diagram

25" Premium Rear-Engine Riding Mower

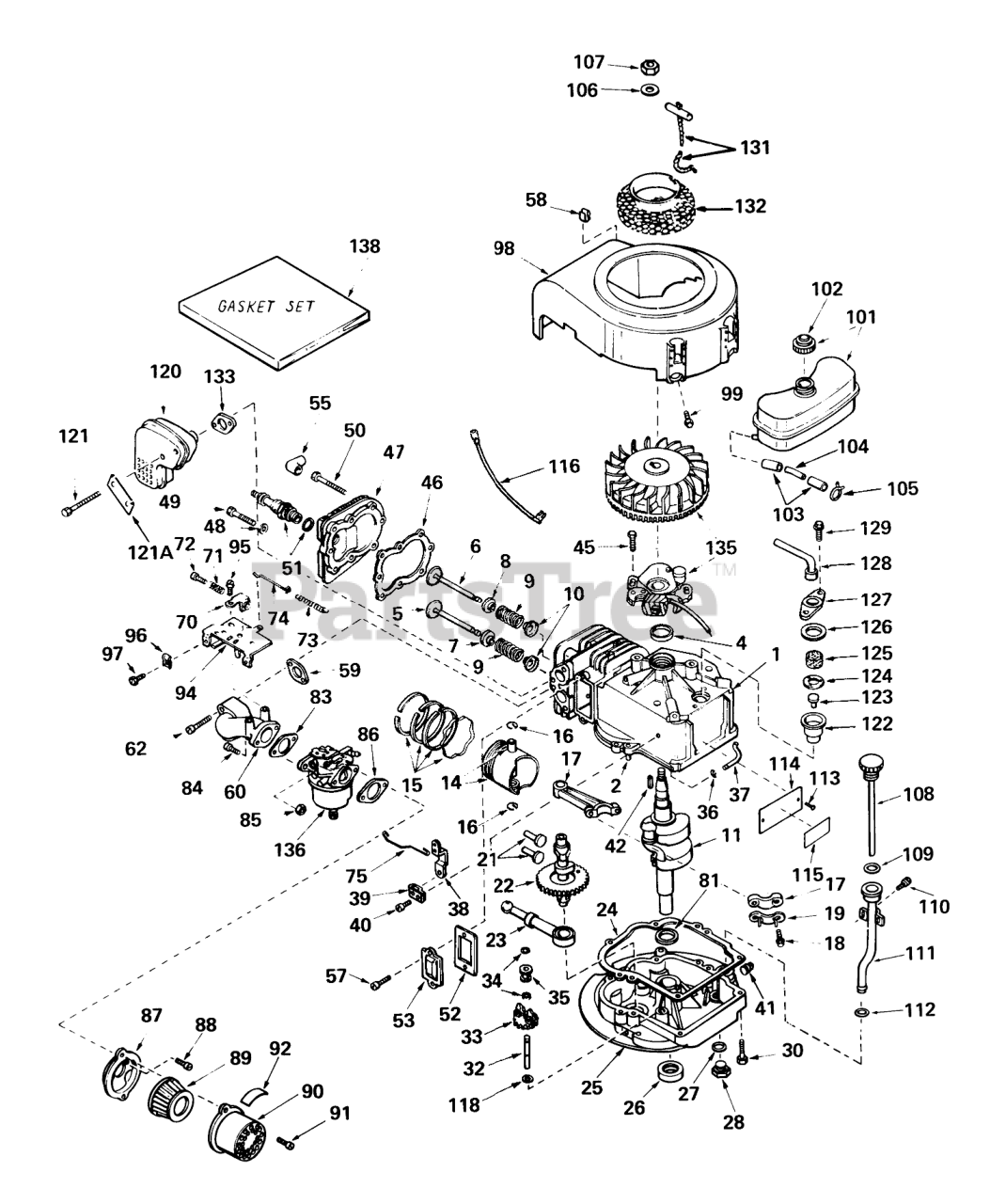

TECUMSEH ENGINE MODEL NO. LAV50 TYPE 62004 (MODEL NO. 56027) Parts Diagram

  • Title

1

Tecumseh 33729

Cylinder Assy., (Incl. Nos.2 & 4)
(Superseded to 36601)

$

$

Currently unavailable

2

Tecumseh 26727

Pin-Dowel

$1.99

$

In Stock, Qty 5

0

4

Tecumseh 32600

Seal-Oil

$

$

Not available

5

Tecumseh 32644

Valve, Intake (Standards) (Incl. Nos. 7, 9 & 10)
(Superseded to 32644A)

$9.99

$

In Stock, only 3 left!

0

5

Tecumseh 32645

Valve, Intake (1/32" Oversize) (Incl. Nos. 7, 9 & 10)
(Superseded to 32645A)

$61.99

$

In Stock, only 2 left!

0

6

Tecumseh 29313B

Valve, Exhaust (Standard) (Incl. Nos. 8, 9 & 10)
(Superseded to 29313C)

$

$

Not available

6

Tecumseh 29315B

Valve, Exhaust (1/32" Oversize) (Incl. Nos. 8, 9 & 10)
(Superseded to 29315C)

$

$

Not available

7

Tecumseh 31671

Cap-Upper Valve Spring

$1.49

$

In Stock, only 2 left!

0

8

Tecumseh 33678

Cap, Upper Valve Spg (Exhaust)

$

$

Currently unavailable

9

Tecumseh 31672

Spring-Valve

$1.99

$

In Stock, Qty 14

0

10

Tecumseh 31673

Cap-Valve, Spring

$1.99

$

In Stock, only 1 left!

0

11

Tecumseh 33730A

Crankshaft Assy.

$

$

Currently unavailable

14

Tecumseh 33680

Piston & Pin Assy., (Standard) (Incl. 2 of No. 16)
(Superseded to 33562B)

$44.99

$

Usually ships in 3-12 days

0

14

Tecumseh 33681

Piston & Pin Assy., (.010 Oversize) (Incl.2 of No. 16)

$

$

Currently unavailable

14

Tecumseh 33682

Piston & Pin Assy., (.020 Oversize) (Incl.2 of No. 16)
(Superseded to 33564B)

$

$

Not available

15

Tecumseh 33567

Ring Set-Piston Std.
(Superseded to 40004)

$74.99

$

In Stock, only 1 left!

0

15

Tecumseh 33568

Ring Set-Piston .010 oversize

$

$

Not available

15

Tecumseh 33569

Ring Set-Piston .020 oversize

$

$

Not available

16

Tecumseh 20381

Ring-Retaining, Piston Pin

$1.99

$

In Stock, Qty 7

0

17

Tecumseh 33661

Rod Assy., Connecting (Incl. Nos. 18 & 19)
(Superseded to 32875)

$47.99

$

In Stock, only 1 left!

0

18

Tecumseh 32610

Connecting Rod Bolt
(Superseded to 32610A)

$1.99

$

In Stock, Qty 6

0

19

Tecumseh 32609

Plate Lock

$0.99

$

Usually ships in 3-12 days

0

21

Tecumseh 27241

Lifter-Valve

$5.49

$

In Stock, only 2 left!

0

22

Tecumseh 33154

Camshaft (Compr. Release)

$47.99

$

In Stock, only 1 left!

0

23

Tecumseh 29914

Oil Pump ASM

$9.49

$

Usually ships in 3-12 days

0

24

Tecumseh 26750A

Gasket, Mounting
(Superseded to 37609)

Note: Indicates items included in Gasket Set Part No. 33740.

$2.99

$

Usually ships in 3-12 days

0

25

Tecumseh 32696

Flange Assy., Mounting (Incl. Nos. 26, 27, 28 & 32)
(Superseded to 37608A)

$77.99

$

Usually ships in 3-12 days

0

26

Tecumseh 27897

Seal-Oil

$8.49

$

In Stock, only 3 left!

0

27

Tecumseh 28833

Gasket-Oil Drain

Note: Indicates items included in Gasket Set Part No. 33740.

$1.99

$

In Stock, only 1 left!

0

28

Tecumseh 30572

Plug, Drain
(Superseded to 36083)

$6.99

$

In Stock, Qty 5

0

30

Tecumseh 650488

Screw (1/4-20 x 1-1/4)

$1.99

$

Usually ships in 3-12 days

0

32

Tecumseh 30574

Shaft-Governor
(Superseded to 30574A)

$7.49

$

In Stock, only 4 left!

0

33

Tecumseh 30591

Gear Assy., Governor (Incl. No. 118)

$13.99

$

In Stock, only 1 left!

0

34

Tecumseh 29193

Ring-Retaining

$1.99

$

In Stock, Qty 6

0

35

Tecumseh 30588A

Spool-Governor

$1.99

$

In Stock, only 4 left!

0

36

Tecumseh 28277

Washer-Flat

$1.99

$

In Stock, only 4 left!

0

37

Tecumseh 30589

Rod, Governor (Incl. No. 36)

$5.49

$

In Stock, only 1 left!

0

38

Tecumseh 32651

Governor Lever

$

$

Not available

39

Tecumseh 31335

Clamp-Lever, Governor

$1.99

$

In Stock, only 3 left!

0

40

Tecumseh 650548

Screw
(Superseded to 651018)

$1.99

$

In Stock, Qty 9

0

41

Tecumseh 9556

Plug-Pipe
(Superseded to 28534)

$1.99

$

In Stock, only 4 left!

0

42

Tecumseh 27247

Key Flywheel
(Superseded to 610961)

$1.49

$

In Stock, Qty 20+

0

45

Tecumseh 650489

Screw

$

$

Not available

46

Tecumseh 33554

Oil Fill Tube
(Superseded to 36443)

Note: Indicates items included in Gasket Set Part No. 33740.

$5.99

$

In Stock, Qty 11

0

47

Tecumseh 33016

Head Cylinder
(Superseded to 37675)

$41.99

$

In Stock, only 1 left!

0

48

Tecumseh 26073

Washer

$

$

Not available

49

Tecumseh 6021

Screw
(Superseded to 6021A)

$1.99

$

In Stock, only 3 left!

0

50

Tecumseh 650694

Screw Hex Hd. Cap
(Superseded to 650694A)

$3.49

$

In Stock, Qty 20+

0

51

Tecumseh 33636

Plug, Spark (J17LM or equiv.)

$5.49

$

In Stock, Qty 16

0

52

Tecumseh 27234

Gasket-Breather
(Superseded to 27234A)

Note: Indicates items included in Gasket Set Part No. 33740.

$5.99

$

In Stock, only 2 left!

0

53

Tecumseh 32755

Cover-Valve

$5.49

$

Usually ships in 3-12 days

0

55

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 4 left!

0

57

Tecumseh 650128

Screw

$5.49

$

In Stock, only 2 left!

0

58

Tecumseh 27275

51004 GIL ROTARY TI

$1.99

$

In Stock, Qty 7

0

59

Tecumseh 33751

Gasket, Intake
(Superseded to 33751A)

Note: Indicates items included in Gasket Set Part No. 33740.

$2.99

$

Usually ships in 3-12 days

0

60

Tecumseh 33739

Pipe, Intake

$25.99

$

Usually ships in 3-12 days

0

62

Tecumseh 650142

Screw, Fil. Slotted Hd.Sems

$1.99

$

Usually ships in 3-12 days

0

70

Tecumseh 33150

Brachet, Control

$1.99

$

In Stock, only 1 left!

0

71

Tecumseh 32924

Spring

$1.99

$

In Stock, only 3 left!

0

72

Tecumseh 650688

Screw, Hex Hd.

$3.99

$

Usually ships in 3-12 days

0

73

Tecumseh 31386

Spring, Governor

$4.49

$

In Stock, Qty 15

0

74

Tecumseh 33151

Link Governor Spring

$1.99

$

In Stock, only 3 left!

0

75

Tecumseh 33133

Link Governor

$1.99

$

Usually ships in 3-12 days

0

81

Tecumseh 32323

Washer-Thrust

$8.49

$

In Stock, only 1 left!

0

83

Tecumseh 26756

Gasket

Note: Indicates items included in Gasket Set Part No. 33740.

$2.99

$

In Stock, Qty 10

0

84

Tecumseh 6202

Screw
(Superseded to 6201)

$

$

Not available

85

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, Qty 5

0

86

Tecumseh 27272

Gasket
(Superseded to 27272A)

Note: Indicates items included in Gasket Set Part No. 33740.

$4.49

$

In Stock, Qty 20+

0

87

Tecumseh 31691

Bracket

$22.99

$

In Stock, only 1 left!

0

88

Tecumseh 28820

Screw (10-32 x 1/2)
(Superseded to 651081)

$4.49

$

Usually ships in 3-12 days

0

89

Tecumseh 30727

Element

$7.49

$

In Stock, only 3 left!

0

90

Tecumseh 31692

Body
(Superseded to 31715)

$21.99

$

In Stock, Qty 7

0

91

Tecumseh 650152

Screw

$2.49

$

In Stock, only 3 left!

0

92

Tecumseh 31752

Decal

$

$

Not available

94

Tecumseh 33155

Control Assy., Speed
(Superseded to 33155A)

$

$

Not available

95

Tecumseh 30200

Screw (10-24 x 9/16)

$1.49

$

In Stock, Qty 10

0

96

Tecumseh 27793

Conduit

$1.99

$

In Stock, only 2 left!

0

97

Tecumseh 28942

Screw (10-32 x 3/8)

$1.49

$

In Stock, only 3 left!

0

98

Tecumseh 33806

61718/GIL1605A/95-5
(Superseded to 33738D)

$

$

Not available

99

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

101

Tecumseh 32671

Tank Assy., Fuel (Incl. No. 102)

$

$

Not available

102

Tecumseh 410144B

Cap, Fuel
(Superseded to 33032)

$7.49

$

In Stock, only 1 left!

0

103

Tecumseh 29774

Line-Fuel (8.62)

$34.99

$

In Stock, Qty 6

0

104

Tecumseh 33754

Line, Fuel

$

$

Not available

105

Tecumseh 26460

Clamp-Line, Fuel

$1.49

$

In Stock, Qty 12

0

106

Tecumseh 650763

Washer-Spring
(Superseded to 650815)

$1.99

$

In Stock, Qty 10

0

107

Tecumseh 650607

Hex Nut

$1.99

$

In Stock, Qty 7

0

108

Tecumseh 33760

Dipstick Assy., Oil (Incl. No. 109)

$

$

Currently unavailable

109

Tecumseh 29985

O-Ring

$1.99

$

Usually ships in 3-12 days

0

110

Tecumseh 650562

Screw (10-32 x 1/2)

$1.99

$

In Stock, Qty 9

0

111

Tecumseh 33784

Tube Assy., Oil Fill

$

$

Currently unavailable

112

Tecumseh 30139

O-Ring

$1.99

$

In Stock, only 3 left!

0

113

Tecumseh 28670

Stud

$

$

Currently unavailable

114

Tecumseh 31345

IDENTIFICATION PLATE

$

$

Currently unavailable

115

Tecumseh 31865

480B GIL SNWTHWR O/
(Superseded to 36261)

$

$

Not available

116

Tecumseh 610683

SPOOL RETAINER (10-PK)

$5.10

$

In Stock, only 1 left!

0

118

Tecumseh 30590A

Washer-Flat

$1.99

$

In Stock, Qty 7

0

120

Tecumseh 33697

Muffler
(Superseded to 33697A)

$40.99

$

Usually ships in 3-12 days

0

121A

Tecumseh 33753

Plate-Lock
(Superseded to 37673)

$5.99

$

Usually ships in 3-12 days

0

122

Tecumseh 33731

Body Breather Tube
(Superseded to 34214B)

$

$

Not available

123

Tecumseh 33732

Valve Check
(Superseded to 34214B)

$

$

Not available

124

Tecumseh 33733

2000A37 WIZARD ROTA
(Superseded to 34214B)

$

$

Not available

125

Tecumseh 33734

Element-Breather

$1.99

$

In Stock, Qty 11

0

126

Tecumseh 33735

Gasket-Breather

Note: Indicates items included in Gasket Set Part No. 33740.

$1.99

$

Usually ships in 3-12 days

0

127

Tecumseh 33737

Cover Breather
(Superseded to 34214B)

$

$

Not available

128

Tecumseh 33736

Tube, Breather
(Superseded to 33886)

$

$

Not available

129

Tecumseh 650768

Screw, Hex Hd. w/Conical
(Superseded to 30200)

$1.49

$

In Stock, Qty 10

0

131

Tecumseh 590343

Rope Assy., Starter

$5.49

$

Usually ships in 3-12 days

0

132

Tecumseh 33807

61719/GIL1607A,VARI
(Superseded to 34788A)

$37.99

$

Usually ships in 3-12 days

0

133

Tecumseh 33670

Gasket-Exhaust
(Superseded to 35865)

Note: Indicates items included in Gasket Set Part No. 33740.

$2.49

$

In Stock, only 4 left!

0

135

Tecumseh 610881

Magneto

$

$

Currently unavailable

136

Tecumseh 631716

Carburetor (Incl. No. 83)
(Superseded to 631716A)

$

$

Not available

138

Tecumseh 33740

Gasket Set
(Superseded to 33740F)

$17.99

$

Usually ships in 3-12 days

0
