56022 - Toro 25" Premium Rear-Engine Riding Mower (SN: 005000001 - 005999999) (1975) FRAME ASSEMBLY Parts Diagram

25" Premium Rear-Engine Riding Mower

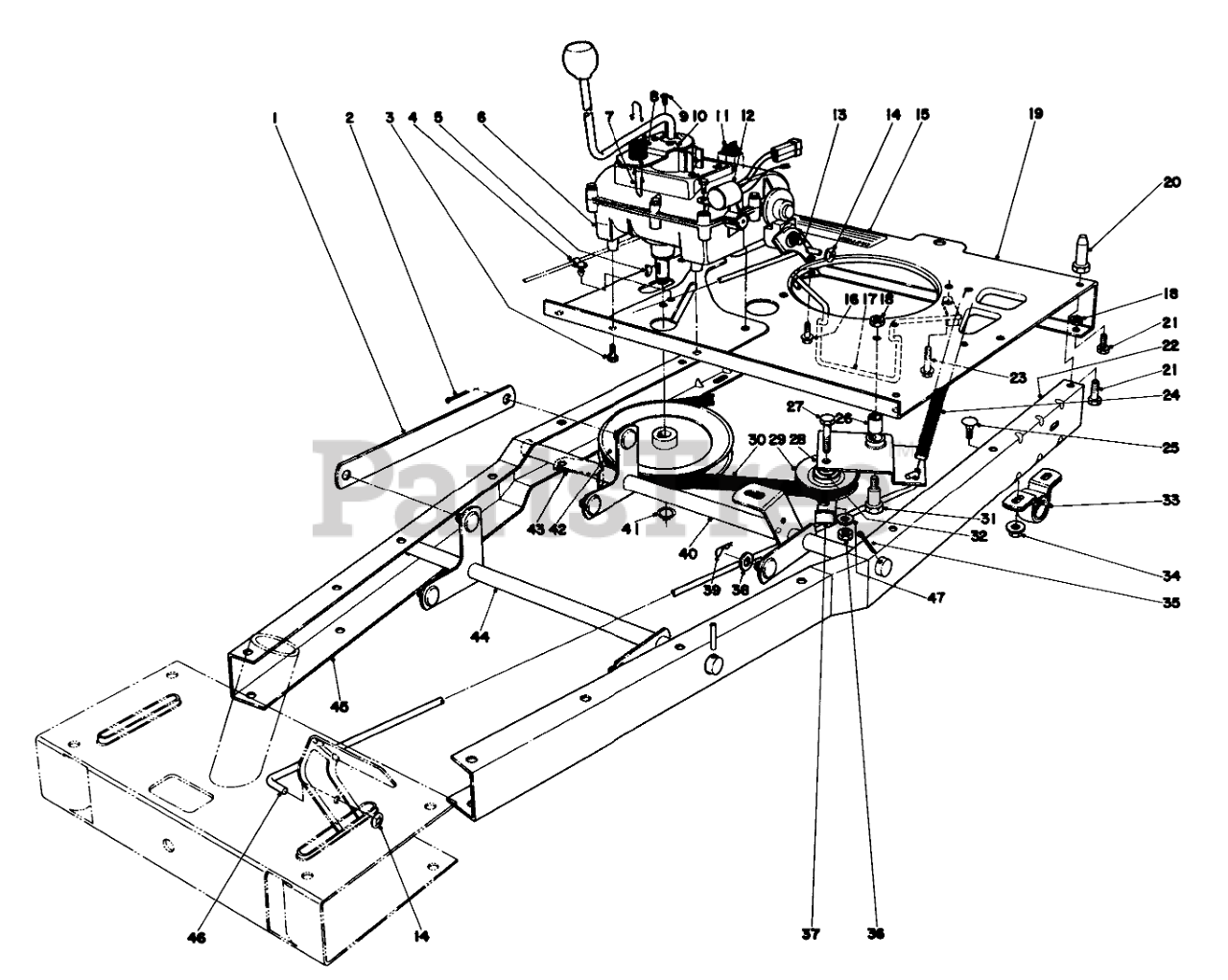

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 17-9530

Linkage-Height Adj.

$

$

Not available

2

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

3

Toro 32140-61

5/16-18 X 5/8 SEMS SC

$

$

Not available

4

Toro 194060

Cable Holder

$

$

Currently unavailable

5

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, only 1 left!

0

6

Toro 24-7360

Transmission 3 Speed

$

$

Currently unavailable

7

Toro 254040

Neutral Spring Wire

$

$

Currently unavailable

8

Toro 254030

Compression Spring

$

$

Currently unavailable

9

Toro 32104-81

SCREW-HEAD, PAN

$0.99

$

Usually ships in 3-6 days

0

10

Toro 25-4050

Neutral Bracket

$

$

Not available

11

Toro 218-474

Wire & Cable Tie

$

$

Currently unavailable

12

Toro 214970

Control Module

$

$

Currently unavailable

13

Toro 21-5130

Brake Return Spring

$

$

Not available

14

Toro 3290-363

PUSH ON SPEED NUT 1/4

$

$

Not available

15

Toro 19-5850

Decal

$

$

Not available

16

Toro 11-0590

SCREW-HWHTF
(Superseded to 32144-102)

$3.49

$

Usually ships in 3-6 days

0

17

Toro 24-6920

Belt Guide

$

$

Currently unavailable

18

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

19

Toro 23-9150

Plate-Engine Mounting

$

$

Currently unavailable

20

Toro 25-1530

PIN-MOUNTING, LOWER

$34.99

$

Usually ships in 3-6 days

0

21

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

22

Toro 18-8260

Frame Chanel, L.H.
(Superseded to 26-2640)

$

$

Not available

23

Toro 3214045

Screw

$

$

Currently unavailable

24

Toro 19-5340

Clutch Tension Spring

$

$

Not available

25

Toro 3231-30

SCREW-CARR

$4.99

$

In Stock, only 1 left!

0

26

Toro 256-172

BUSHING

$6.49

$

Usually ships in 3-6 days

0

27

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Toro 24-6680

Traction Idler (Incl. Ref. #26)

$

$

Not available

29

Toro 12-5820

PULLEY-IDLER

$29.99

$

In Stock, Qty 6

0

30

Toro 19-2650

V-BELT

$19.99

$

In Stock, only 1 left!

0

31

Toro 12-5830

CLUTCH PIVOT BOLT

$

$

Not available

32

Toro 3256-46

WASHER-FLAT

$7.99

$

Usually ships in 3-6 days

0

33

Toro 12-3340

PILLOW BLOCK

$

$

Not available

34

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

35

Toro 3272-23

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

36

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

37

Toro 12-9020

RETAINER-BELT

$

$

Not available

38

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

39

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

40

Toro 18-8220

Height Adjustment
(Superseded to 26-6960)

$

$

Not available

41

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, only 2 left!

0

42

Toro 74085

Pulley

$

$

Currently unavailable

43

Toro 17-2230

TRANS BELT RET B

$

$

Not available

44

Toro 17-9890

FRONT LIFT WA B

$

$

Not available

45

Toro 18-8250

Frame Channel R.H.

$

$

Not available

46

Toro 24-7560

Clutch Rod

$

$

Not available

47

Toro 325645

Washer

$

$

Currently unavailable
