56022 - Toro 25" Premium Rear-Engine Riding Mower (SN: 005000001 - 005999999) (1975) BODY AND SEAT ASSEMBLY Parts Diagram

25" Premium Rear-Engine Riding Mower

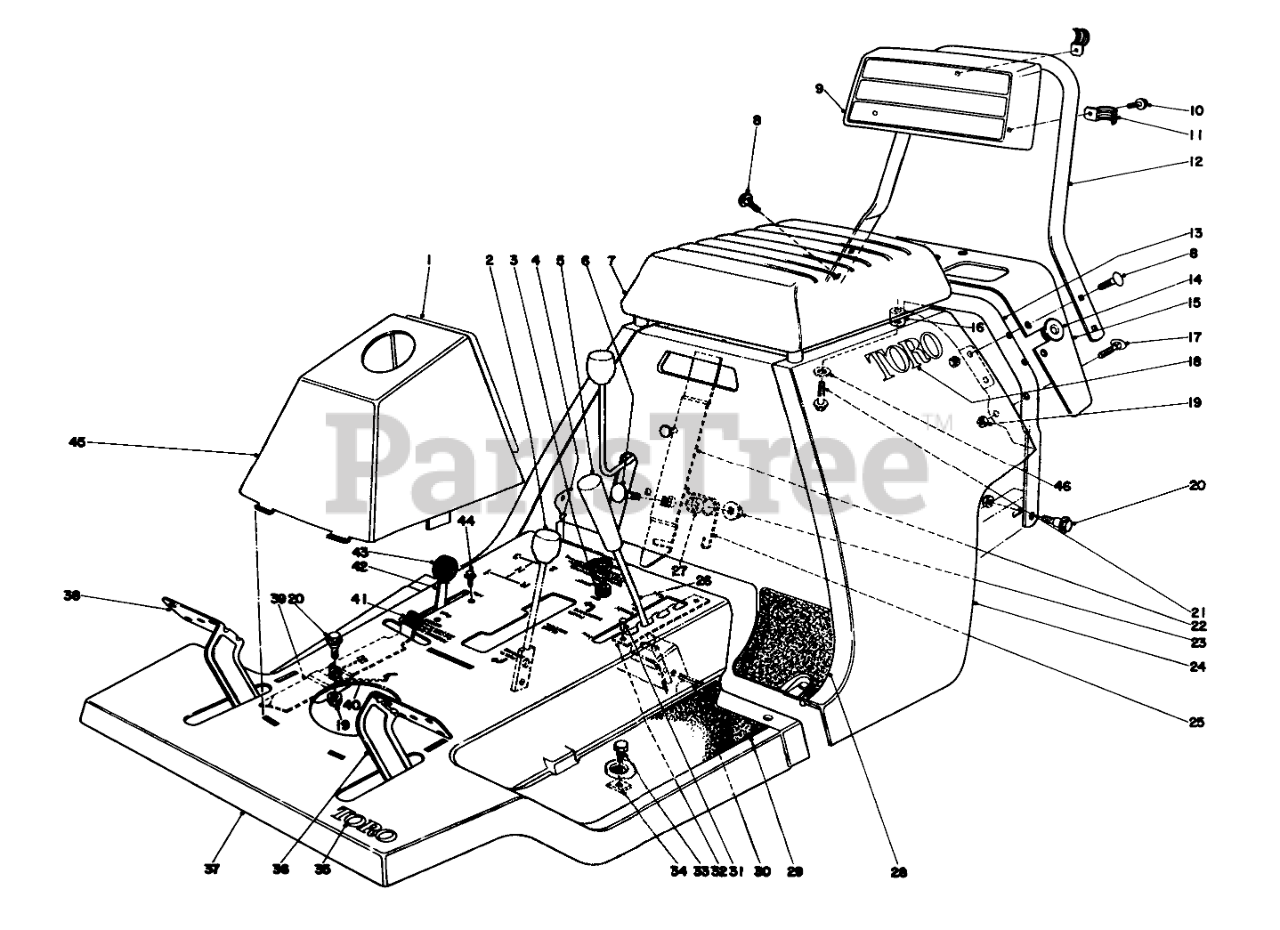

BODY AND SEAT ASSEMBLY Parts Diagram

  • Title

1

Toro 19-2020

Decal Tower

$

$

Not available

2

Toro 233-37

KNOB

$33.99

$

Usually ships in 3-6 days

0

3

Toro 19-2450

ON-OFF SWITCH 21-8-468

$

$

Not available

Toro 23-0660

SWITCH-STARTER

Note: Not illustrated

$23.99

$

In Stock, only 1 left!

0

4

Toro 218-412

Key
(Superseded to 62-7770)

$4.99

$

In Stock, only 1 left!

0

5

Toro 233-39

KNOB-CONTROL

$17.99

$

Usually ships in 3-6 days

0

6

Toro 3230-10

BOLT-CARR

$3.99

$

Usually ships in 3-6 days

0

7

Toro 12-5760

Seat

$

$

Not available

8

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

9

Toro 17-1360

Backrest

$

$

Not available

10

Toro 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

0

11

Toro 241240

Clamp Conduit

$

$

Currently unavailable

12

Toro 18-8200

Handle Upper

$

$

Not available

13

Toro 17-9990

Handle Lower

$

$

Not available

14

Toro 25-1520

Starting Ferrel

$

$

Not available

15

Toro 25-1630

Extension Rear Body

$

$

Not available

16

Toro 3-9026

Spacer

$

$

Currently unavailable

17

Toro 6-6330

HANDLE SCREW

$

$

Not available

18

Toro 12-9100

Decal
(Superseded to 20-4690)

$7.99

$

Usually ships in 3-6 days

0

19

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

20

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 5

0

21

Toro 3234-10

HEX FLANGE SCREW

$

$

Not available

22

Toro 19-2400

Handle Latch

$

$

Not available

23

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

24

Toro 19-2070

Rear Body

$

$

Not available

25

Toro 19-2390

Latch Return Spring

$

$

Not available

26

Toro 17-9630

Height of Cut Lever

$

$

Not available

27

Toro 19-2410

Spacer

$

$

Not available

28

Toro 21-6510

Heel Pad L.H.

$

$

Not available

Toro 21-6520

Heel Pad R.H.

Note: Not illustrated

$

$

Not available

29

Toro 21-6490

Foot Tread L.H.

$

$

Currently unavailable

Toro 21-6500

Foot Tread R.H.

Note: Not illustrated

$

$

Not available

30

Toro 3212145

Pin-Roll

$

$

Currently unavailable

31

Toro 3290-372

Rivet

$

$

Not available

32

Toro 17-9610

Height Adjustment Plate

$

$

Not available

33

Toro 32104-10

Capscrew
(Superseded to 32104-109)

$

$

Not available

34

Toro 3290-347

NUT-TINNERMAN

$

$

Not available

35

Toro 12-9140

DECAL

$

$

Currently unavailable

36

Toro 19-1860

Clutch Pedal

$

$

Not available

37

Toro 21-4680

Body Front (Incl. Ref. #31 & 32)

$

$

Not available

38

Toro 19-1850

Brake Pedal

$

$

Not available

39

Toro 19-1610

Parking Brake
(Superseded to 19-1610-03)

$

$

Not available

40

Toro 19-1970

SPRING-PARKING BRAKE

$

$

Not available

41

Toro 19-2200

TIP-PARKING BRAKE

$

$

Not available

42

Toro 21-4560

Throttle Control (Incl. Ref. #43)

$

$

Not available

43

Toro 233-35

KNOB

$9.99

$

Usually ships in 3-6 days

0

44

Toro 32104-94

8X1/2 SELF TAP SCREW

$

$

Not available

45

Toro 12-6290

Tower
(Superseded to 55-7103)

$

$

Not available

46

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
