56015 - Toro 25" Standard Rear-Engine Riding Mower (SN: 004000001 - 004999999) (1974) FRONT AXLE ASSEMBLY Parts Diagram

25" Standard Rear-Engine Riding Mower

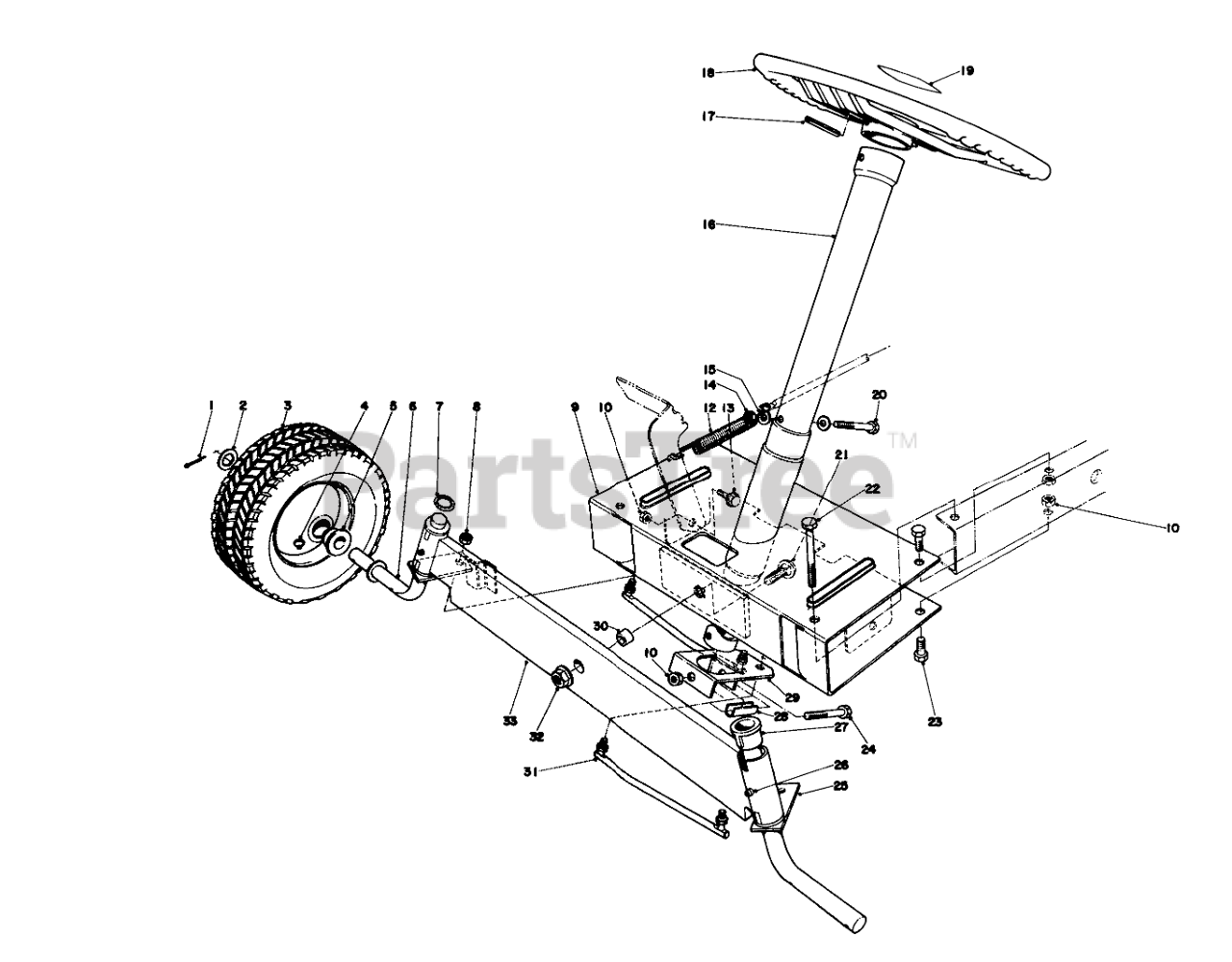

FRONT AXLE ASSEMBLY Parts Diagram

  • Title
1

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

2

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 15

0

3

Toro 20-3350

WHEEL & TIRE ASM

$

$

Not available

4

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

5

Toro 256-241

BUSHING

$

$

Not available

6

Toro 21-9880

Spindle R.H.

$

$

Currently unavailable

7

Toro 32151-40

RING-RETAINING

$7.49

$

In Stock, Qty 6

0

8

Toro 32146-4

NUT-LOCK NI

$

$

Not available

9

Toro 19-1660

Front Frame

$

$

Currently unavailable

10

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

12

Toro 19-7360

Brake Spring

$

$

Not available

13

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 5

0

14

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 20+

0

15

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 19-1550

Steering Tube

$

$

Currently unavailable

17

Toro 32121-10

PIN-ROLL

$8.99

$

Usually ships in 3-6 days

0

18

Toro 12-7540

Steering Wheel

$

$

Not available

19

Toro 19-2010

Decal

$

$

Not available

20

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Toro 3233-2

SCREW-CARR

$7.99

$

Usually ships in 3-6 days

0

22

Toro 322-14

SCREW-HH

$2.99

$

In Stock, Qty 8

0

23

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

24

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

25

Toro 21-9870

Spingle L.H.

$

$

Not available

26

Toro 302-49

GREASE FITTING

$4.49

$

Usually ships in 3-6 days

0

27

Toro 19-1890

BUSHING

$

$

Not available

28

Toro 19-1510

Spacer-Steering Tube

$

$

Not available

29

Toro 21-9840

Lever Steering

$

$

Not available

30

Toro 19-1520

FRONT AXLE SPACER

$

$

Not available

31

Toro 21-9860

TIE ROD ASM

$

$

Not available

32

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

33

Toro 19-1650

Front Axle

$

$

Not available
