56015 - Toro 25" Standard Rear-Engine Riding Mower (SN: 004000001 - 004999999) (1974) FRAME ASSEMBLY Parts Diagram

25" Standard Rear-Engine Riding Mower

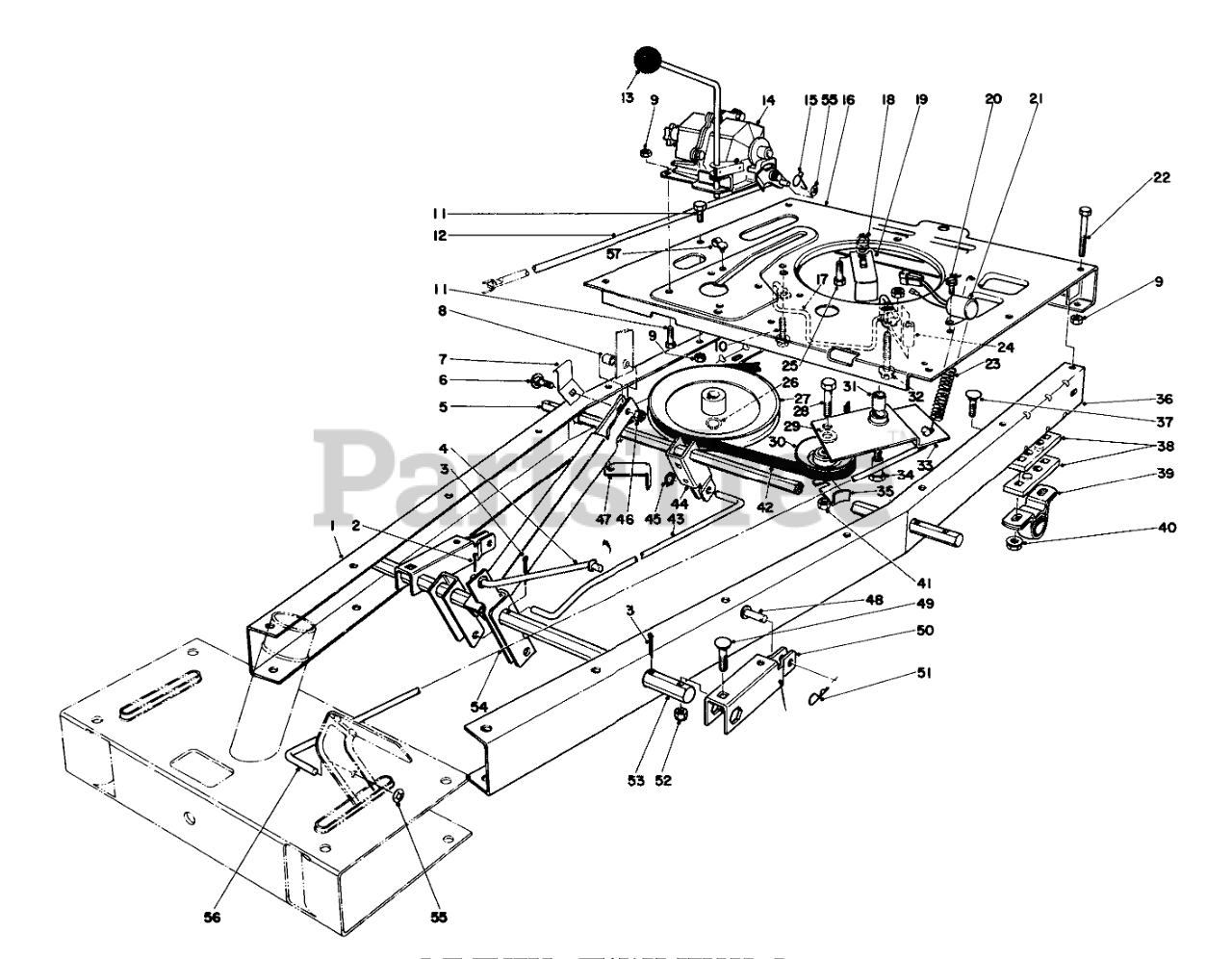

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 12-6000

Frame Channel R.H.

$

$

Currently unavailable

2

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

3

Toro 3272-16

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

4

Toro 12-8830

Deck Engagement Rod

$

$

Currently unavailable

5

Toro 12-5690

Hex Shaft-Rear Lift

$

$

Not available

6

Toro 3229-2

SCREW-CARR

$3.49

$

Usually ships in 3-6 days

0

7

Toro 12-7530

Flat Spring

$

$

Not available

8

Toro 17-0170

Spacer

$

$

Currently unavailable

9

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

10

Toro 11-0590

SCREW-HWHTF
(Superseded to 32144-102)

$3.49

$

Usually ships in 3-6 days

0

11

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

12

Toro 19-1460

Brake Rod

$

$

Not available

13

Toro 233-22

KNOB-CONTROL

$25.99

$

Usually ships in 3-6 days

0

14

Toro 22-5840

Transmission

$

$

Not available

15

Toro 21-5130

Brake Return Spring

$

$

Not available

16

Toro 19-1910

Engine Mounting Plate

$

$

Currently unavailable

17

Toro 19-1790

Engine Belt Guide

$

$

Not available

18

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

19

Toro 17-2240

Belt Retainer

$

$

Not available

20

Toro 32104-77

10-16 X 3/8 THDG SCREW

$

$

Not available

21

Toro 19-2420

Control Module

$

$

Not available

22

Toro 322-14

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

23

Toro 12-8810

SPRING-EXTENSION

$28.99

$

Usually ships in 3-6 days

0

24

Toro 5-1746

Spacer

$

$

Currently unavailable

25

Toro 32140-96

Sems Screw

$

$

Not available

26

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, only 2 left!

0

27

Toro 22-6010

Pulley

$

$

Currently unavailable

28

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

29

Toro 5-0737

Washer

$

$

Not available

30

Toro 12-5820

PULLEY-IDLER

$29.99

$

In Stock, Qty 6

0

31

Toro 256-172

BUSHING

$6.49

$

Usually ships in 3-6 days

0

32

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$18.99

$

Usually ships in 3-6 days

0

33

Toro 12-5770

Traction Idler (Incl. Ref. No.31)

$

$

Currently unavailable

34

Toro 12-5830

CLUTCH PIVOT BOLT

$

$

Not available

35

Toro 12-9020

RETAINER-BELT

$

$

Not available

36

Toro 12-5990

Channel Frame L.H.

$

$

Currently unavailable

37

Toro 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

38

Toro 5-9689

Pillow Block Spacer

$

$

Not available

39

Toro 12-3340

PILLOW BLOCK

$

$

Not available

40

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

41

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

42

Toro 12-6220

TRACT DRIVE V-BELT

$162.99

$

Usually ships in 3-6 days

0

43

Toro 12-6090

Lift Transfer Rod

$

$

Currently unavailable

44

Toro 12-5650

Lift Arm Transfer

$

$

Currently unavailable

45

Toro 32120-94

Grip Ring

$

$

Currently unavailable

46

Toro 32153-4

NUT-HEX, SIDE DEFORM

$1.49

$

Usually ships in 3-6 days

0

47

Toro 17-2230

TRANS BELT RET B

$

$

Not available

48

Toro 283-30

PIN-CLEVIS

$0.99

$

Usually ships in 3-6 days

0

49

Toro 3229-3

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

50

Toro 12-5800

Deck Lift Arm

$

$

Not available

51

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

52

Toro 321524

Nut

$

$

Currently unavailable

53

Toro 17-1070

Front Lift

$

$

Currently unavailable

54

Toro 12-8910

Arm Lever

$

$

Not available

55

Toro 3290-363

PUSH ON SPEED NUT 1/4

$

$

Not available

56

Toro 19-1450

Clutch Rod

$

$

Not available

57

Toro 19-4060

Cable Holder

$

$

Currently unavailable
